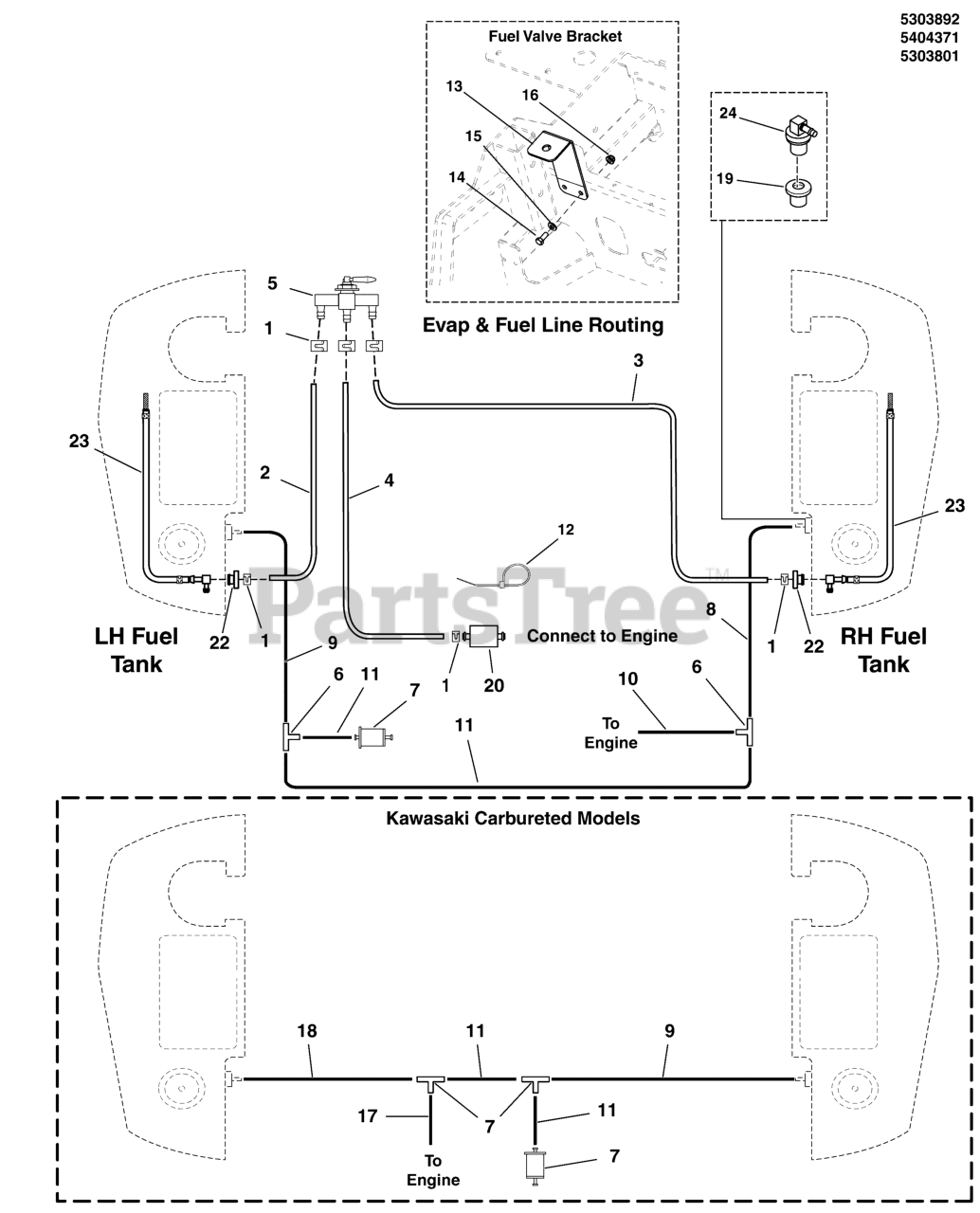

IS 3200Z (5901576) - Ferris IS3200Z Series 72" Zero-Turn Mower, 37hp Briggs & Stratton Fuel Supply Hose, Tank Replacement Parts, and EVAP Group - S/N: 2017739972 & Below Parts Diagram

IS3200Z Series 72" Zero-Turn Mower, 37hp Briggs & Stratton

Fuel Supply Hose, Tank Replacement Parts, and EVAP Group - S/N: 2017739972 & Below Parts Diagram

  • Title

1

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

2

Ferris 5050831X14P5

HOSE, 1/4" FUEL, 14.50"
(Superseded to 5050831X14P5FS)

$12.99

$

Usually ships in 2-12 days

0

3

Ferris 5050831X28P5

HOSE, 1/4" FUEL, 28.50"
(Superseded to 5050831X28P5FS)

$14.99

$

Usually ships in 2-12 days

0

4

Ferris 5050831X12P5

HOSE, 1/4" FUEL, 12.50"
(Superseded to 5050831X12P5FS)

$5.49

$

Usually ships in 2-12 days

0

5

Ferris 5023358

VALVE, FUEL STRAIGHT, OUTLET
(Superseded to 5023358SM)

$48.99

$

In Stock, Qty 9

0

6

Ferris 5103062

FITTING, 3/16" TEE, BARB TYPE, HDPE
(Superseded to 5103062YP)

$10.99

$

In Stock, only 2 left!

0

7

Ferris 80025019

FILTER, FUEL
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

8

Ferris 7700552X18

HOSE, VAPOR, 5MM ID, 18.00 LG
(Superseded to 7700552X18FS)

Note: (Briggs & Stratton Models)

$4.49

$

In Stock, only 3 left!

0

9

Ferris 7700552X28P5

HOSE, VAPOR, 5MM ID, 28.50 LG

$7.49

$

Usually ships in 2-12 days

0

10

Ferris 7700552X12

HOSE, VAPOR, 5MM ID, 12.00 LG
(Superseded to 7700552X12YP)

Note: (Briggs & Stratton Models)

$5.49

$

In Stock, only 2 left!

0

11

Ferris 7700552X3

HOSE, VAPOR, 5MM ID, 3.00 LG
(Superseded to 7700552X3FS)

$2.99

$

Usually ships in 2-12 days

0

12

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

13

Ferris 5412704A

BRACKET, FUEL VALVE, IS2100 - BLK
(Superseded to 5412704AYP)

$17.99

$

Usually ships in 2-12 days

0

14

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 7700552X33

HOSE, VAPOR, 5MM ID, 33.00 LG
(Superseded to 7700552X33YP)

Note: (Kawasaki Models)

$13.99

$

In Stock, only 3 left!

0

18

Ferris 7700552X14

HOSE, VAPOR, 5MM ID, 14.00 LG
(Superseded to 7700552X14FS)

Note: (Kawasaki Models)

$4.49

$

Usually ships in 2-12 days

0

19

Ferris 209043

GROMMET (SV)
(Superseded to 799624)

$8.99

$

In Stock, Qty 15

0

20

Ferris 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

$12.99

$

In Stock, Qty 14

0

22

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

23

Ferris 5101144

PICKUP TUBE ASSEMBLY, FUEL LINE (SV)

$33.99

$

Usually ships in 2-12 days

0

24

Ferris 770046

REMOTE VENT ASSEMBLY

$16.99

$

In Stock, only 1 left!

0
