IS 3200Z (5901574) - Ferris IS3200Z Series 72" Zero-Turn Mower, 32hp Briggs & Stratton 72" Mower Deck Group - Housing, Covers, Spindles & Blades (2 Belt System) Parts Diagram

IS3200Z Series 72" Zero-Turn Mower, 32hp Briggs & Stratton

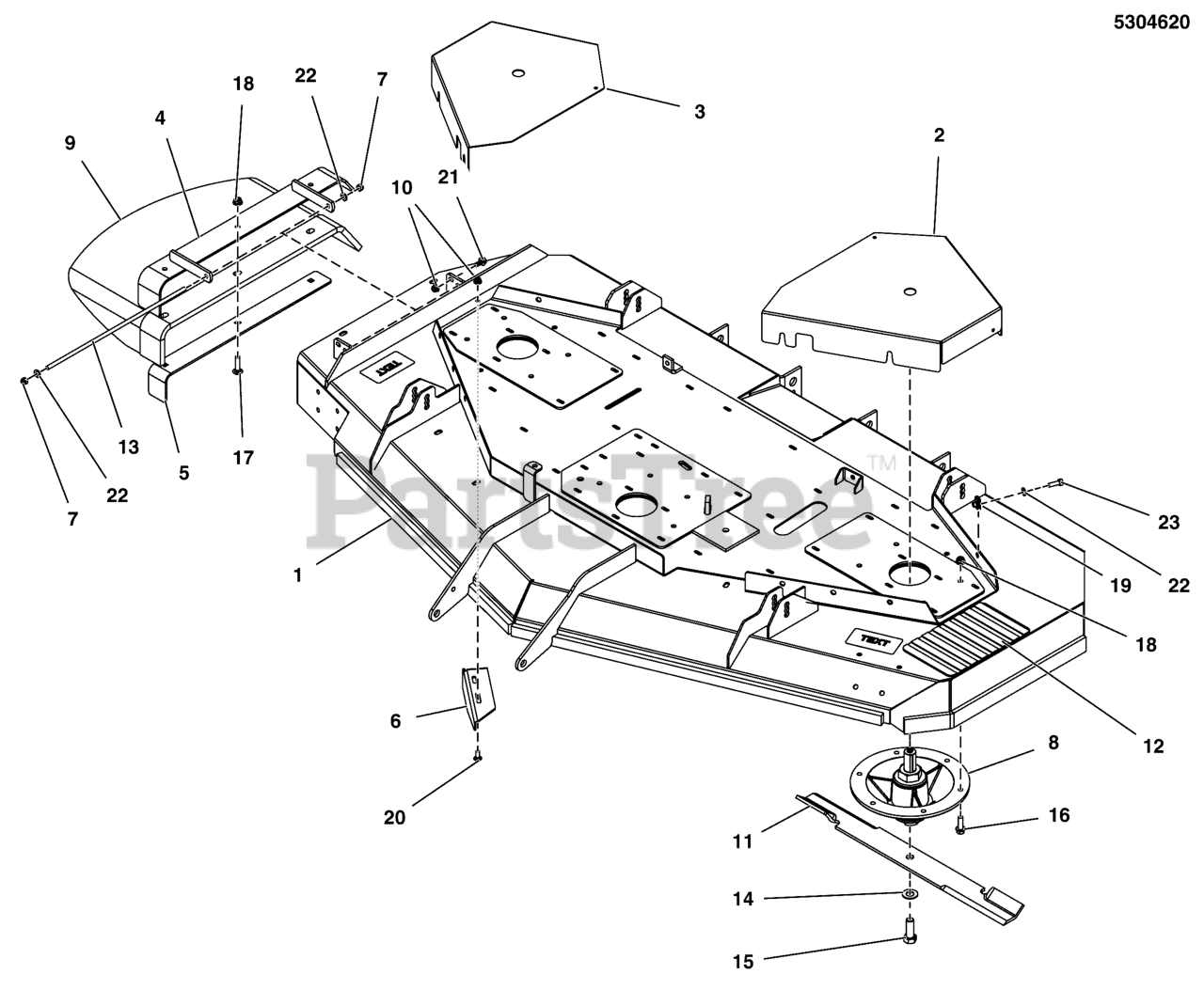

72" Mower Deck Group - Housing, Covers, Spindles & Blades (2 Belt System) Parts Diagram

  • Title

1

Ferris 5600979

DECK SHELL W/DECALS, 72, 3200Z (5415350B)

Note: (Domestic Models - S/N: 2017954955 & Below)

$3248.99

$

Usually ships in 2-12 days

0

1

Ferris 5601127

DECK SHELL W/DECALS, 72-3200E (5415350B)

Note: (Export Models - S/N: 2017954955 & Below)

$

$

Currently unavailable

1

Ferris 5601123

DECK SHELL W/DECALS, 3200-72 (5417007B)

Note: (Domestic Models - S/N: 2017954956 & Above)(Refer to Note: *)

$3248.99

$

Usually ships in 2-12 days

0

1

Ferris 5601124

DECK SHELL W/DECALS, 3200-72E (5417007B)

Note: (Export Models - S/N: 2017954956 & Above)(Refer to Note: *)

$

$

Currently unavailable

2

Ferris 5416044B

GUARD,MOWER DECK,LH,72 2-BELT 3200 - RED
(Superseded to 5416044BFS)

$31.99

$

Usually ships in 2-12 days

0

3

Ferris 5416043B

GUARD,MOWER DECK,RH,72 2-BELT 3200 - RED
(Superseded to 5416043BFS)

$24.99

$

Usually ships in 2-12 days

0

4

Ferris 84008171

MOUNT

$136.99

$

Usually ships in 2-12 days

0

5

Ferris 5413385A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

$28.99

$

In Stock, Qty 5

0

6

Ferris 5407876A

PLATE, DEFLECTOR, 72 - BLK
(Superseded to 5407876AA)

$22.99

$

Usually ships in 2-12 days

0

7

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

8

Ferris 84003242

SPINDLE ASSEMBLY

$351.99

$

In Stock, Qty 5

0

9

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

Usually ships in 2-12 days

0

10

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5102227S

BLADE, 25 X 25 X 2.50, HIGH LIFT (SET OF 3)

Note: (SET OF THREE BLADES)

$110.99

$

In Stock, only 2 left!

0

12

Ferris 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

13

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

14

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

15

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolts to 120 ft-lbs (163 Nm)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

Note: (Torque spindle mounting bolts to 30 ft-lbs (41 Nm)

$2.99

$

Usually ships in 2-12 days

0

17

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

19

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

20

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

21

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

22

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0
