IS 3200Z (5901414) - Ferris IS3200Z Series 61" Zero-Turn Mower, 36hp Briggs & Stratton Rear Suspension Group Parts Diagram

IS3200Z Series 61" Zero-Turn Mower, 36hp Briggs & Stratton

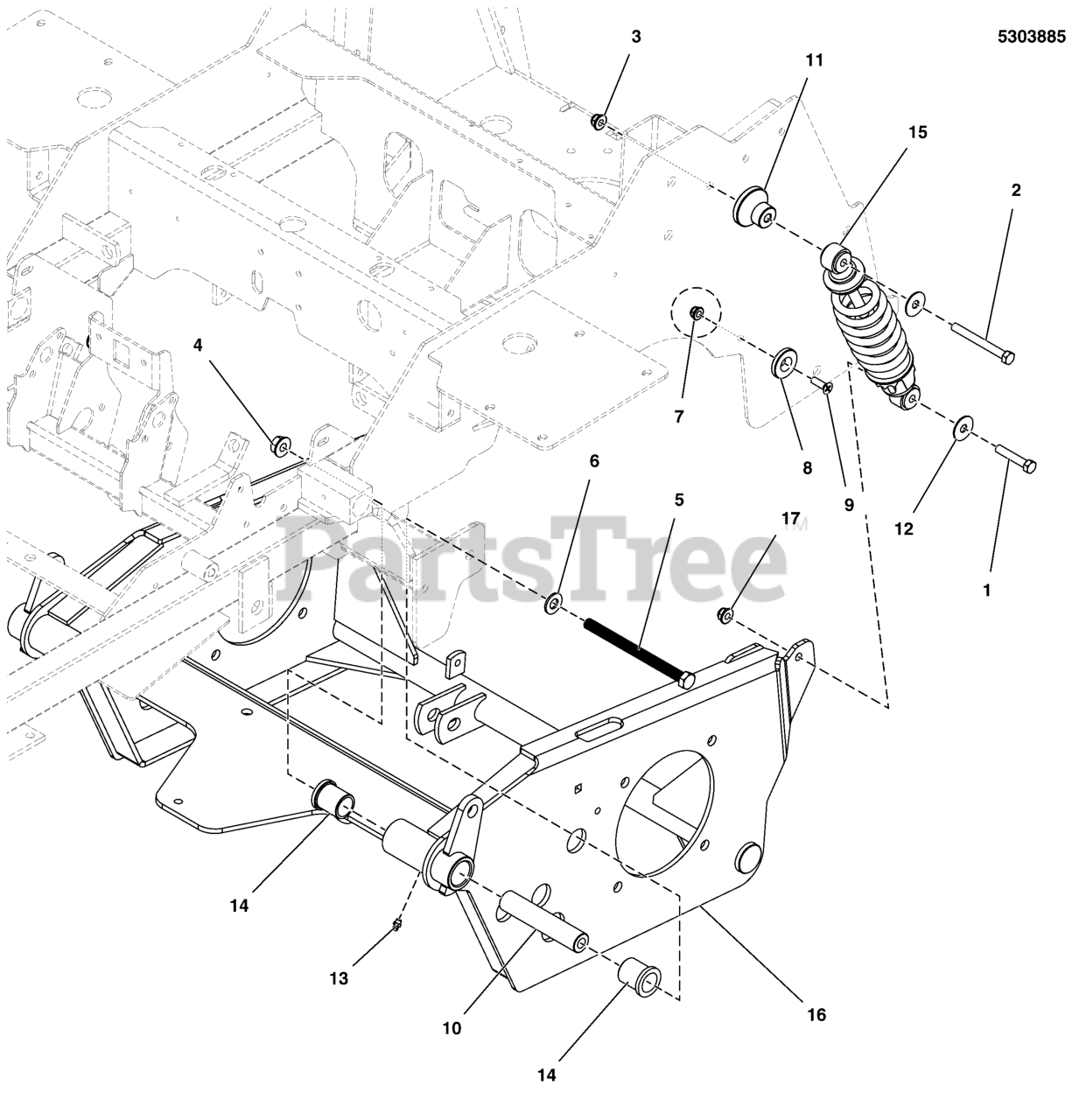

Rear Suspension Group Parts Diagram

  • Title

1

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

Usually ships in 2-12 days

0

2

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

3

Ferris 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

4

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

5

Ferris 5025488X52

BOLT, 1/2-13 X 6-1/2 GD8, YZ
(Superseded to 5025488X52YP)

$8.49

$

Usually ships in 2-12 days

0

6

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

7

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5102701

SPACER, .34 X 1.54 X .25, PL
(Superseded to 5102701YP)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5025594

SCREW, 5/16-18X1, PHILLIPS HD. BZ
(Superseded to 5025594YP)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5100194

SPACER, .52 X 1.00 X 5.00
(Superseded to 5100194SM)

$22.99

$

Usually ships in 2-12 days

0

11

Ferris 5104704

SPACER, .39 X 2.00 X 1.35, PM
(Superseded to 5104704YP)

$12.99

$

Usually ships in 2-12 days

0

12

Ferris 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

13

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

14

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

15

Ferris 5104060

SHOCK / SPRING ASSEMBLY, OE22376
(Superseded to 5104060YP)

$180.99

$

Usually ships in 2-12 days

0

16

Ferris 84007759

CRADLE, Suspension

$1852.99

$

Usually ships in 2-12 days

0

17

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0
