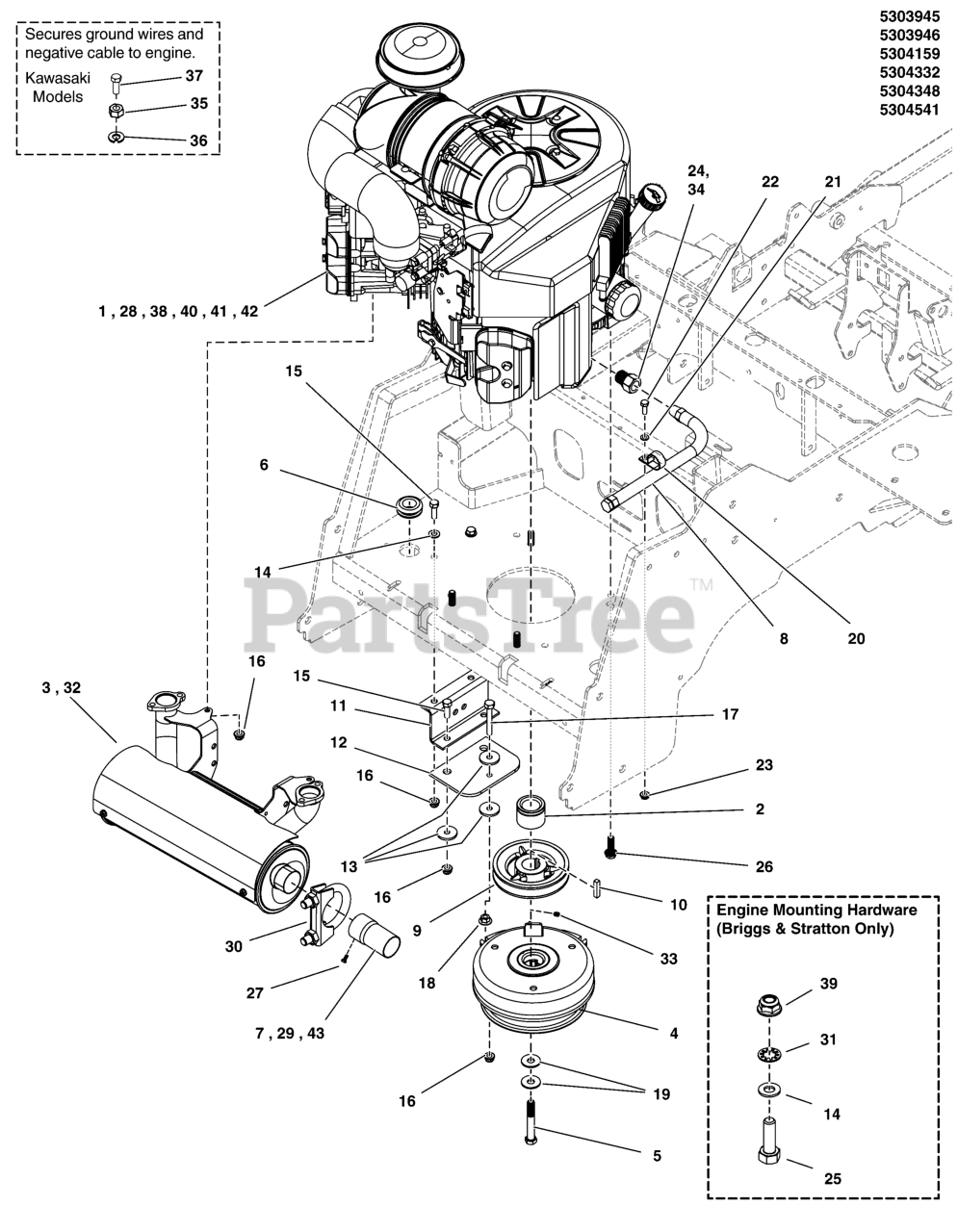

IS 3200Z (5901359) - Ferris IS3200Z Series Zero-Turn Mower, 37hp Briggs & Stratton Engine & PTO Group Parts Diagram

IS3200Z Series Zero-Turn Mower, 37hp Briggs & Stratton

Engine & PTO Group Parts Diagram

  • Title

1

Ferris FX1000V-AS14-R

ENGINE, KAWA, DFI

Note: (Kawasaki DFI Models Only)

$

$

Currently unavailable

2

Ferris 5100926

SPACER, 1.13 X 1.75 X 1.35, CZ
(Superseded to 5100926YP)

$27.99

$

In Stock, only 1 left!

0

3

Ferris 5101336

MUFFLER 37 HP KAWASAKI
(Superseded to 5105064FS)

Note: (Kawasaki Models Only) (Use 5025355 - Qty: 4 to mount muffler to engine.)

$237.99

$

In Stock, only 1 left!

0

4

Ferris 5101780

CLUTCH, WARNER, 250 ft lbs - 1.13"

$586.99

$

Usually ships in 2-12 days

0

5

Ferris 5103300

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4, GD 8
(Superseded to 5103300YP)

$5.99

$

In Stock, only 1 left!

0

6

Ferris 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

7

Ferris 5100969

EXTENSION, TAILPIPE, 3"

Note: (Kawasaki Models Only)

$

$

Currently unavailable

8

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

9

Ferris 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

10

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

11

Ferris 5410367A

ANCHOR, CLUTCH, IS600-IS700 - BLK
(Superseded to 5410367AYP)

$17.99

$

In Stock, only 1 left!

0

12

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

13

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

14

Ferris 5025155

WASHER, 5/16" SAE

Note: (Qty: 3 Kawasaki Models Only)

$

$

Currently unavailable

15

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

16

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

18

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

19

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

20

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

21

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

23

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

24

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

Note: (Kawasaki Models Only)

$15.99

$

Usually ships in 2-12 days

0

25

Ferris 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

Note: (B&S Models Only)

$4.49

$

Usually ships in 2-12 days

0

26

Ferris 5025532

BOLT, HEX FLG, SER, GD5 3/8-16 X 1-1/4" PACH CZ
(Superseded to 84003591)

Note: (Kawasaki Models Only)

$3.49

$

In Stock, only 4 left!

0

27

Ferris 5025470

SCREW, SELF-TAP, #8-32 X 3/8. WASH HEX, CZ
(Superseded to 5025470YP)

Note: (Kawasaki & B&S 49E877 Models Only)

$3.49

$

In Stock, only 2 left!

0

28

Ferris 613777-0166-G1

ENGINE, B&S, VANGUARD

Note: (B&S Carbureted 613777 Models)

$

$

Currently unavailable

29

Ferris 5104512

TAIL PIPE EXTENTION, 1.78"ID X 5" LG
(Superseded to 5104512FS)

Note: (B&S Models Only)

$27.99

$

Usually ships in 2-12 days

0

30

Ferris 5104512X1

CLAMP, TAILPIPE, 1-7/8"
(Superseded to 84003195)

Note: (B&S Models Only)

$11.99

$

Usually ships in 2-12 days

0

31

Ferris 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

Note: (Qty: 1 Kawasaki Models Only)

$3.99

$

In Stock, only 1 left!

0

32

Ferris 843906

MUFFLER (Purchase from Engine Manufacturer)

Note: (B&S Carbureted Models Only)

$

$

Not available

33

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

Note: (SV)

$3.49

$

In Stock, Qty 12

0

34

Ferris 5100366

METRIC ADAPTER, M14-1.5" TO 3/8 NPTF
(Superseded to 5100366SM)

Note: (B&S Models Only)

$13.99

$

Usually ships in 2-12 days

0

35

Ferris 5025536

NUT, HEX, M8-1.25, CZ, GD 8.8
(Superseded to 5025536YP)

Note: (Kawasaki Models Only)

$3.49

$

Usually ships in 2-12 days

0

36

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

Note: (Kawasaki Models Only)

$3.99

$

Usually ships in 2-12 days

0

37

Ferris 5025249

BOLT, M8-1.25 X 20 MM GD 8.8
(Superseded to 5025249YP)

Note: (Kawasaki Models Only)

$2.99

$

Usually ships in 2-12 days

0

38

ENGINE, Briggs & Stratton, 61E877-0008-J1 / 61E877-0005-J1

Note: (B&S 61E877 EFI Models Only)

$

$

Not available

39

Ferris 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

Note: (B&S Models Only)

$3.99

$

In Stock, only 2 left!

0

40

Ferris 543777-2120-J1

ENGINE, 32, B&S, 543777-2120-J1

Note: (B&S Carbureated 543777 Models)

$

$

Currently unavailable

41

Ferris FX1000V

ENGINE, 35, KAWASAKI

Note: (Kawasaki Carbureated Models Only)

$

$

Currently unavailable

42

Ferris 49E877-0001-G1

ENGINE, 28HP BRIGGS VANGUARD, EFI

Note: (B&S 49E877 EFI Models Only)

$

$

Not available

43

Ferris 5104348

EXTENSION, TAILPIPE, 3" - BLACK
(Superseded to 5104348YP)

Note: (B&S 49E877 EFI Models Only)

$14.99

$

Usually ships in 2-12 days

0
