IS 3100Z (5901220) - Ferris IS3100Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton Instrument Control Panel Group Parts Diagram

IS3100Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton

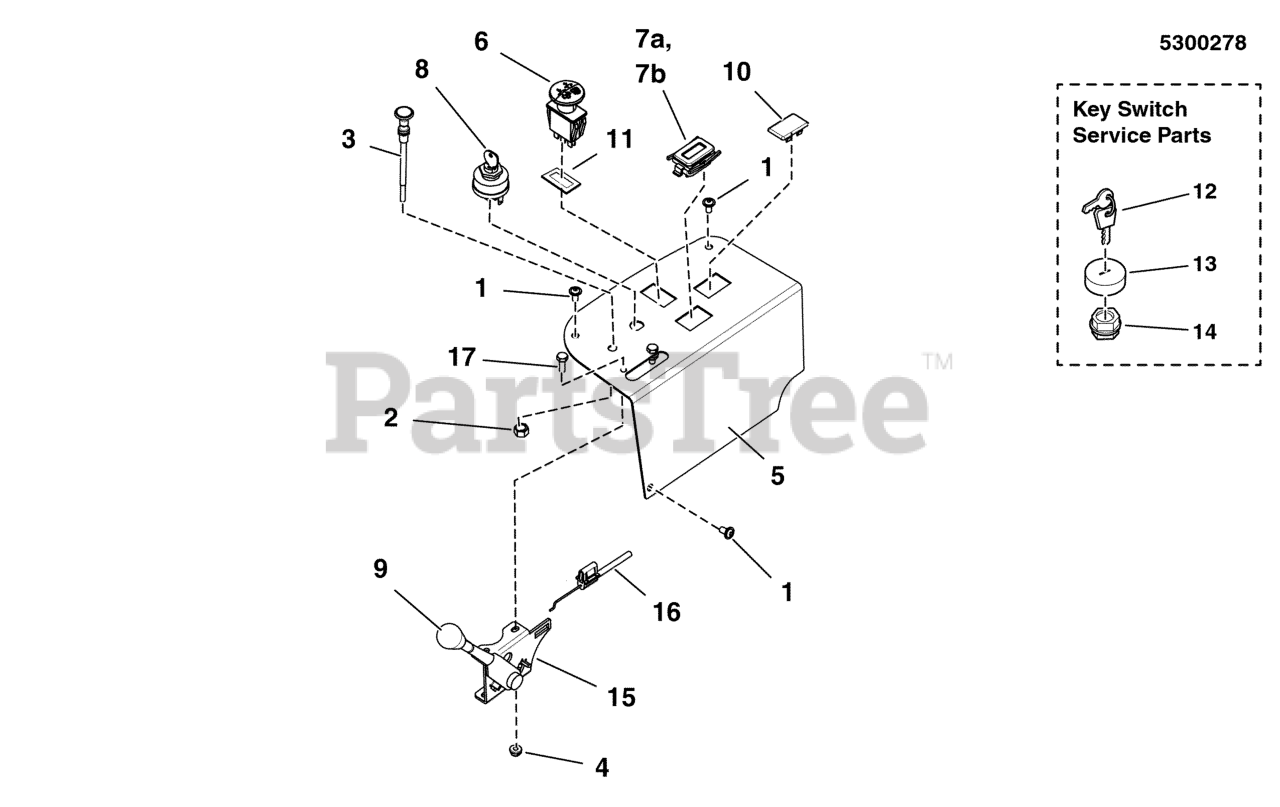

Instrument Control Panel Group Parts Diagram

  • Title

1

Ferris 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

In Stock, Qty 15

0

2

Ferris 5025035

NUT, 3/8-24 HEX (SV)
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5047779

CABLE, CHOKE CONTROL, 51" (Z)
(Superseded to 5047779SM)

Note: (Kawasaki / Briggs & Stratton Models)

$52.99

$

In Stock, only 4 left!

0

4

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5411933A

PANEL, Control - Black
(Superseded to 5411933AAFS)

$32.99

$

Usually ships in 2-12 days

0

6

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

7a

HOUR METER, ASSEMBLE

Note: (S/N: 2015551938 & Above)(Refer to Note: *)

$

$

Not available

7b

Ferris 5102417

HOUR METER

Note: (S/N: 2015551937 & Below)

$64.99

$

Usually ships in 2-12 days

0

8

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 3 left!

0

9

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$10.99

$

In Stock, only 1 left!

0

10

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

11

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

12

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

13

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

14

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

15

Ferris 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

$48.99

$

In Stock, only 1 left!

0

16

Ferris 5101072

CABLE, THROTTLE, 52"
(Superseded to 5101072FS)

$27.99

$

In Stock, only 1 left!

0

17

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0
