IS 3100Z (5901220) - Ferris IS3100Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton 61" iCD Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

IS3100Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton

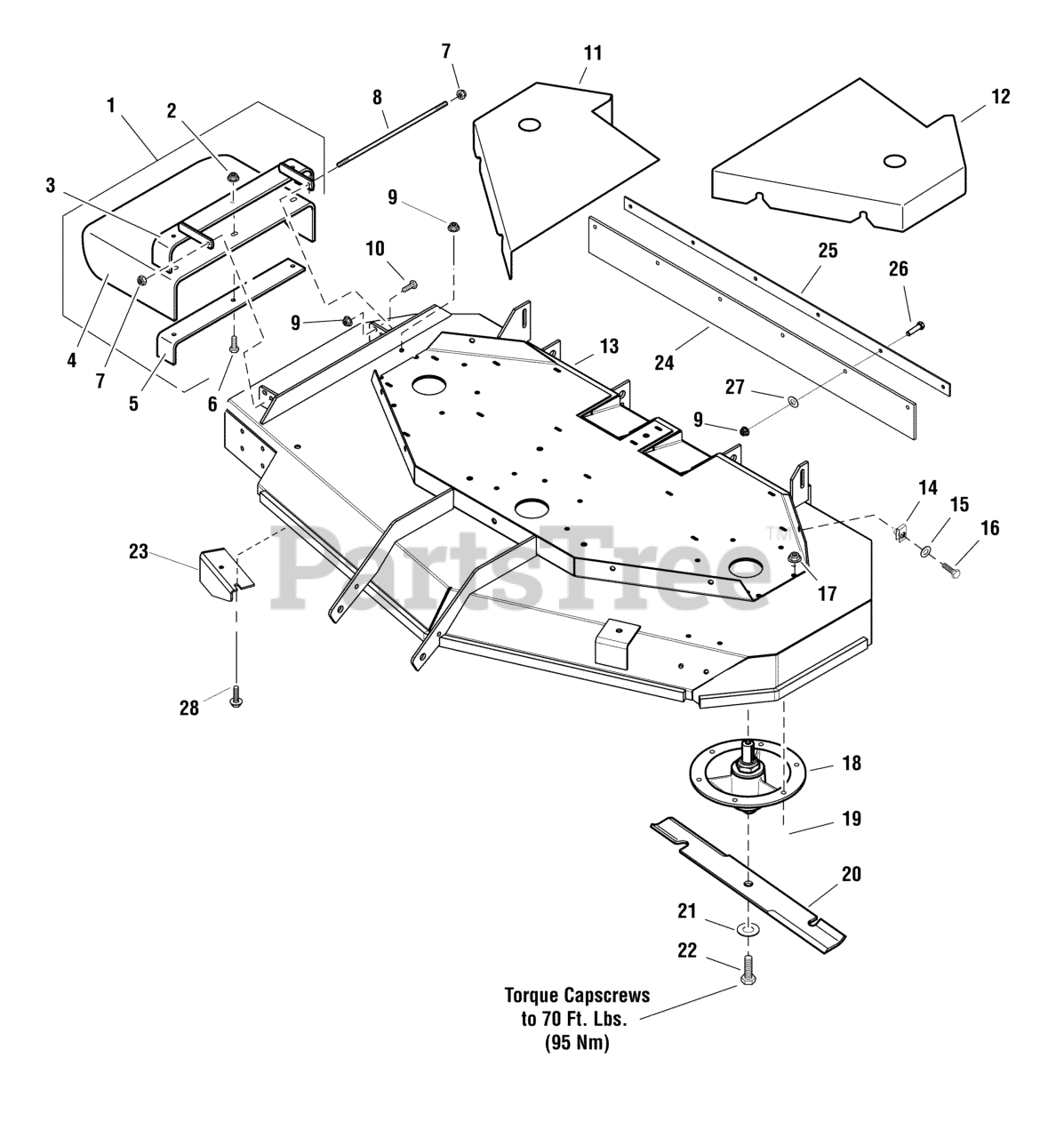

61" iCD Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

PURCHASE INDIVIDUAL REPLACEMENT PARTS

Note: (Includes Ref No. 2 - 6)

$

$

Not available

2

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

3

Ferris 5404716A

WELD, FRAME CHUTE, 61 - BLK
(Superseded to 5404716AYP)

$100.99

$

Usually ships in 2-12 days

0

4

Ferris 5404834

CHUTE, DISCHARGE, BEND RUBBER (SV)

$

$

Currently unavailable

5

Ferris 5408018A

SUPPORT, DISCHARGE CHUTE, 61/72 - BLK
(Superseded to 5408018AFS)

$22.99

$

Usually ships in 2-12 days

0

6

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

7

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

8

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

9

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

11

Ferris 5061450B

SPINDLE COVER - RH

$67.99

$

In Stock, only 1 left!

0

12

Ferris 5061451B

GUARD, 61, LH - RED

$67.99

$

In Stock, only 1 left!

0

13

Ferris 5600293

DECK SHELL W/DECALS, 61 (5407544B)

Note: (USA Models)

$2792.99

$

Usually ships in 2-12 days

0

13

Ferris 5601066

DECK SHELL W/DECALS,3100-61,EXP,5407544B

Note: (Export Models)

$

$

Currently unavailable

14

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

17

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

18

Ferris 84007984

SPINDLE ASSEMBLY

Note: (S/N: 2017458254 and below)

$296.99

$

In Stock, only 1 left!

0

18

Ferris 84003242

SPINDLE ASSEMBLY

Note: (S/N: 2017458255 and above)

$351.99

$

In Stock, Qty 5

0

19

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

20

Ferris 5101755S

BLADE SET, 61 DECK (3)

Note: (SV)(Set of 3 blades)

$

$

Not available

21

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

22

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

24

Ferris 5102037

FLAP, STRIPER, 61 DECK, IS3100 S200X
(Superseded to 5102037YP)

$75.99

$

Usually ships in 2-12 days

0

25

Ferris 5405322A

PLATE, SUPPORT - BLK
(Superseded to 5405322AYP)

$39.99

$

Usually ships in 2-12 days

0

26

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

27

Ferris 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

28

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0
