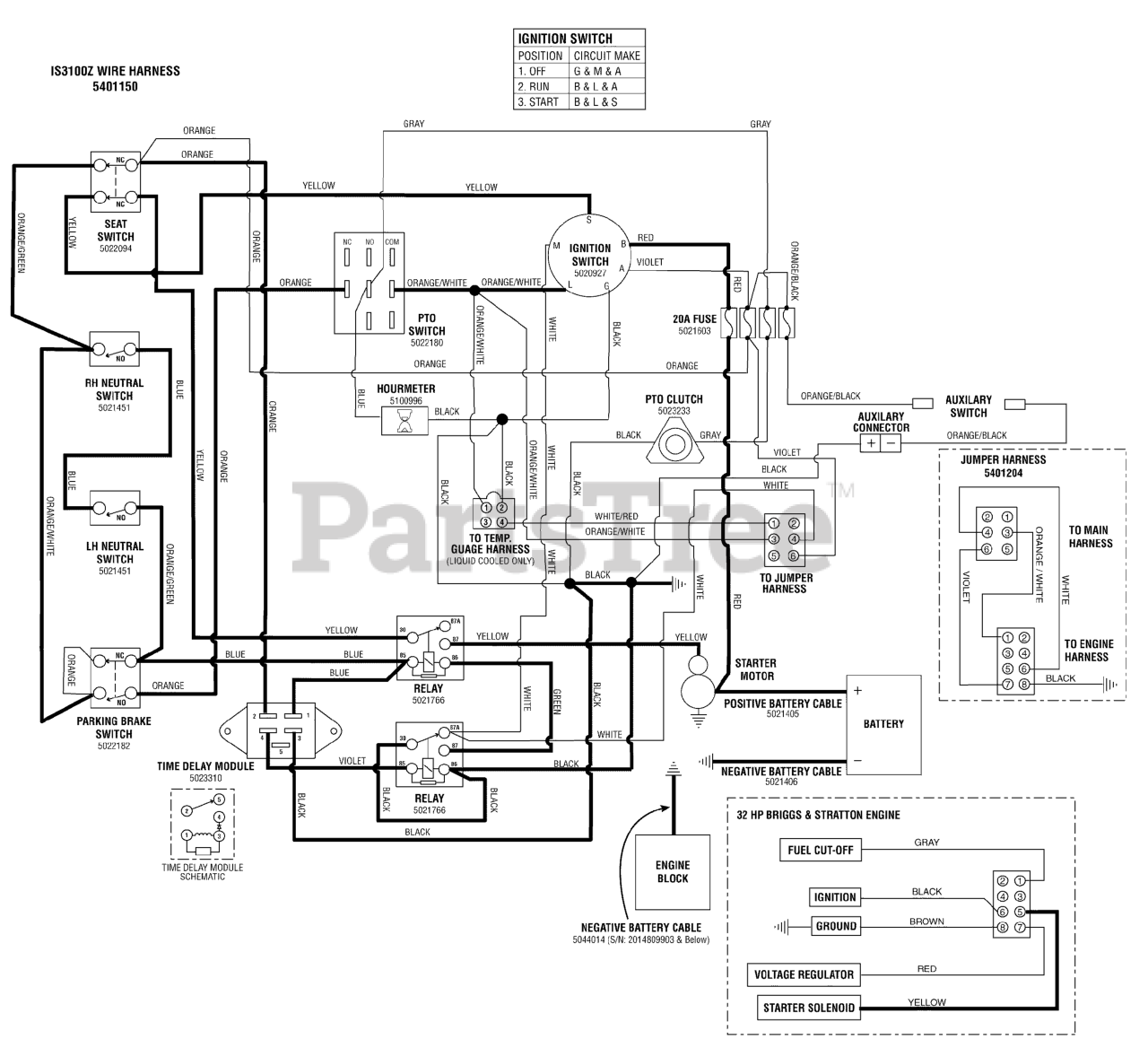

IS 3100Z (5901183) - Ferris IS3100Z Series Zero-Turn Mower, 32hp Briggs & Stratton Electrical Schematic - Cranking Circuit - Briggs & Stratton Vanguard Parts Diagram

IS3100Z Series Zero-Turn Mower, 32hp Briggs & Stratton

Electrical Schematic - Cranking Circuit - Briggs & Stratton Vanguard Parts Diagram
