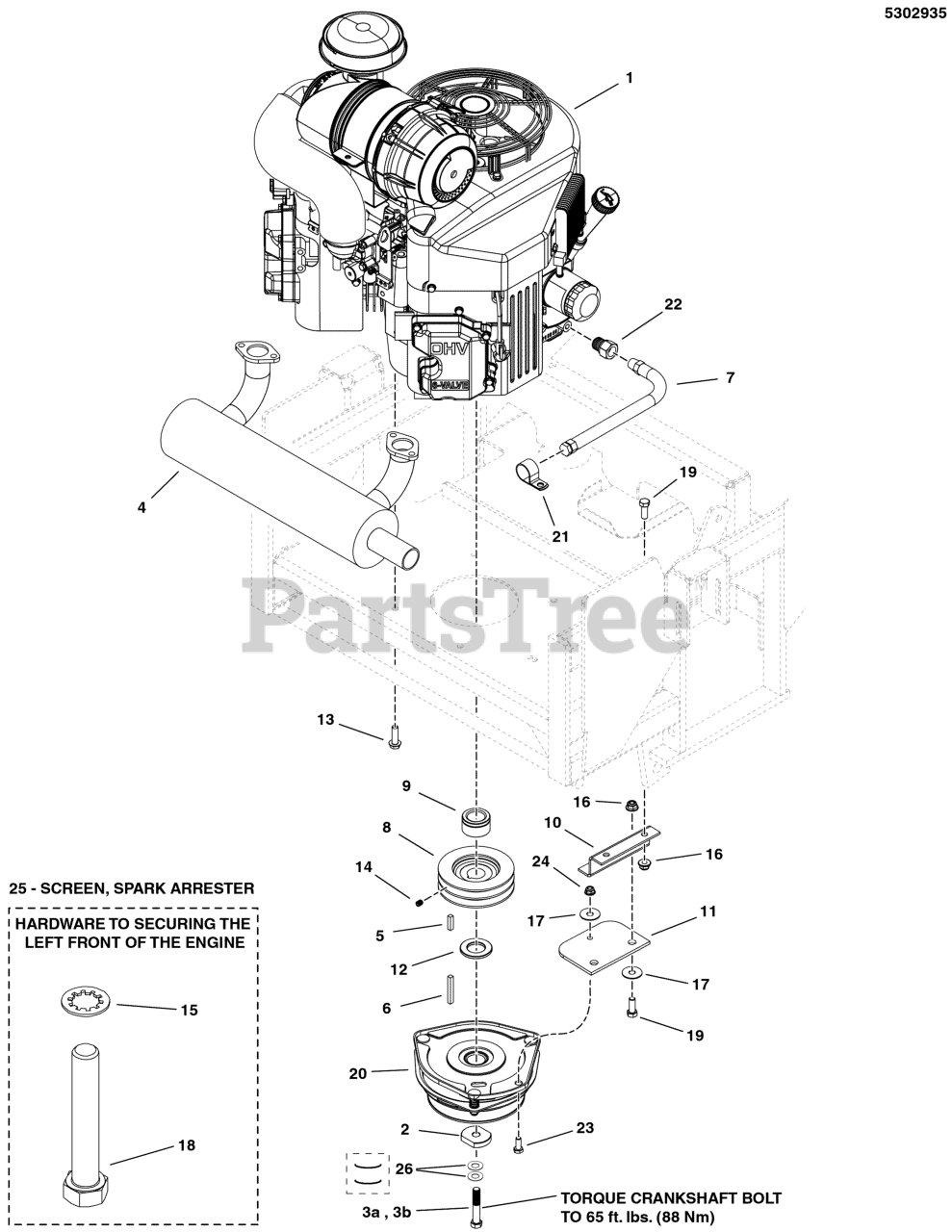

IS 3100Z (5900970) - Ferris IS3100Z Series Zero-Turn Mower, 37hp Kawasaki Engine & PTO Group - Kawasaki DFI - S/N: 2015182912 & Below Parts Diagram

IS3100Z Series Zero-Turn Mower, 37hp Kawasaki

Engine & PTO Group - Kawasaki DFI - S/N: 2015182912 & Below Parts Diagram

  • Title

1

ENGINE, KAWA, DFI

$

$

Not available

2

Ferris 5102965

SPACER, .45 X 1.88 X .38
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

3a

Ferris 5102865

BOLT, CRANKSHAFT, 7/16 X 2-3/4, PATCH, CZ
(Superseded to 5102865YP)

Note: (S/N: 2015745414 & Above)

$5.49

$

In Stock, only 2 left!

0

3b

Ferris 5102864

BOLT, CRANKSHAFT,7/16-20X2-1/2, GD8
(Superseded to 5102864YP)

Note: (S/N: 2015745413 & Below)

$5.49

$

In Stock, only 1 left!

0

4

Ferris 5101336

MUFFLER 37 HP KAWASAKI
(Superseded to 5105064FS)

Note: (Use 5025355 - Qty: 4 to mount muffler to engine.)

$237.99

$

In Stock, only 1 left!

0

5

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

6

Ferris 5050407X16

KEY, 1/4 SQ X 2
(Superseded to 5050407X16SM)

$4.99

$

Usually ships in 2-12 days

0

7

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

8

Ferris 5047075

PULLEY, CRANKSHAFT, 1.126 ID X 4.75 OD

$128.99

$

Usually ships in 2-12 days

0

9

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03, CZ
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

10

Ferris 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

11

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

12

Ferris 5042945

SPACER, 1.13 x 2.00 x .19

$

$

Currently unavailable

13

Ferris 5025532

BOLT, HEX FLG, SER, GD5 3/8-16 X 1-1/4" PACH CZ
(Superseded to 84003591)

$3.49

$

In Stock, only 4 left!

0

14

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

In Stock, Qty 12

0

15

Ferris 5025480

WASHER, 3/8" ID, INTERNAL TOOTH
(Superseded to 5025480SM)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

18

Ferris 5025058X18

BOLT, 3/8-16 X 2-1/4" GD5 TFL
(Superseded to 5025058X18YP)

$7.49

$

In Stock, only 1 left!

0

19

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

20

Ferris 5023233

CLUTCH, OGURA, 250 ft lbs - 1.13"
(Superseded to 5023233SM)

$683.99

$

Usually ships in 2-12 days

0

21

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

23

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

24

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5101641

SCREEN, SPARK ARRESTER (SV)
(Superseded to 5101641YP)

Note: (SV)

$84.99

$

Usually ships in 2-12 days

0

26

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

In Stock, only 4 left!

0
