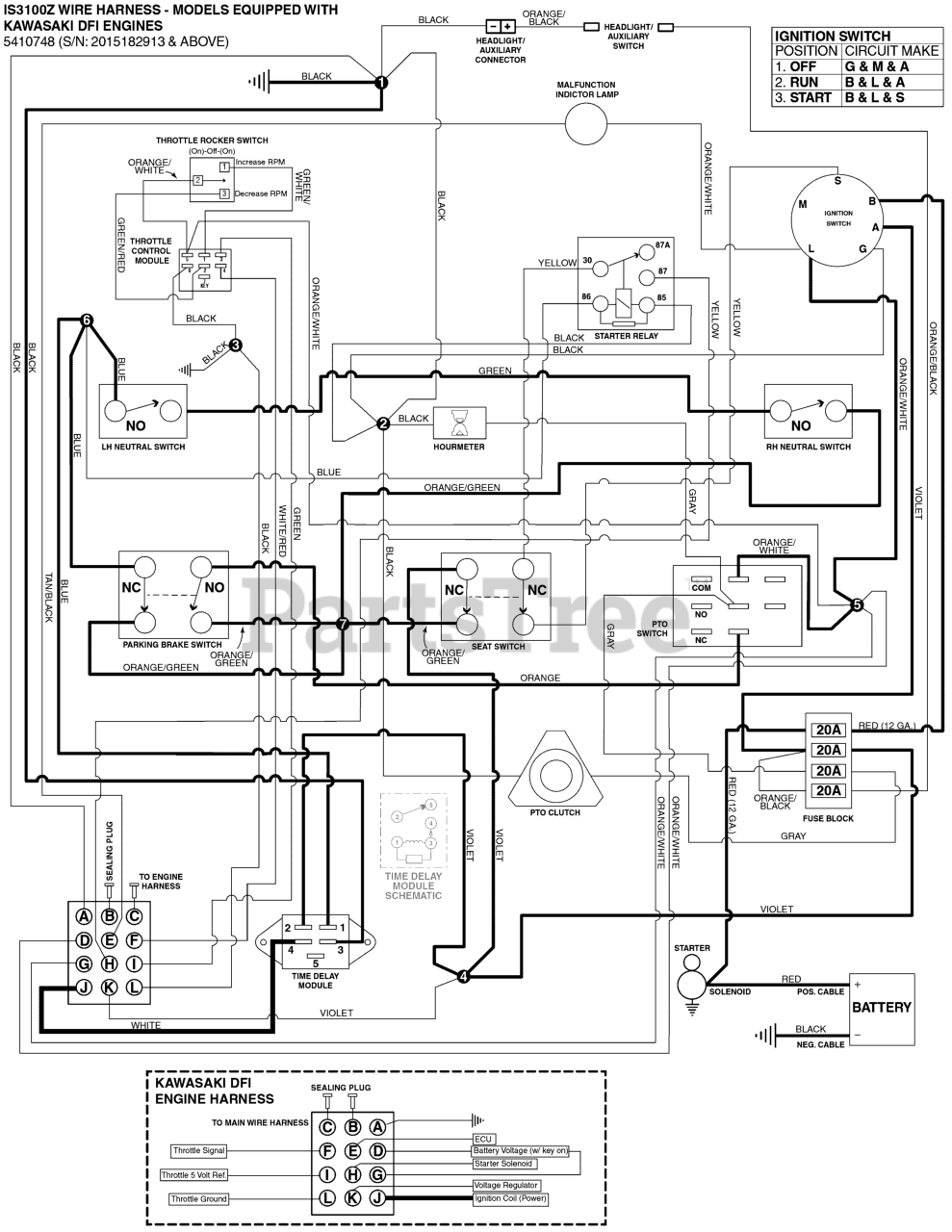

IS 3100Z (5900969) - Ferris IS3100Z Series 61" Zero-Turn Mower, 37hp Kawasaki (SN: 2015182913 & Above) Electrical Schematic - Ign. Powering/Op. Pres. - Kawasaki DFI S/N: 2015182913 & Above Parts Diagram

IS3100Z Series 61" Zero-Turn Mower, 37hp Kawasaki

Electrical Schematic - Ign. Powering/Op. Pres. - Kawasaki DFI S/N: 2015182913 & Above Parts Diagram
