IS 3100Z (5900969) - Ferris IS3100Z Series 61" Zero-Turn Mower, 37hp Kawasaki (SN: 2015182912 & Below) Instrument Control Panel - Kawasaki DFI Models Only Parts Diagram

IS3100Z Series 61" Zero-Turn Mower, 37hp Kawasaki

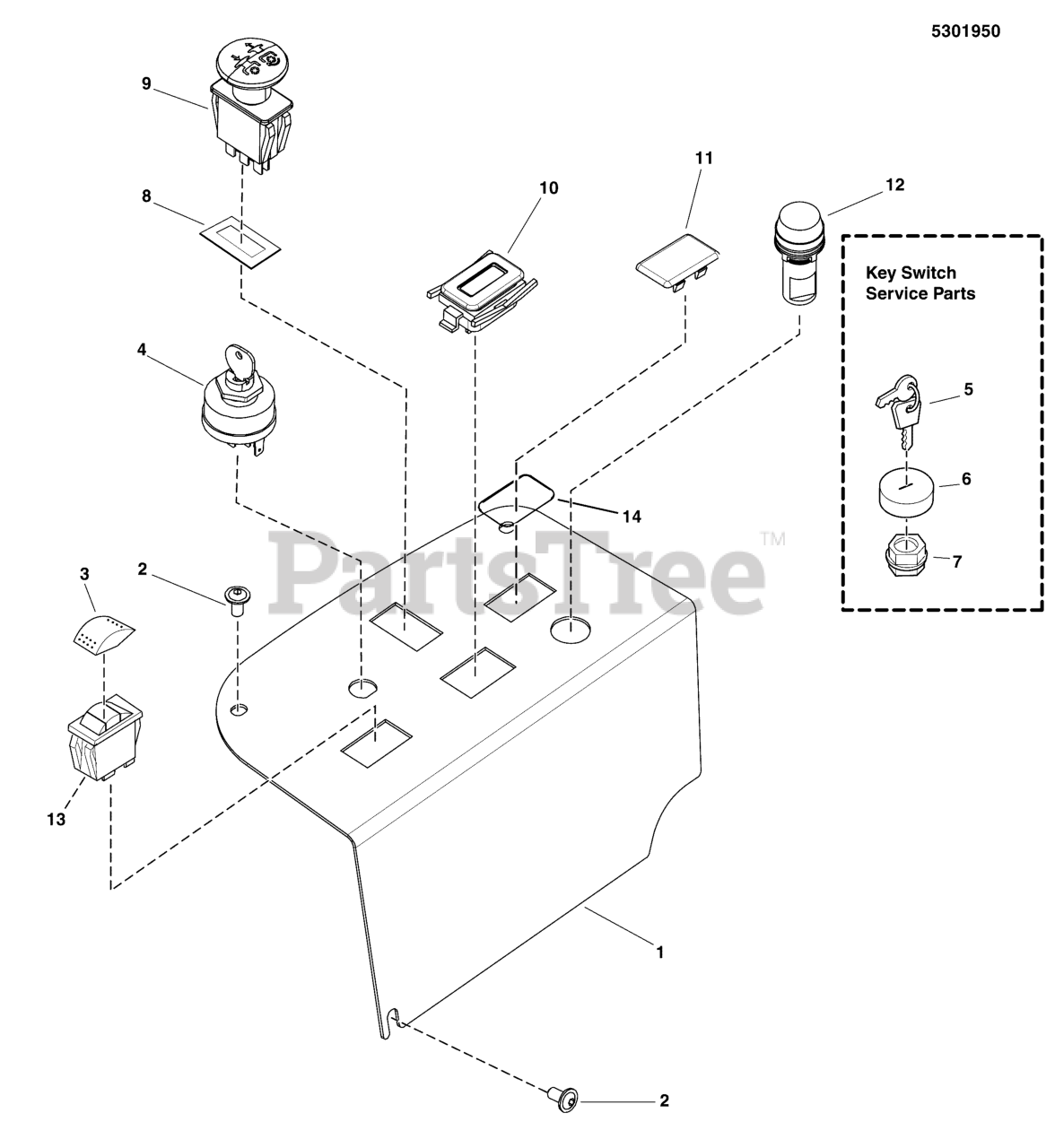

Instrument Control Panel - Kawasaki DFI Models Only Parts Diagram

  • Title

1

Ferris 5405935A

PANEL, CONTROL, IS3100Z - BLK

$40.99

$

Usually ships in 2-12 days

0

2

Ferris 5025299X4

SCREW, 1/4-20 X 1/2 ALLEN BH
(Superseded to 5106469)

$2.49

$

In Stock, Qty 15

0

3

Ferris 5102219

ACTUATOR, ROCKER SWITCH - RED
(Superseded to 84006404)

$6.49

$

In Stock, only 1 left!

0

4

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 3 left!

0

5

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

6

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

7

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

8

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

9

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

10

HOUR METER, ASSEMBLE

Note: (Refer to Note: *)

$

$

Not available

11

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

12

Ferris 5023451

LAMP, MALFUNCTION INDICATOR
(Superseded to 5023451FS)

$48.99

$

Usually ships in 2-12 days

0

13

Ferris 5102218

BODY, ROCKER SWITCH
(Superseded to 84006405)

$30.99

$

Usually ships in 2-12 days

0

14

Ferris 5022269

O-RING, 7/8 ID X 1/16 W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0
