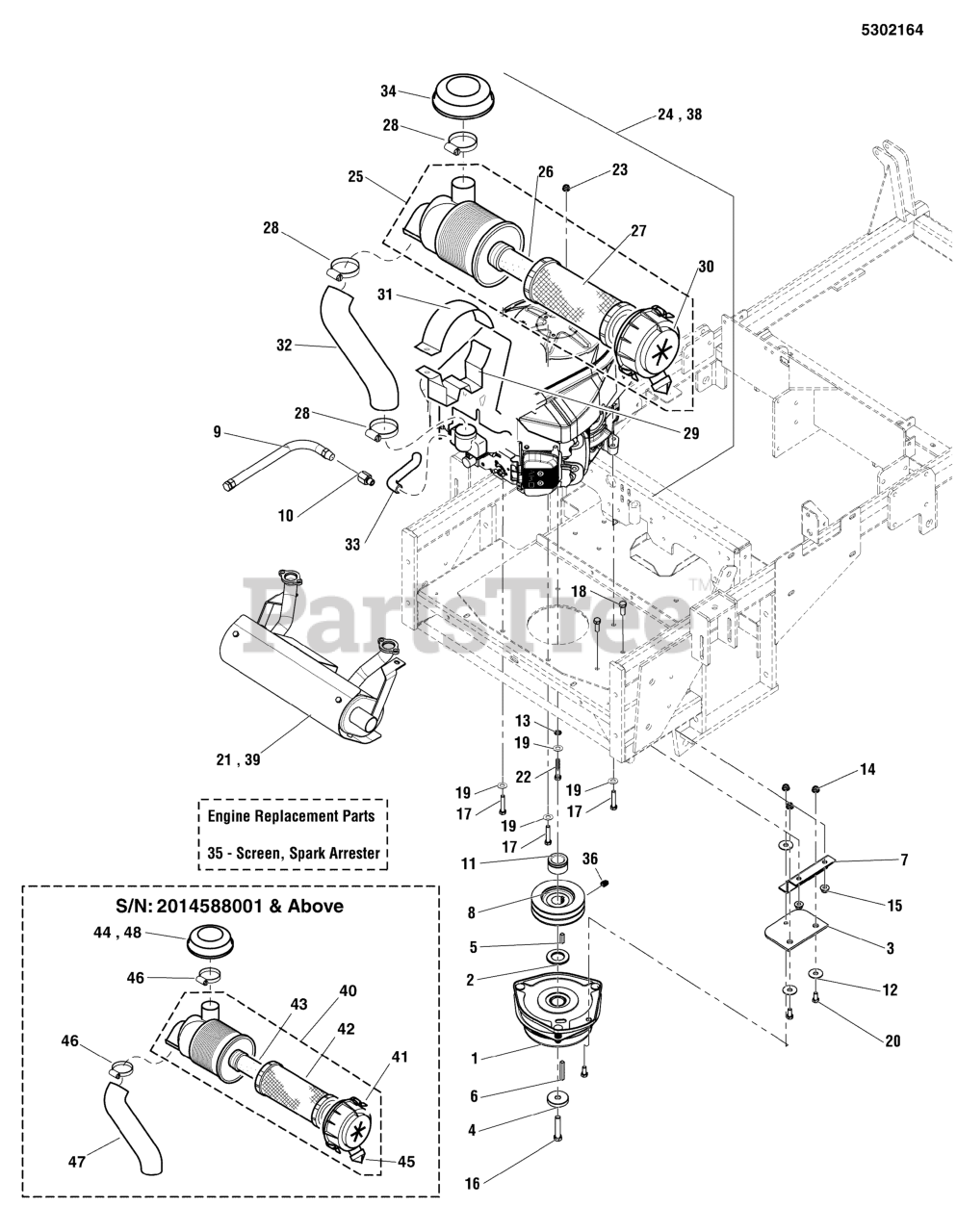

IS 3100Z (5900872) - Ferris IS3100Z Series 61" Zero-Turn Mower, 37hp Kawasaki Engine & PTO Group - Kawasaki Models Parts Diagram

IS3100Z Series 61" Zero-Turn Mower, 37hp Kawasaki

Engine & PTO Group - Kawasaki Models Parts Diagram

  • Title

1

Ferris 5023233

CLUTCH, OGURA, 250 ft lbs - 1.13"
(Superseded to 5023233SM)

$683.99

$

Usually ships in 2-12 days

0

2

Ferris 5042945

SPACER, 1.13 x 2.00 x .19

$

$

Currently unavailable

3

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

4

Ferris 5045475

SPACER, .45 x 1.88 x .38
(Superseded to 5045475SM)

$14.99

$

In Stock, only 1 left!

0

5

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

6

Ferris 5050407X16

KEY, 1/4 SQ X 2
(Superseded to 5050407X16SM)

$4.99

$

Usually ships in 2-12 days

0

7

Ferris 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

8

Ferris 5047075

PULLEY, CRANKSHAFT, 1.126 ID X 4.75 OD

$128.99

$

Usually ships in 2-12 days

0

9

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

10

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

11

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03, CZ
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

12

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

13

Ferris 5025480

WASHER, 3/8" ID, INTERNAL TOOTH
(Superseded to 5025480SM)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

16

Ferris 5045289

BOLT, CRANKSHAFT, 7/16" X 2-1/2"
(Superseded to 5102864)

$5.49

$

In Stock, only 1 left!

0

17

Ferris 5025532

BOLT, HEX FLG, SER, GD5 3/8-16 X 1-1/4" PACH CZ
(Superseded to 84003591)

$3.49

$

In Stock, only 4 left!

0

18

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

19

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

21

Ferris 5105064

MUFFLER 35-37HP KAWASAKI 5 CAN
(Superseded to 5105064FS)

Note: (Use 5025355 - Qty: 4 to mount muffler to engine.)

$237.99

$

In Stock, only 1 left!

0

22

Ferris 5025058X18

BOLT, 3/8-16 X 2-1/4" GD5 TFL
(Superseded to 5025058X18YP)

$7.49

$

In Stock, only 1 left!

0

23

Ferris 5025100

NUT, Hex, Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

24

ENGINE, KAWASAKI

$

$

Not available

25

Ferris 5101540

AIR FILTER ASSEMBLY (SV)

Note: (S/N: 2014588000 & Below)

$

$

Currently unavailable

26

Ferris 5101542

AIR FILTER, ELEMENT, SECONDARY

Note: (S/N: 2014588000 & Below)

$

$

Currently unavailable

27

Ferris 5101543

AIR FILTER, ELEMENT, PRIMARY

Note: (S/N: 2014588000 & Below)

$

$

Currently unavailable

28

Ferris 5101539

CLAMP, CAP

Note: (S/N: 2014588000 & Below)

$8.99

$

Usually ships in 2-12 days

0

29

Ferris 5101550

BRACKET PLATE, LOWER 34 & 37 (SV)

$29.99

$

Usually ships in 2-12 days

0

30

Ferris 5101544

CAP END, FILTER CASE (SV)

Note: (S/N: 2014588000 & Below)

$

$

Currently unavailable

31

Ferris 5101545

BRACKET PLATE, UPPER 27, 34 & 37 (SV)

$

$

Not available

32

Ferris 5101551

AIR INLET TUBE (SV)

Note: (S/N: 2014588000 & Below)

$94.99

$

Usually ships in 2-12 days

0

33

Ferris 5101552

BREATHER TUBE (SV)

$7.99

$

Usually ships in 2-12 days

0

34

Ferris 5101538

RAIN CAP, KAWA, DFI

Note: (S/N: 2014588000 & Below)

$

$

Currently unavailable

35

Ferris 5101641

SCREEN, SPARK ARRESTER (SV)
(Superseded to 5101641YP)

Note: (Not Shown)

$84.99

$

Usually ships in 2-12 days

0

36

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

In Stock, Qty 12

0

37

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

Note: (Not Shown)

$3.49

$

Usually ships in 2-12 days

0

38

ENGINE, KAWASAKI DFI

Note: (DFI Models)

$

$

Not available

39

Ferris 5105064

MUFFLER 35-37HP KAWASAKI 5 CAN
(Superseded to 5105064FS)

Note: (DFI Models) (Use 5025355 - Qty: 4 to mount muffler to engine.)

$237.99

$

In Stock, only 1 left!

0

40

Ferris 5102126X1

AIR FILTER ASSEMBLY, 22,24&26HP KAWASAKI (SV)

Note: (S/N: 2014588001 & Above)

$

$

Not available

41

Ferris 5102126X2

CAP END, FILTER CASE, 22,24&26HP, KAWASAKI (SV)

Note: (S/N: 2014588001 & Above)

$

$

Not available

42

Ferris 5102126X3

AIR FILTER, PRIMARY,22,24&26HP, KAWASAKI (SV)

Note: (S/N: 2014588001 & Above)

$

$

Not available

43

Ferris 5102126X4

AIR FILTER, SECONDARY, 22, 24&26HP KAWASAKI (SV)

Note: (S/N: 2014588001 & Above)

$

$

Not available

44

Ferris 5023143

RAIN CAP, AIR FILTER, 22,24&26HP, KAWASAKI (SV)

Note: (S/N: 2014588001 & Above)

$

$

Not available

45

Ferris 5102126X8

RUBBER, Dust Valve, 22,24&26HP KAWASAKI (SV)

Note: (S/N: 2014588001 & Above)

$

$

Not available

46

Ferris 5023146

CLAMP, HOSE

Note: (S/N: 2014588001 & Above)

$11.99

$

Usually ships in 2-12 days

0

47

Ferris 5102573

TUBE, AIR INLET

Note: (S/N: 2014588001 & Above)

$

$

Currently unavailable

48

Ferris 5101538

RAIN CAP, KAWA, DFI

Note: (S/N: 2014588001 & Above - DFI Models Only)

$

$

Currently unavailable

49

Ferris 5021334X1

FILTER,OIL,KAWA FX751,801,851,921,100
(Superseded to 5213341SM)

Note: (Not Shown)

$

$

Not available
