IS 3100Z (5900792) - Ferris IS3100Z Series Zero-Turn Mower, 32hp Briggs & Stratton Fuel Supply Hose & Tank Replacement Parts Group Parts Diagram

IS3100Z Series Zero-Turn Mower, 32hp Briggs & Stratton

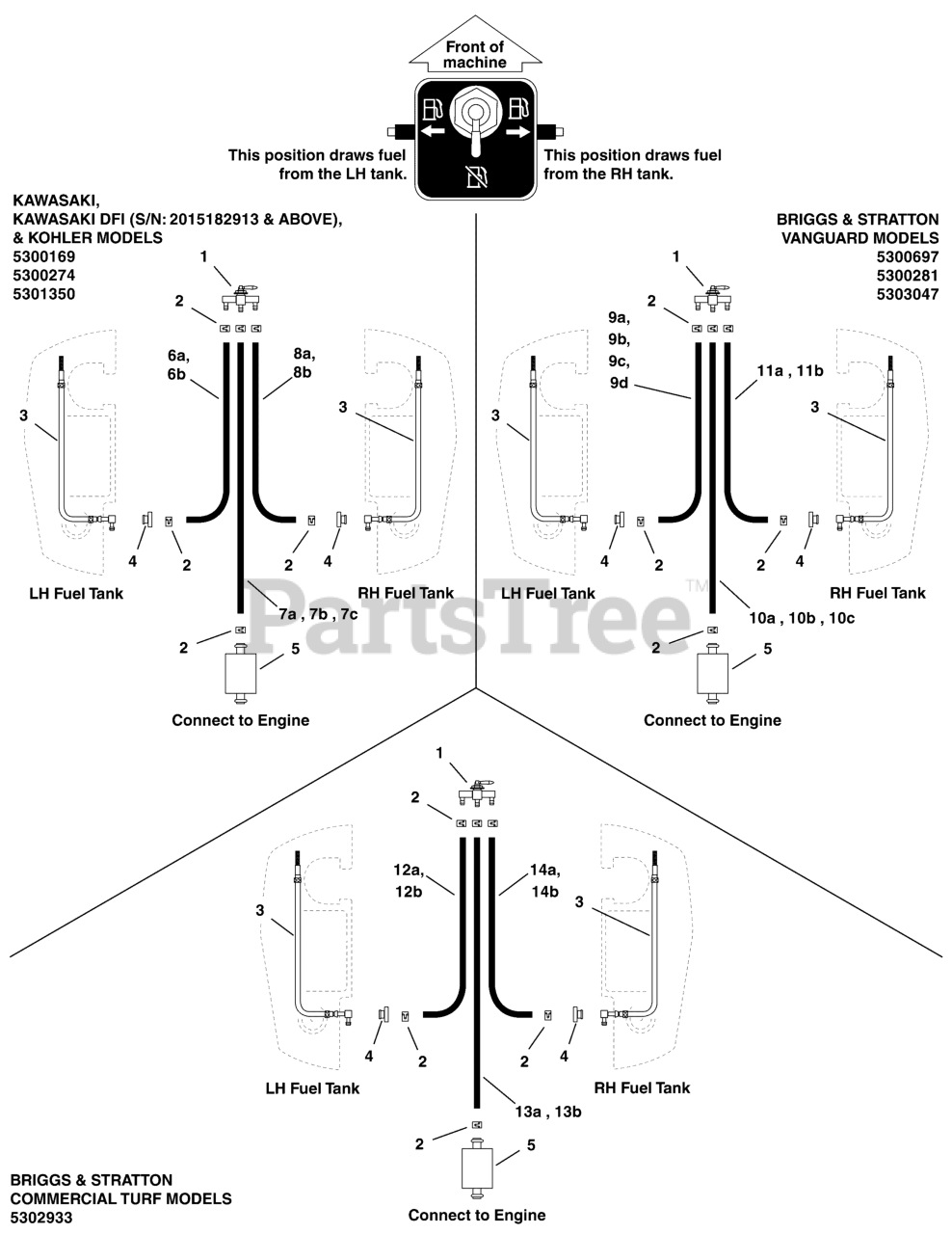

Fuel Supply Hose & Tank Replacement Parts Group Parts Diagram

  • Title

1

Ferris 5023358

VALVE, FUEL, STR. OUTLET
(Superseded to 5023358SM)

$48.99

$

In Stock, Qty 9

0

2

Ferris 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

3

Ferris 5101144

HOSE ASSEMBLY (DRAW TUBE)

$33.99

$

Usually ships in 2-12 days

0

4

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

5

Ferris 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

$12.99

$

In Stock, Qty 14

0

6a

Ferris 5050831X49

HOSE, 1/4" FUEL, 49"
(Superseded to 5050831X49YP)

$20.99

$

In Stock, only 2 left!

0

6b

Ferris 5050831X13

HOSE, 1/4" FUEL, 13"
(Superseded to 5050831X13FS)

Note: (Kawasaki DFI Models - S/N: 2015182912 & Above)

$8.99

$

In Stock, only 1 left!

0

7a

Ferris 5050831X5

HOSE, 1/4" FUEL, 5"
(Superseded to 5050831X5SM)

Note: (Kawasaki Liquid Cooled Models)

$5.49

$

Usually ships in 2-12 days

0

7b

Ferris 5050831X10P5

HOSE, 1/4" FUEL, 10.5"

Note: (Kawasaki DFI Models - S/N: 2015182912 & Above)

$

$

Not available

7c

Ferris 5050831X16

HOSE, 1/4" FUEL, 16"
(Superseded to 5050831X16SM)

Note: (Kohler Models)

$8.49

$

Usually ships in 2-12 days

0

8a

Ferris 5050831X12

HOSE, 1/4" FUEL, 12"
(Superseded to 5050831X12SM)

$5.99

$

Usually ships in 2-12 days

0

8b

Ferris 5050831X33P5

HOSE, 1/4" FUEL, 33.5"

Note: (Kawasaki DFI Models - S/N: 2015182912 & Above)

$14.99

$

In Stock, only 1 left!

0

9a

Ferris 5050831X13

HOSE, 1/4" FUEL, 13"
(Superseded to 5050831X13FS)

Note: (S/N: 2015474847 & Above)

$8.99

$

In Stock, only 1 left!

0

9b

Ferris 5050831X36

HOSE, 1/4" FUEL, 36"
(Superseded to 5050831X36SM)

Note: (S/N: 2014762810 - 2015474846)

$13.99

$

Usually ships in 2-12 days

0

9c

Ferris 5050831X49

HOSE, 1/4" FUEL, 49"
(Superseded to 5050831X49YP)

Note: (S/N: 2013281067 - 2014762809)

$20.99

$

In Stock, only 2 left!

0

9d

Ferris 5050831X40

HOSE, 1/4" FUEL, 40"

Note: (S/N: 2013281066 & Below)

$18.99

$

Usually ships in 2-12 days

0

10a

Ferris 5050831X35P

HOSE, 1/4" FUEL, 35.5"

Note: (S/N: 2015474847 & Above)

$

$

Currently unavailable

10b

Ferris 5050831X31

HOSE, 1/4" FUEL, 31"
(Superseded to 5050831X31SM)

Note: (S/N: 2013281067 - 2015474846)

$13.99

$

Usually ships in 2-12 days

0

10c

Ferris 5050831X41

HOSE, 1/4" FUEL, 41"
(Superseded to 5050831X41FS)

Note: (S/N: 2013281066 & Below)

$17.99

$

Usually ships in 2-12 days

0

11a

Ferris 5050831X10P5

HOSE, 1/4" FUEL, 10.5"

Note: (S/N: 2015474847 & Above)

$

$

Not available

11b

Ferris 5050831X12

HOSE, 1/4" FUEL, 12"
(Superseded to 5050831X12SM)

Note: (S/N: 2015474846 & Below)

$5.99

$

Usually ships in 2-12 days

0

12a

Ferris 5050831X13

HOSE, 1/4" FUEL, 13"
(Superseded to 5050831X13FS)

Note: (S/N: 2015474847 & Above)

$8.99

$

In Stock, only 1 left!

0

12b

Ferris 5050831X36

HOSE, 1/4" FUEL, 36"
(Superseded to 5050831X36SM)

Note: (S/N: 2015474846 & Below)

$13.99

$

Usually ships in 2-12 days

0

13a

Ferris 5050831X35P

HOSE, 1/4" FUEL, 35.5"

Note: (S/N: 2015474847 & Above)

$

$

Currently unavailable

13b

Ferris 5050831X12

HOSE, 1/4" FUEL, 12"
(Superseded to 5050831X12SM)

Note: (S/N: 2015474846 & Below)

$5.99

$

Usually ships in 2-12 days

0

14a

Ferris 5050831X23

HOSE, 1/4" FUEL, 23"
(Superseded to 5050831X23SM)

Note: (S/N: 2015474847 & Above)

$9.49

$

Usually ships in 2-12 days

0

14b

Ferris 5050831X12

HOSE, 1/4" FUEL, 12"
(Superseded to 5050831X12SM)

Note: (S/N: 2015474846 & Below)

$5.99

$

Usually ships in 2-12 days

0
