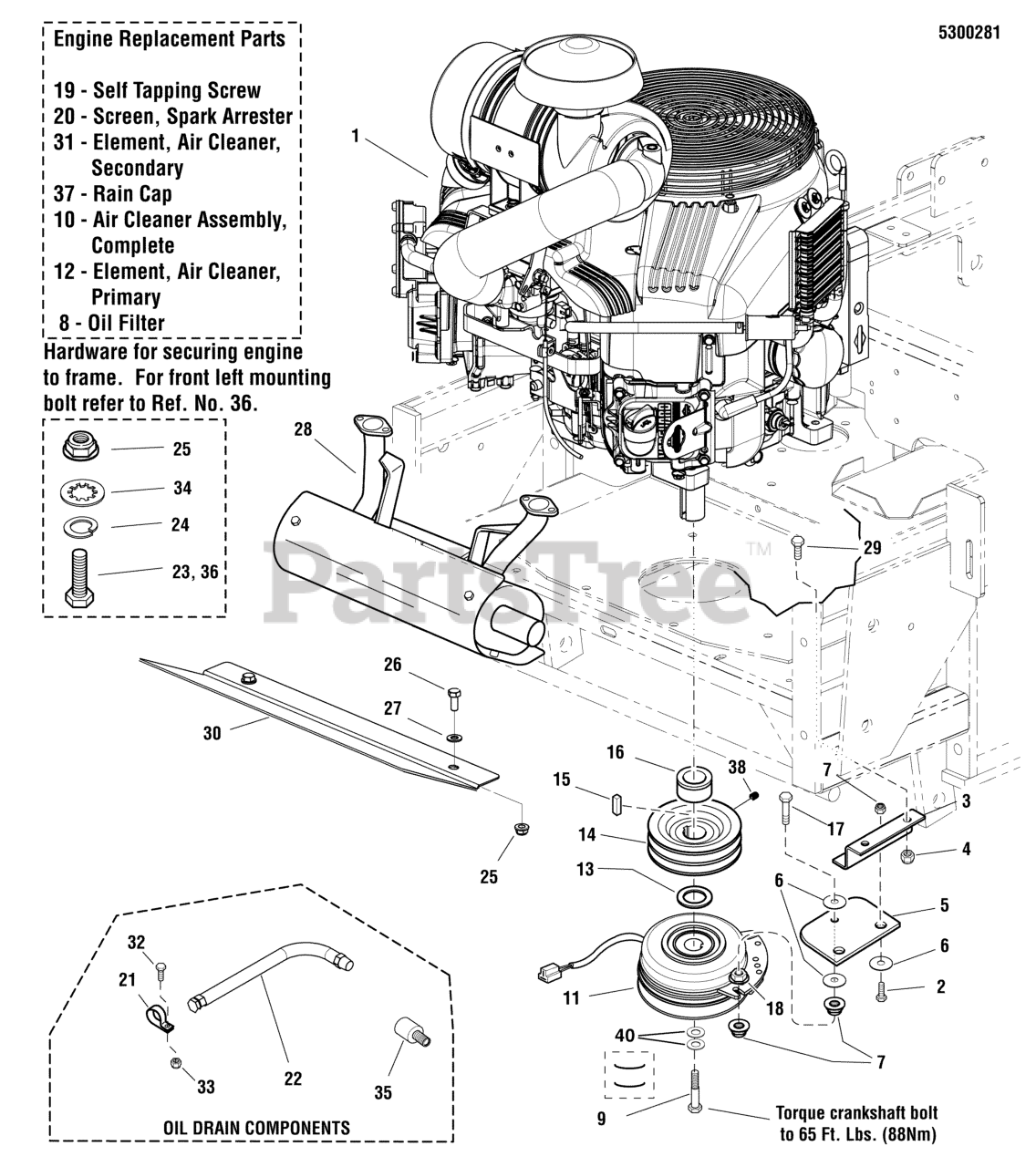

IS 3100Z (5900792) - Ferris IS3100Z Series Zero-Turn Mower, 32hp Briggs & Stratton Engine & PTO Group - B&S - M/N 543777 S/N: 2013556396 & Above Parts Diagram

IS3100Z Series Zero-Turn Mower, 32hp Briggs & Stratton

Engine & PTO Group - B&S - M/N 543777 S/N: 2013556396 & Above Parts Diagram

  • Title

1

ENGINE, BRIGGS & STRATTON

$

$

Not available

2

Ferris 5025011X8

BOLT, 5/16-18 X 3/4 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

3

Ferris 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

4

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

6

Ferris 5025165

WASHER, 3/8" FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

7

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 842921

FILTER, OIL, BRIGGS & STRATTON

$14.99

$

In Stock, Qty 20+

0

9

Ferris 5102864

BOLT, CRANKSHAFT, 7/16" X 2-1/2
(Superseded to 5102864YP)

$5.49

$

In Stock, only 1 left!

0

10

Ferris 809218

AIR CLEANER ASSY
(Superseded to 809670)

$235.99

$

In Stock, only 4 left!

0

11

Ferris 5101780

*CLUTCH, WARNER ELECTRIC, CMS250

$586.99

$

Usually ships in 2-12 days

0

12

Ferris 841237

ELEMENT ASSY

$36.99

$

Usually ships in 2-12 days

0

13

Ferris 5101999

SPACER, 1.13 X 2.00 X 0.030, YZ

$8.49

$

Usually ships in 2-12 days

0

14

Ferris 5047075

PULLEY, CRANKSHAFT (DOUBLE A)

$128.99

$

Usually ships in 2-12 days

0

15

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 2 left!

0

16

Ferris 5103626

SPACER, 1.13 X 1.75 X 1.09, PM

$16.99

$

Usually ships in 2-12 days

0

17

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

18

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 3 left!

0

19

Ferris 5025470

SELF TAPPING SCREW
(Superseded to 5025470YP)

$3.49

$

In Stock, only 2 left!

0

20

Ferris 842859

SCREEN, ARRESTER
(Superseded to 843204)

$136.99

$

Usually ships in 2-12 days

0

21

Ferris 5021500

CLAMP, VINYL
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

23

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2" GD5
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

24

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

26

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

27

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

28

Ferris 843906

MUFFLER, ASSY, SERVICE PART

$

$

Not available

29

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

30

Ferris 5402351A

PLATE, HEAT SHIELD, FRAME - BLK

$32.99

$

Usually ships in 2-12 days

0

31

Ferris 841238

ELEMENT, AIR CLEANER, SECONDARY

$40.99

$

Usually ships in 2-12 days

0

32

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

33

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

34

Ferris 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

35

Ferris 5100366

METRIC ADAPTER, M14-1.5" TO 3/8 NPTF
(Superseded to 5100366SM)

$13.99

$

Usually ships in 2-12 days

0

36

Ferris 5025011X16

BOLT, 5/16-18 X 2" GD5 YZ
(Superseded to 5025011X16YP)

Note: (Front left engine mounting bolt)

$3.99

$

Usually ships in 2-12 days

0

37

Ferris 593754

CAP, A/C RAIN
(Superseded to 593754FS)

$60.99

$

Usually ships in 2-12 days

0

38

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

In Stock, Qty 12

0

39

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

Note: (Not shown)

$3.49

$

Usually ships in 2-12 days

0

40

Ferris 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

In Stock, only 4 left!

0
