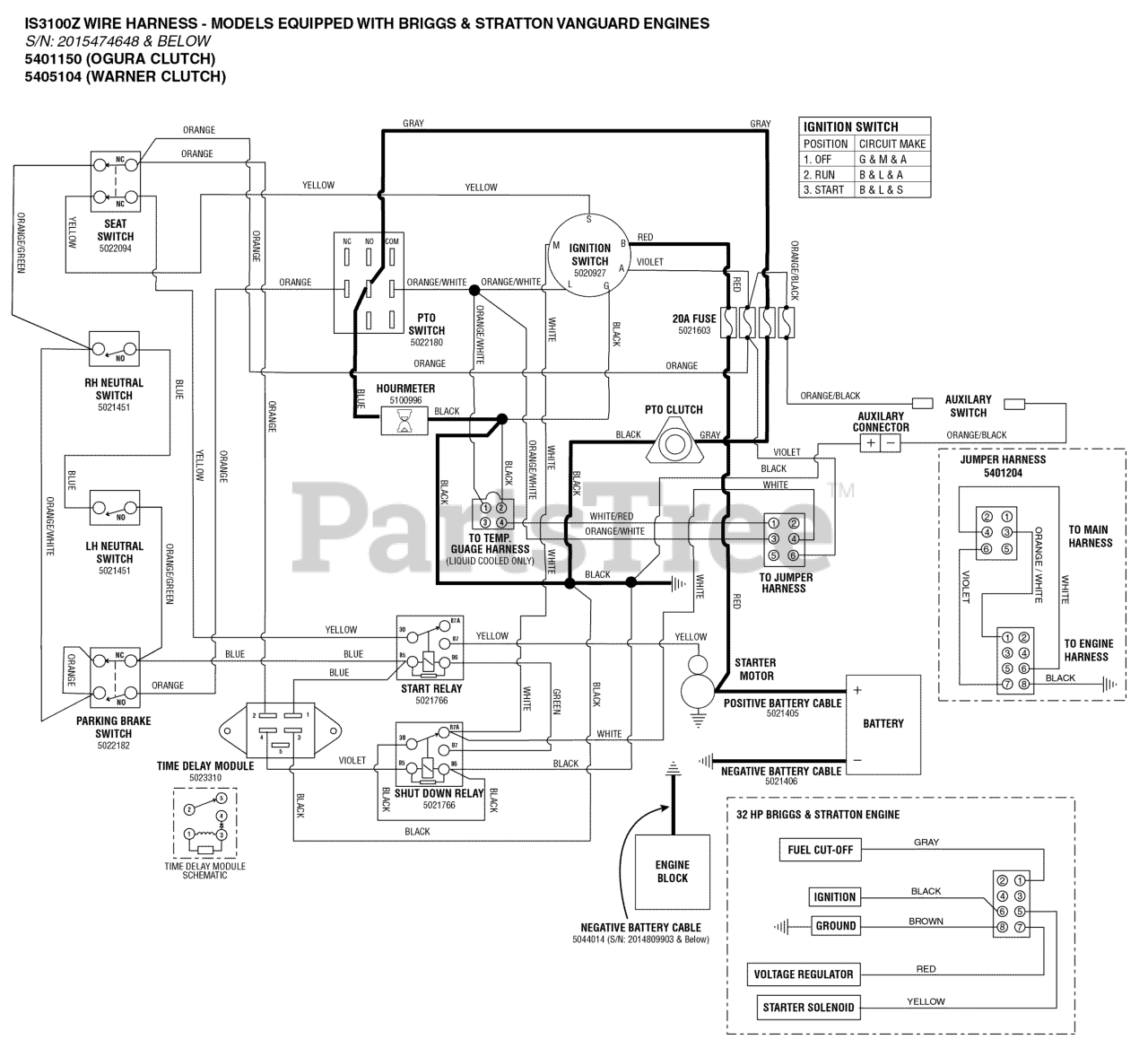

IS 3100Z (5900791) - Ferris IS3100Z Series 61" Zero-Turn Mower, 32hp Briggs & Stratton Electrical Schematic - PTO Clutch Circuit - B&S Vanguard S/N: 2015474846 & Below Parts Diagram

IS3100Z Series 61" Zero-Turn Mower, 32hp Briggs & Stratton
