IS 3100Z (5900790) - Ferris IS3100Z Series Zero-Turn Mower, 32hp Briggs & Stratton Instrument Control Panel Group - Propane Models Parts Diagram

IS3100Z Series Zero-Turn Mower, 32hp Briggs & Stratton

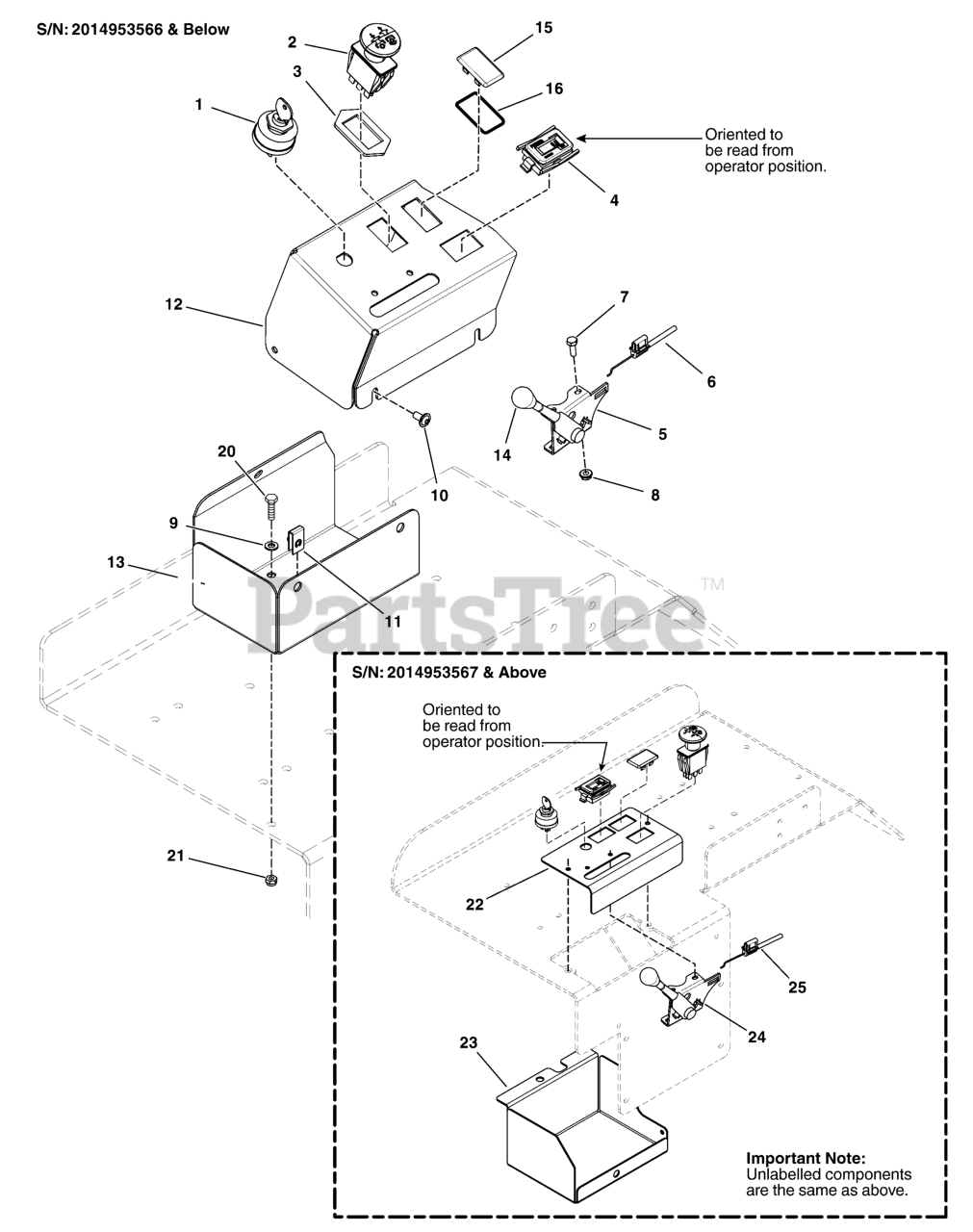

Instrument Control Panel Group - Propane Models Parts Diagram

  • Title

1

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref Nos. 17 - 19)

$33.99

$

In Stock, Qty 7

0

2

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

3

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

4

Ferris 5100996

HOUR METER, W/ SUPRESSOR
(Superseded to 5102417)

$64.99

$

Usually ships in 2-12 days

0

5

Ferris 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

Note: (S/N: 2014953566 & Below)

$48.99

$

Usually ships in 2-12 days

0

6

Ferris 5101072

CABLE, THROTTLE, 52"
(Superseded to 5101072FS)

Note: (S/N: 2014953566 & Below)

$27.99

$

In Stock, only 1 left!

0

7

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

10

Ferris 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

In Stock, Qty 18

0

11

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5403495A

CONTROL PANEL, TOP - BLK

Note: (S/N: 2014953566 & Below)

$48.99

$

Usually ships in 2-12 days

0

13

Ferris 5403496A

CONTROL PANEL, BOTTOM - BLK

Note: (S/N: 2014953566 & Below)

$45.99

$

Usually ships in 2-12 days

0

14

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

Note: (SV)

$10.99

$

In Stock, only 1 left!

0

15

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

16

Ferris 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5022789

KEY, IGNITION MOLDED SET

Note: (Not illustrated)(SV)

$

$

Currently unavailable

18

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

Note: (Not illustrated)(SV)

$4.49

$

In Stock, only 1 left!

0

19

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

Note: (Not illustrated)(SV)

$3.49

$

In Stock, only 1 left!

0

20

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

21

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5405268A

PLATE, INSTRUMENT CONTROL PANEL

Note: (S/N: 2014953567 & Above)

$18.99

$

Usually ships in 2-12 days

0

23

Ferris 5407425A

PLATE, INSTRUMENT CTRL SHIELD, PROPANE - BLK

Note: (S/N: 2014953567 & Above)

$

$

Currently unavailable

24

Ferris 5046360

HANDLE, THROTTLE CONTROL

Note: (S/N: 2014953567 & Above)

$55.99

$

In Stock, only 2 left!

0

25

Ferris 5101076

CABLE, THROTTLE 47"
(Superseded to 5101076SM)

Note: (S/N: 2014953567 & Above)

$35.99

$

Usually ships in 2-12 days

0
