IS 3100Z (5900787) - Ferris IS3100Z Series Zero-Turn Mower, 32hp Briggs & Stratton Motion Control Group - Lower Parts Diagram

IS3100Z Series Zero-Turn Mower, 32hp Briggs & Stratton

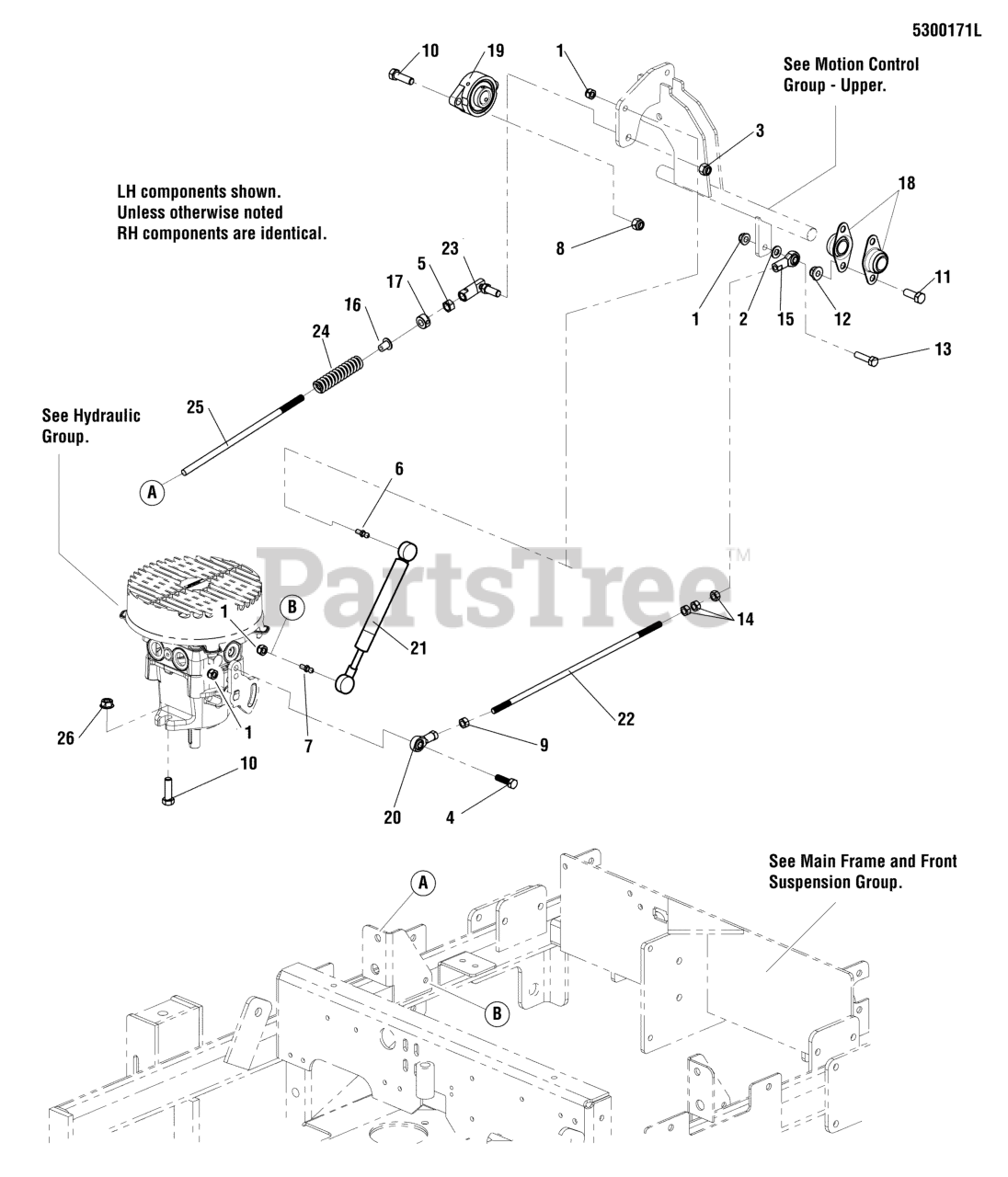

Motion Control Group - Lower Parts Diagram

  • Title

1

Ferris 5025392

NUT,5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

2

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

3

Ferris 5025097

NUT, 3/8-24 HEX NYLON LOCK
(Superseded to 5025097FS)

$2.49

$

Usually ships in 2-12 days

0

4

Ferris 5025011X9

BOLT, 5/16-18 X 1-1/8" GD5
(Superseded to 5025011X9SM)

$3.99

$

In Stock, only 1 left!

0

5

Ferris 5025035

NUT, HEX 3/8-24
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5101307

BALL STUD, 5/16 X .75
(Superseded to 5101307SM)

$5.49

$

Usually ships in 2-12 days

0

7

Ferris 5100941

BALL STUD, 5/16 X .50
(Superseded to 5100941SM)

$4.49

$

In Stock, Qty 12

0

8

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

9

Ferris 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

11

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

12

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

14

Ferris 5025033

NUT, HEX 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

16

Ferris 5101834

BUSHING, FLANGE, .375 X .469 X 1.500

$4.49

$

Usually ships in 2-12 days

0

17

Ferris 5010546

COLLAR, 3/8" SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

18

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

19

Ferris 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

20

Ferris 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

21

Ferris 5100940

DAMPENER, CONTROL
(Superseded to 5100940SM)

$55.99

$

In Stock, only 2 left!

0

22

Ferris 5101057

ROD, HYDRO LINKAGE 3000
(Superseded to 5101057SM)

$8.49

$

Usually ships in 2-12 days

0

23

Ferris 5020805

BALL JOINT, 3/8-24 FEM. STUD.
(Superseded to 5020805FS)

$17.99

$

Usually ships in 2-12 days

0

24

Ferris 5022645

SPRING, REVERSE RETURN
(Superseded to 5022645SM)

$9.49

$

In Stock, only 1 left!

0

25

Ferris 5100363

ROD, NEUTRAL CONTROL

$4.49

$

Usually ships in 2-12 days

0

26

Ferris 5025128

NUT, 3/8-16 HEX LG. SERR FLG
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0
