IS 3100Z (5900717) - Ferris IS3100Z Series Zero-Turn Mower, 32hp Briggs & Stratton Seat Mount & Floor Group Parts Diagram

IS3100Z Series Zero-Turn Mower, 32hp Briggs & Stratton

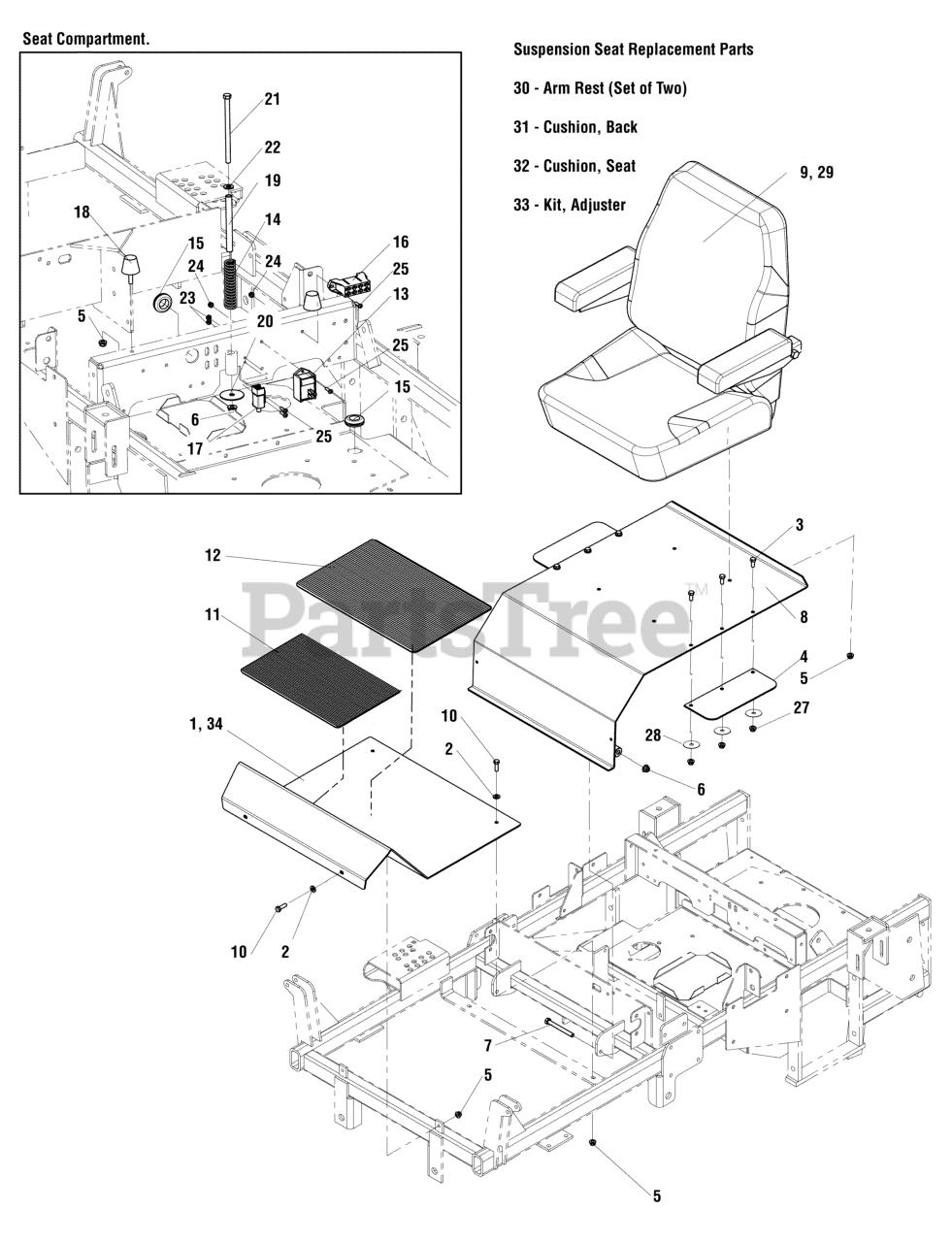

Seat Mount & Floor Group Parts Diagram

  • Title

1

Ferris 5400509B

FLOOR PAN, 3000 - RED

Note: (S/N: 2013102109 & Below)

$

$

Currently unavailable

2

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

3

Ferris 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 1 left!

0

4

Ferris 5100389

PLATE, SEAT, RUBBER FLAP
(Superseded to 5100389YP)

$4.99

$

Usually ships in 2-12 days

0

5

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

8

Ferris 5600303

SEAT PLATE W/ DECALS, IS3100Z

$385.99

$

Usually ships in 2-12 days

0

9a

Ferris 5022955

SEAT, DELUXE, GRAY (COMPLETE)

Note: (Non Suspension Seat)

$1138.99

$

Usually ships in 2-12 days

0

9b

Ferris 5022955X1

SEAT BOTTOM COVER (SV)

Note: (Non Suspension Seat)

$240.99

$

Usually ships in 2-12 days

0

9c

Ferris 5022955X2

SEAT BACK COVER (SV)

Note: (Non Suspension Seat)

$227.99

$

Usually ships in 2-12 days

0

9d

Ferris 5022955X3

ARM REST SET (SV)

Note: (Non Suspension Seat)

$361.99

$

Usually ships in 2-12 days

0

9e

Ferris 5022955X4

ARM REST PADS (SV)

Note: (Non Suspension Seat)

$163.99

$

In Stock, only 1 left!

0

9f

Ferris 5020930X3

SEAT ADJUSTMENT RAILS (SV)

Note: (Non Suspension Seat)

$

$

Currently unavailable

9g

Ferris 5100636

SPRING, EXTENSION, SEAT ADJUSTMENT (YEL OR BLK)
(Superseded to 5100636SM)

Note: (SV)(Not an illustrated part.)(Non Suspension Seat) (2" Total unstretched length)

$10.99

$

Usually ships in 2-12 days

0

10

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

11

Ferris 5101007

SAFETY WALK, FLOOR REST
(Superseded to 5101007SM)

$32.99

$

Usually ships in 2-12 days

0

12

Ferris 5100999

SAFETY WALK, FLOOR PLATE

$27.99

$

Usually ships in 2-12 days

0

13

Ferris 5023310

MODULE, TIME DELAY
(Superseded to 5023310SM)

$114.99

$

Usually ships in 2-12 days

0

14

Ferris 5100356

SPRING, .688 ID X .130 WIRE DIA 4.25
(Superseded to 5100356SM)

$16.99

$

Usually ships in 2-12 days

0

15

Ferris 5021379

GROMMET, 7/8"
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

16

Ferris 5021518

FUSE, BLOCK
(Superseded to 5021518SM)

$11.99

$

Usually ships in 2-12 days

0

16

Ferris 5022805

COVER, VINYL FUSE BLOCK
(Superseded to 5022805SM)

Note: (Not Shown)

$6.49

$

Usually ships in 2-12 days

0

17

Ferris 5022094

SWITCH PLUNGER N.C. / N.C.
(Superseded to 5022094SM)

$14.99

$

Usually ships in 2-12 days

0

18

Ferris 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

19

Ferris 5046586

SPACER, .38 X .50 X 5.06
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 20+

0

20

Ferris 5025326

WASHER 3/8" X 2
(Superseded to 5025326SM)

$4.49

$

Usually ships in 2-12 days

0

21

Ferris 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 20+

0

22

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5025029

NUT, 10-24 HEX
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

24

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5025179X4

SCREW, #10-24 X 1/2" ROUND SLOTTED

$

$

Currently unavailable

27

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

28

Ferris 5025288

WASHER, 1/4" FENDER
(Superseded to 5025288YP)

$3.99

$

In Stock, only 4 left!

0

29

Ferris 5101214

SEAT, SUSPENSION TYPE, BLACK
(Superseded to 5101214FS)

Note: (Suspenion Seat)

$1192.99

$

Usually ships in 2-12 days

0

30

Ferris 5101214X1

KIT, ARM REST, S/S (SV)

Note: (Suspenion Seat)

$269.99

$

Usually ships in 2-12 days

0

31

Ferris 5101214X2

CUSHION, BACK, S/S (SV)

Note: (Suspenion Seat)

$373.99

$

Usually ships in 2-12 days

0

32

Ferris 5101214X3

CUSHION, SEAT, S/S (SV)

Note: (Suspenion Seat)

$397.99

$

In Stock, only 1 left!

0

33

Ferris 5101214X4

KIT, ADJUSTER, S/S (SV)

Note: (Suspenion Seat)

$174.99

$

Usually ships in 2-12 days

0

34

Ferris 5404101B

PLATE, FLOOR PAN, IS3100 - RED

Note: (S/N: 2013102110 & Above)

$193.99

$

Usually ships in 2-12 days

0
