IS 3100Z (5900691) - Ferris IS3100Z Series Zero-Turn Mower, Briggs & Stratton Reservoir Mount & Battery Group Parts Diagram

IS3100Z Series Zero-Turn Mower, Briggs & Stratton

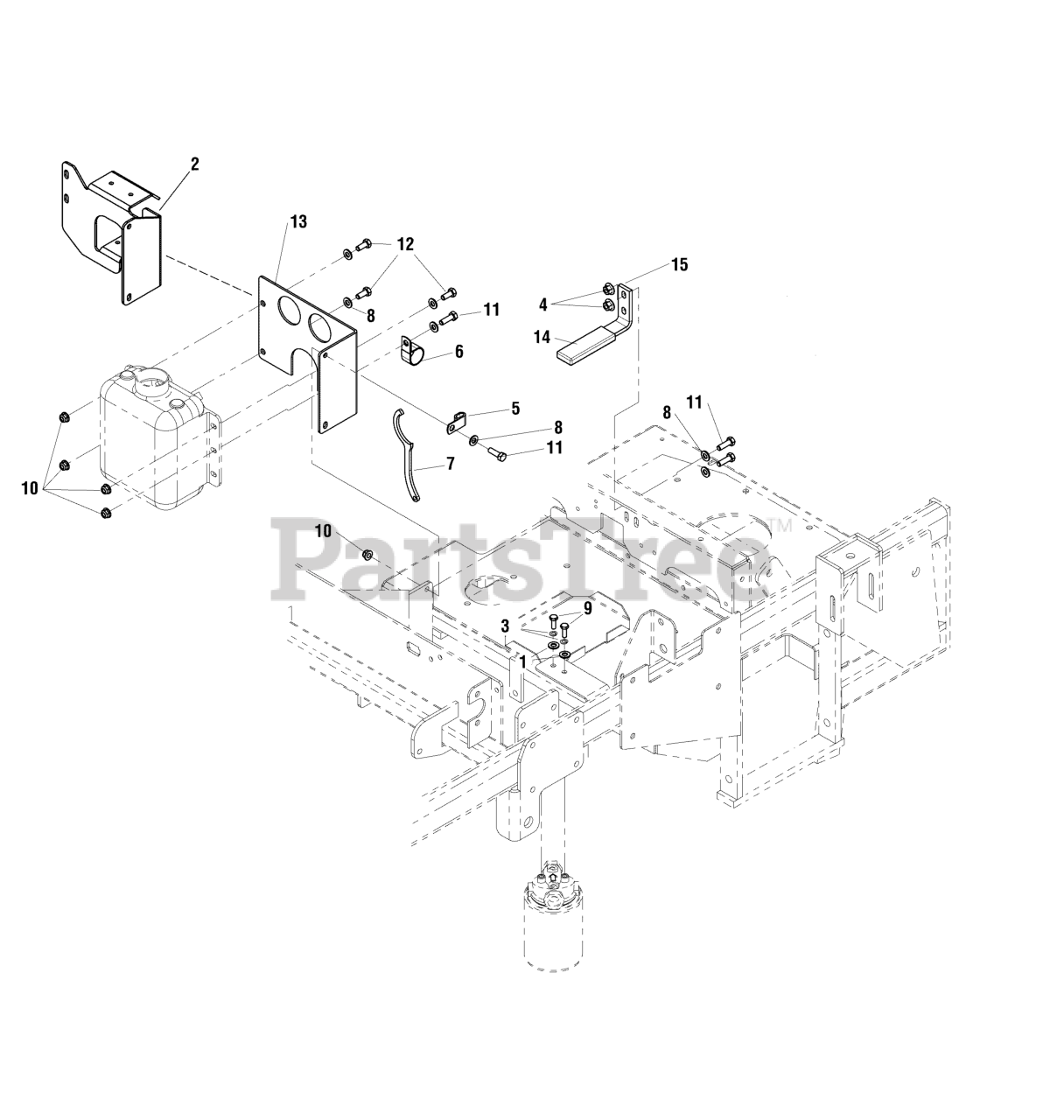

Reservoir Mount & Battery Group Parts Diagram

  • Title

1

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

2

Ferris 5408093B

MOUNT, HYDRO TANK W/ SUPPORTS
(Superseded to 5408093BFS)

Note: (S/N: 2014809904 & Above)

$50.99

$

Usually ships in 2-12 days

0

3

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

5

Ferris 5025430

CLAMP, 5/16", DOUBLE, WIRE & TUBE
(Superseded to 5025430SM)

$2.99

$

Usually ships in 2-12 days

0

6

Ferris 5023173

CLAMP, HOSE, 1.000 DIA.
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5022853

WRENCH, SPANNER, CZ
(Superseded to 5022853SM)

$15.99

$

Usually ships in 2-12 days

0

8

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Ferris 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

10

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

12

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

13

Ferris 5400504B

MOUNT, HYDRO TANK - RED

Note: (S/N: 2014809903 & Below)

$19.99

$

Usually ships in 2-12 days

0

14

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0

15

Ferris 5401409B

RETAINER, BATTERY - RED

Note: (Includes Ref. No. 14)

$

$

Currently unavailable
