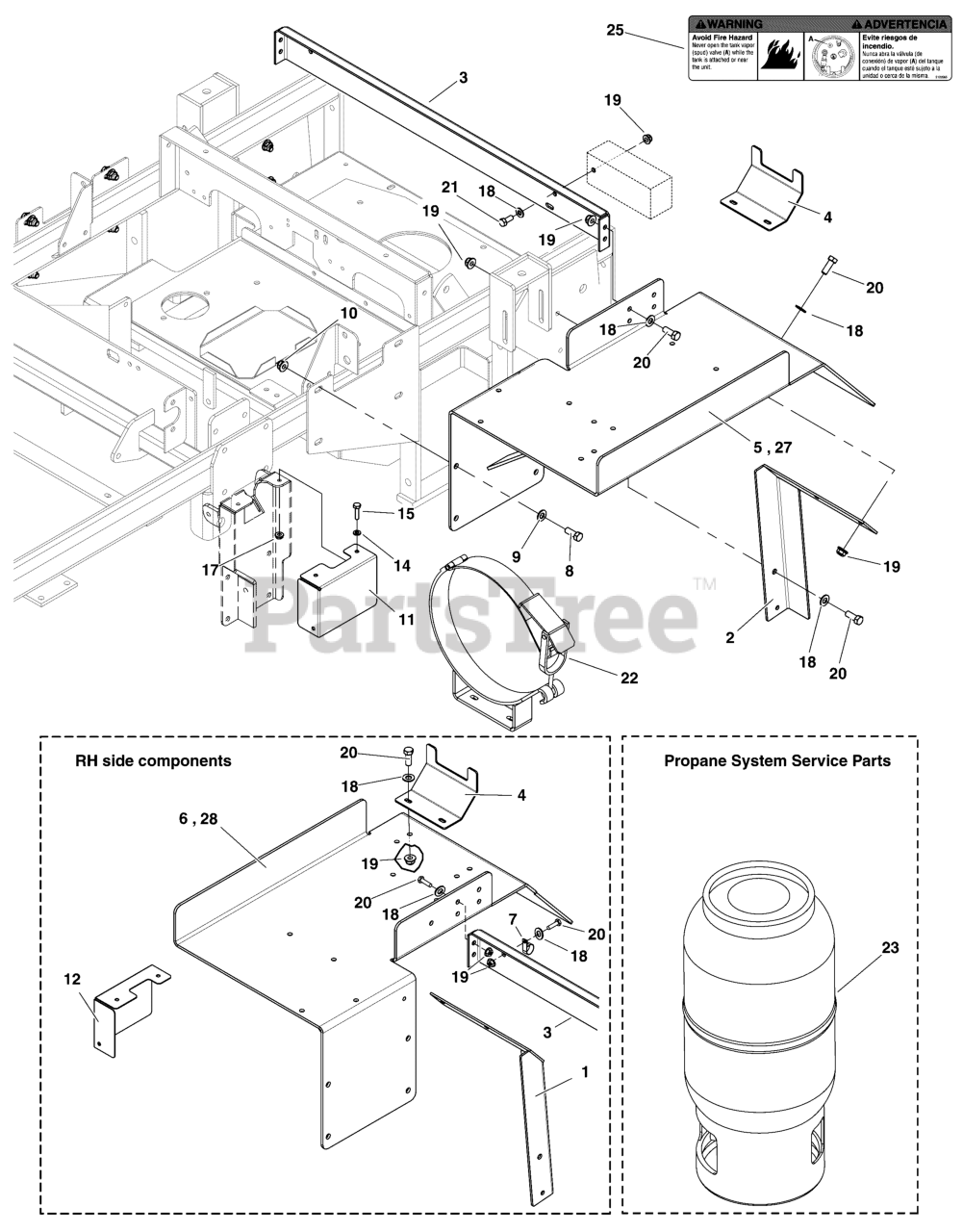

IS 3100Z (5900691) - Ferris IS3100Z Series Zero-Turn Mower, Briggs & Stratton Propane Tank Mount Group Parts Diagram

IS3100Z Series Zero-Turn Mower, Briggs & Stratton

Propane Tank Mount Group Parts Diagram

  • Title

1

Ferris 5407570B

WELD, TANK MOUNT, PROPANE, RH - RED
(Superseded to 5407570BFS)

$116.99

$

Usually ships in 2-12 days

0

2

Ferris 5407592B

WELD, TANK MOUNT, PROPANE, LH - RED
(Superseded to 5407592BFS)

$116.99

$

Usually ships in 2-12 days

0

3

Ferris 5404213B

PLATE, BRACKET, REGULATOR MOUNT, PROPANE - RED

$64.99

$

Usually ships in 2-12 days

0

4

Ferris 5403947B

PLATE, BRACKET, TANK MOUNT - RED

$28.99

$

Usually ships in 2-12 days

0

5

Ferris 5403521B

WELD, TANK MOUNT - LH

Note: (S/N: 2014953566 & Below)

$216.99

$

Usually ships in 2-12 days

0

6

Ferris 5403520B

WELD, TANK MOUNT - RH

Note: (S/N: 2014953566 & Below)

$216.99

$

Usually ships in 2-12 days

0

7

Ferris 5023173

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

9

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

11

Ferris 5403618B

PLATE, SWITCH, GUARD, LH - RED

$17.99

$

Usually ships in 2-12 days

0

12

Ferris 5403617B

PLATE SWITCH GUARD RH - RED

$17.99

$

Usually ships in 2-12 days

0

13

Ferris 5025010X16

BOLT, 1/4-20 X 2", GD5
(Superseded to 5025010X16FS)

Note: (For bolting hose clamps to engine.)

$2.99

$

Usually ships in 2-12 days

0

14

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

Note: (Qty: 2 for bolting hose clamps to engine.)

$4.49

$

Usually ships in 2-12 days

0

15

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

16

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

Note: (Not shown. For bolting propane tank strap brackets tank mount weldments.)

$3.99

$

In Stock, only 4 left!

0

17

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

19

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

21

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2" GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

22

Ferris 5101427

STRAP, BRACKET KIT, PROPANE TANK

Note: (Not shown.)

$319.99

$

Usually ships in 2-12 days

0

23

Ferris 5101707

TANK, PROPANE - WORTHINGTON

$832.99

$

Usually ships in 2-12 days

0

24

ENGINE, BRIGGS & STRATTON, PROPANE READY

$

$

Not available

25

Ferris 5101425

SWITCH, OIL PRESSURE

Note: (Not illustrated.)

$113.99

$

Usually ships in 2-12 days

0

26

Ferris 5102666

DECAL, WARNING, VAPOR VALVE
(Superseded to 5103596)

$34.99

$

Usually ships in 2-12 days

0

27

Ferris 5406713B

WELD, TANK MOUNT - LH

Note: (S/N: 2014953567 & Above)

$307.99

$

Usually ships in 2-12 days

0

28

Ferris 5406714B

WELD, TANK MOUNT - RH

Note: (S/N: 2014953567 & Above)

$116.99

$

Usually ships in 2-12 days

0
