IS 3100Z (5900691) - Ferris IS3100Z Series Zero-Turn Mower, Briggs & Stratton Deck Lift Group (S/N: 2000729894 & Above) Parts Diagram

IS3100Z Series Zero-Turn Mower, Briggs & Stratton

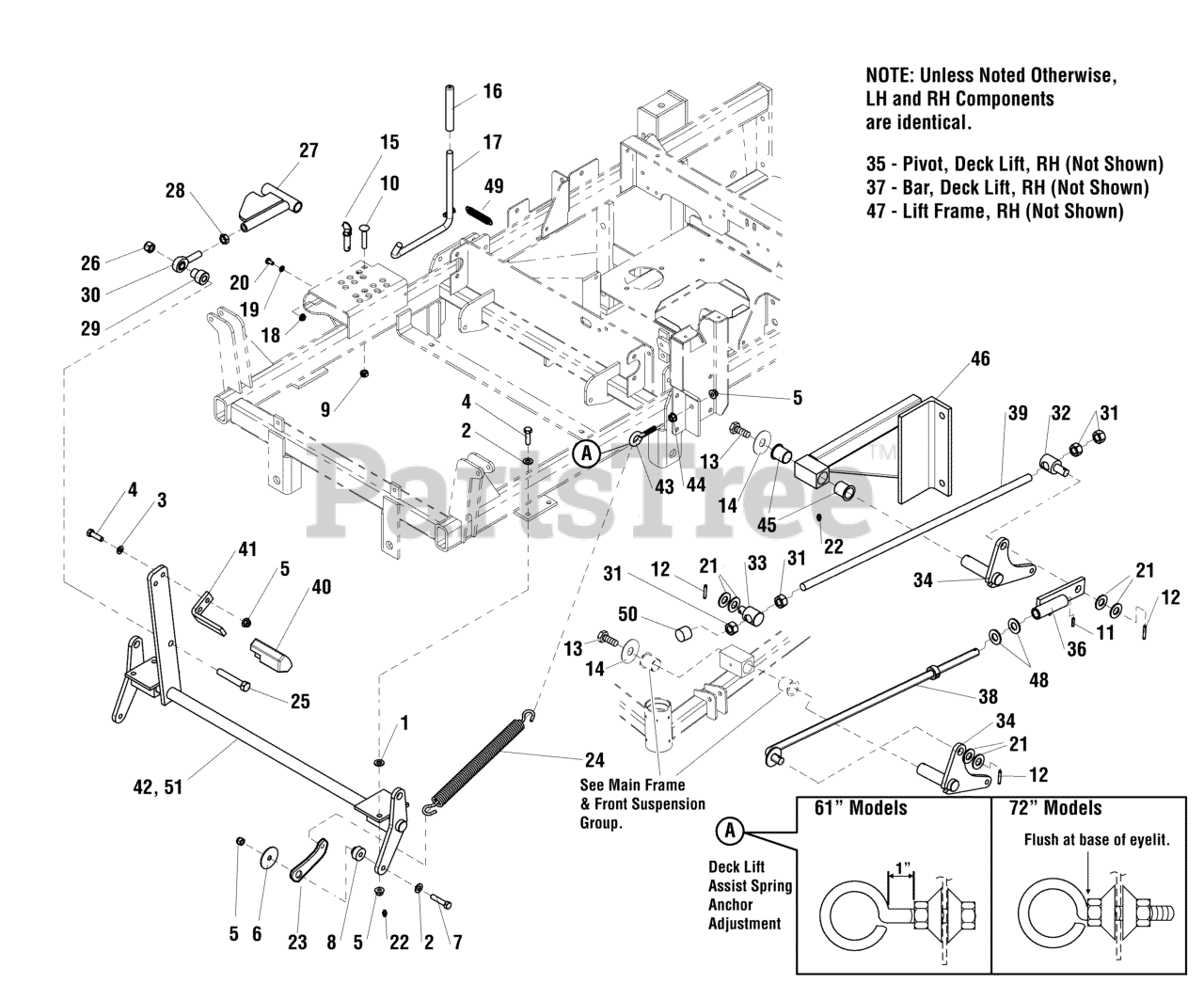

Deck Lift Group (S/N: 2000729894 & Above) Parts Diagram

  • Title

1

Ferris 5025293

WASHER, 3/8" GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

2

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

5

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

6

Ferris 5025326

WASHER, 2.00 X .390 X .135
(Superseded to 5025326SM)

$4.49

$

Usually ships in 2-12 days

0

7

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

Usually ships in 2-12 days

0

8

Ferris 5061227

BUSHING, DECK PIVOT
(Superseded to 5061227SM)

$13.99

$

Usually ships in 2-12 days

0

9

Ferris 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

10

Ferris 5025146X16

BOLT, 3/8-16 X 2", CARRIAGE
(Superseded to 5025146X16SM)

$4.49

$

In Stock, only 1 left!

0

11

Ferris 2816001

PIN, ROLL, 3/16 X 1" PLAIN
(Superseded to 2816001SM)

$4.49

$

In Stock, Qty 11

0

12

Ferris 5022366

PIN, 3/16" X 1-1/4" SPRING
(Superseded to 5022366SM)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5100548

WASHER, .390 X 1.50 X.109 YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

15

Ferris 5023498

PIN, HITCH, 1/2 X 2.00 OAL, YP
(Superseded to 5023498SM)

$8.99

$

In Stock, only 2 left!

0

16

Ferris 5021880

GRIP, FOAM
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

17

Ferris 5400982A

WELD, DECK LIFT CONTROL, IS3000 - BLK

$93.99

$

Usually ships in 2-12 days

0

18

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

19

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

21

Ferris 5025450

WASHER, SHIM, 5/8" X 18GA. YZ

$2.99

$

In Stock, Qty 5

0

22

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

23

Ferris 5401655B

LINK, SPRING

$6.49

$

Usually ships in 2-12 days

0

24

Ferris 5023355

SPRING, DECK LIFT ASSIST
(Superseded to 5023355SM)

$49.99

$

In Stock, only 1 left!

0

25

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0

26

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

27

Ferris 5400992B

WELD, DECK ADJUST LINK - RED

$67.99

$

Usually ships in 2-12 days

0

28

Ferris 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 20+

0

29

Ferris 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

$10.99

$

In Stock, Qty 20+

0

30

Ferris 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

$42.99

$

In Stock, only 2 left!

0

31

Ferris 5025040

NUT, 5/8-11 HEX
(Superseded to 5025040SM)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5047446

PIVOT, SPRING ROD

$

$

Currently unavailable

33

Ferris 5045447

PIVOT, SPRING ROD
(Superseded to 5045447SM)

$25.99

$

Usually ships in 2-12 days

0

34

Ferris 5402814B

PIVOT,DECK LIFT WELD,LEFT
(Superseded to 5402814A)

$58.99

$

Usually ships in 2-12 days

0

35

Ferris 5402815B

USE 5402815A -PIVOT,DECK LIFT WELD,RIGHT
(Superseded to 5402815AFS)

Note: (Not Shown)

$58.99

$

Usually ships in 2-12 days

0

36

Ferris 5047522B

BAR, DECK LIFT WELD. - LH

$51.99

$

Usually ships in 2-12 days

0

37

Ferris 5047523B

BAR, DECK LIFT WELD. - RH

Note: (Not Shown)

$47.99

$

Usually ships in 2-12 days

0

38

Ferris 5047761

ROD, DECK LIFT ASSEMBLY

Note: (61" Models)

$

$

Currently unavailable

38

Ferris 5100505

ROD, DECK LIFT ASSEMBLY

Note: (72" Models)

$101.99

$

Usually ships in 2-12 days

0

39

Ferris 5061304

ROD, DECK ADJUSTMENT
(Superseded to 5061304SM)

$17.99

$

Usually ships in 2-12 days

0

40

Ferris 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

In Stock, only 1 left!

0

41

Ferris 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

42

Ferris 5400479B

WELD, DECK LIFT SHAFT 3000 - RED
(Superseded to 5404135B)

Note: (S/N: 2000729894 - 2013102109)

$247.99

$

Usually ships in 2-12 days

0

43

Ferris 5025441

EYEBOLT, 3/8-16 X 2 1/2"
(Superseded to 5025441YP)

$11.99

$

Usually ships in 2-12 days

0

44

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

45

Ferris 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

46

Ferris 5061312B

WELD, LIFT FRAME, LH
(Superseded to 5061319B)

$222.99

$

Usually ships in 2-12 days

0

47

Ferris 5061311B

WELD, LIFT FRAME, RH
(Superseded to 5061318B)

Note: (Not Shown)

$222.99

$

Usually ships in 2-12 days

0

48

Ferris 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

Note: (61" Models)

$3.99

$

In Stock, Qty 8

0

49

Ferris 5020639

SPRING, EXTENSION
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

50

Ferris 5101028

CAP, VINYL - .562 X .750 - BLK

$

$

Currently unavailable

51

Ferris 5404135B

WELD, DECK LIFT SHAFT 3100 - RED

Note: (S/N: 2013102110 & Above)

$247.99

$

Usually ships in 2-12 days

0
