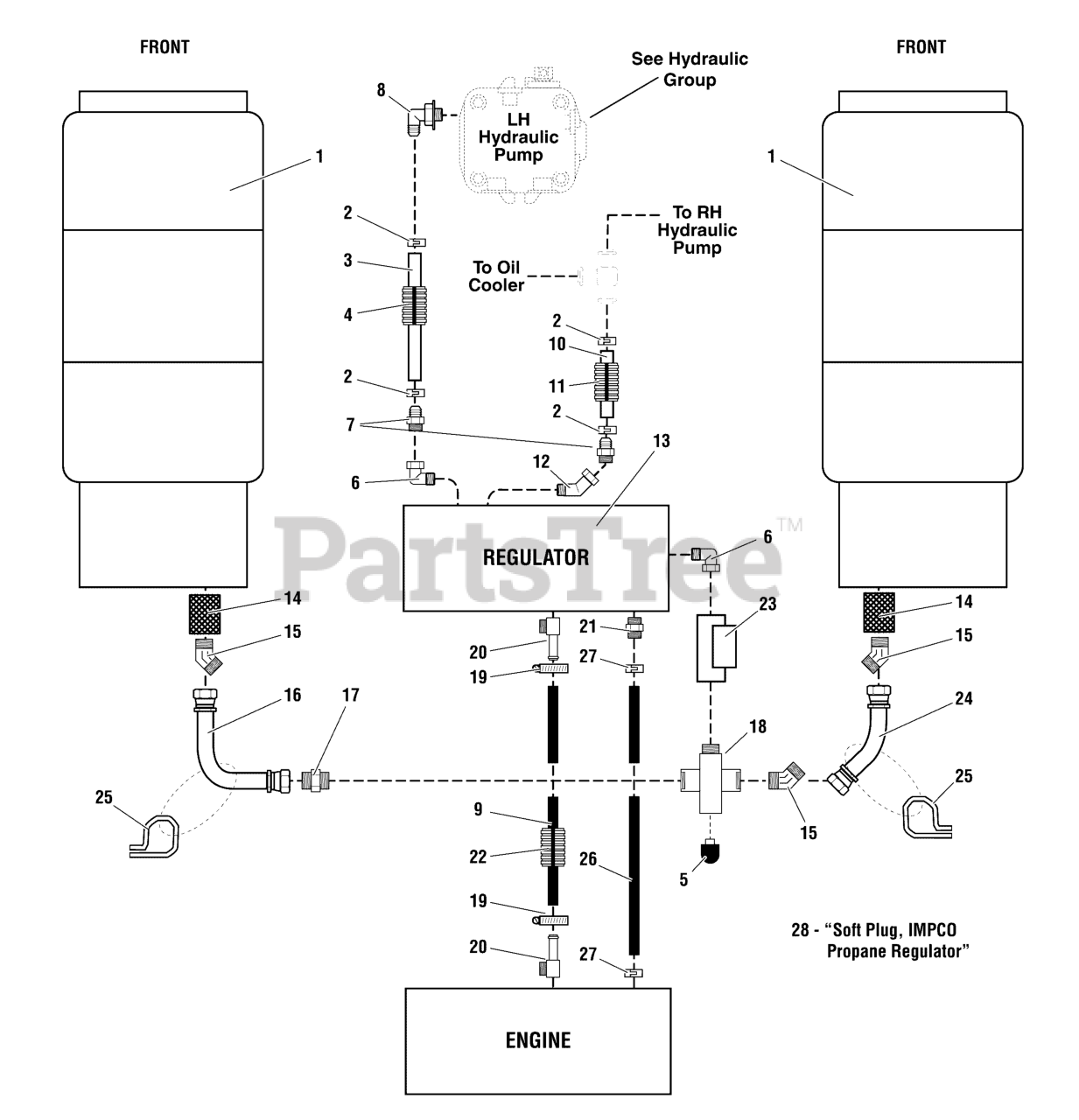

IS 3100Z (5900690) - Ferris IS3100Z Series 61" Zero-Turn Mower, 32hp Briggs & Stratton Propane Fuel Supply Group - S/N: 2014953567 & Above Parts Diagram

IS3100Z Series 61" Zero-Turn Mower, 32hp Briggs & Stratton

Propane Fuel Supply Group - S/N: 2014953567 & Above Parts Diagram

  • Title

1

Ferris 5101707

TANK, PROPANE - WORTHINGTON

$832.99

$

Usually ships in 2-12 days

0

2

Ferris 5023268

CLAMP, Hose
(Superseded to 5023268SM)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5050860X16

HOSE, 3/8" PUSH-LOCK, 16.00"
(Superseded to 5050860X16SM)

$15.99

$

In Stock, only 1 left!

0

4

Ferris 5050861X25

WIRE LOOM, 5/8" ID, 25" LONG

$5.49

$

Usually ships in 2-12 days

0

5

Ferris 5101430

RELIEF VALVE, PROPANE

$64.99

$

Usually ships in 2-12 days

0

6

Ferris 5101570

FITTING, 1/4 NPT STREET ELBOW, PLATED STEEL

$14.99

$

Usually ships in 2-12 days

0

7

Ferris 5101440

FITTING, 3/8 HOSE BARB X 1/4NPT, BRASS

$9.49

$

Usually ships in 2-12 days

0

8

Ferris 5023267

ADAPTER, 90 DEG. 9/16 - 3/8 BARB
(Superseded to 5023267SM)

$30.99

$

Usually ships in 2-12 days

0

9

Ferris 5101433

HOSE, LOW PRESSURE FUEL X 33.25, PROPANE

$53.99

$

Usually ships in 2-12 days

0

10

Ferris 5050860X15

HOSE, 3/8" PUSH-LOCK, 15.00"

$17.99

$

Usually ships in 2-12 days

0

11

Ferris 5050861X11

WIRE LOOM, 5/8" ID, 11" LONG

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5101452

FITTING, 1/4NPT X 45, STREET ELBOW BRASS

$7.49

$

Usually ships in 2-12 days

0

13

Ferris 5101423

REGULATOR, PROPANE

Note: (Includes Ref Nos 20 & 28)

$420.99

$

Usually ships in 2-12 days

0

14

Ferris 5101429

COUPLING, PROPANE TANK

$106.99

$

Usually ships in 2-12 days

0

15

Ferris 5101436

FITTING, TEE, 1/4 NPTM X 45 ELBOW BRASS

$27.99

$

Usually ships in 2-12 days

0

16

Ferris 5103140

HOSE, LH PROPANE

$136.99

$

Usually ships in 2-12 days

0

17

Ferris 5101437

FITTING, 1/4 NPTM STRAIGHT, BRASS

$10.99

$

Usually ships in 2-12 days

0

18

Ferris 5103139

FITTING, MALE PIPE CROSS

$24.99

$

Usually ships in 2-12 days

0

19

Ferris 5021164

CLAMP, #10 HOSE, STAINLESS
(Superseded to 5021164SM)

$3.99

$

In Stock, only 3 left!

0

20

Ferris 5101569

FITTING, 3/8NPT-1/2 HOSE, BARB PLATED STEEL

Note: (SV)

$12.99

$

Usually ships in 2-12 days

0

21

Ferris 5101439

FITTING, 1/4 HOSE BARB X 1/8NPT, BRASS

$

$

Currently unavailable

22

Ferris 5100384X32

LOOM, CONVOLUTED SPLIT, 1" ID

$

$

Currently unavailable

23

Ferris 5404096

VALVE, LOCK OFF ASSEMBLY

$171.99

$

Usually ships in 2-12 days

0

24

Ferris 5101431

HOSE, RH FUEL SUPPLY ASM X 36, PROPANE

$216.99

$

Usually ships in 2-12 days

0

25

Ferris 5023173

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

26

Ferris 5404026

HOSE, 1/4 ID VAC HOSE X 29, PROPANE

$20.99

$

Usually ships in 2-12 days

0

27

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

28

Ferris 5101423X1

SOFT PLUG, IMPCO PROPANE REGULATOR

Note: (Not illustrated)(SV)

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5050840X4

BLACK SOFTONE Q-TRIM, 4.00" LONG

Note: (Not illustrated)

$

$

Currently unavailable
