IS 3100Z (5900611) - Ferris IS3100Z Series 61" Zero-Turn Mower, 26hp Kawasaki Electrical Schematic - Ignition Grounding Circuit/Operator Presence - Kawasaki - Liquid Cooled Parts Diagram

IS3100Z Series 61" Zero-Turn Mower, 26hp Kawasaki

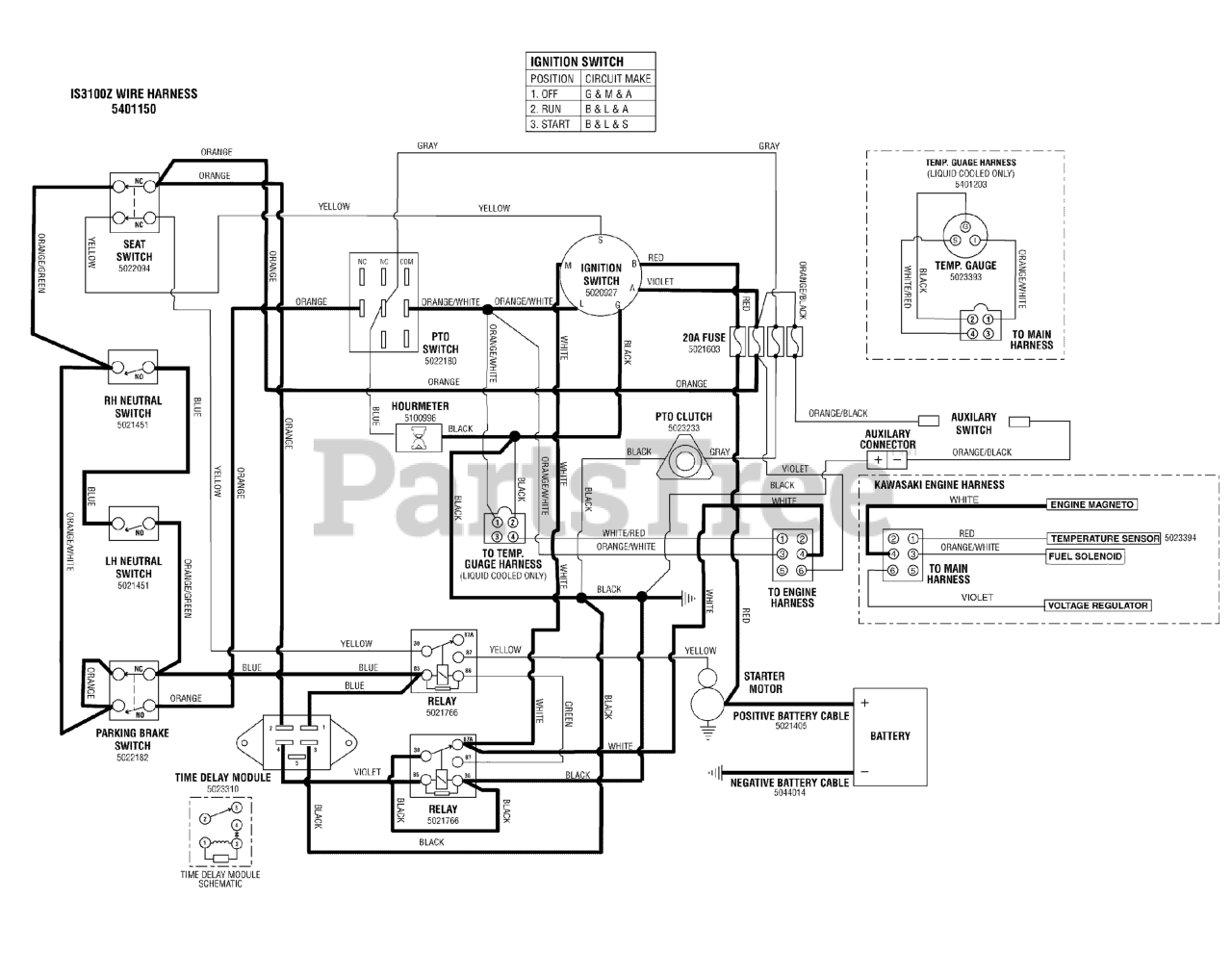

Electrical Schematic - Ignition Grounding Circuit/Operator Presence - Kawasaki - Liquid Cooled Parts Diagram
