IS 3100Z (5900302) - Ferris IS3100Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton Deck Lift Group - S/N: 2016270589 & Above Parts Diagram

IS3100Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton

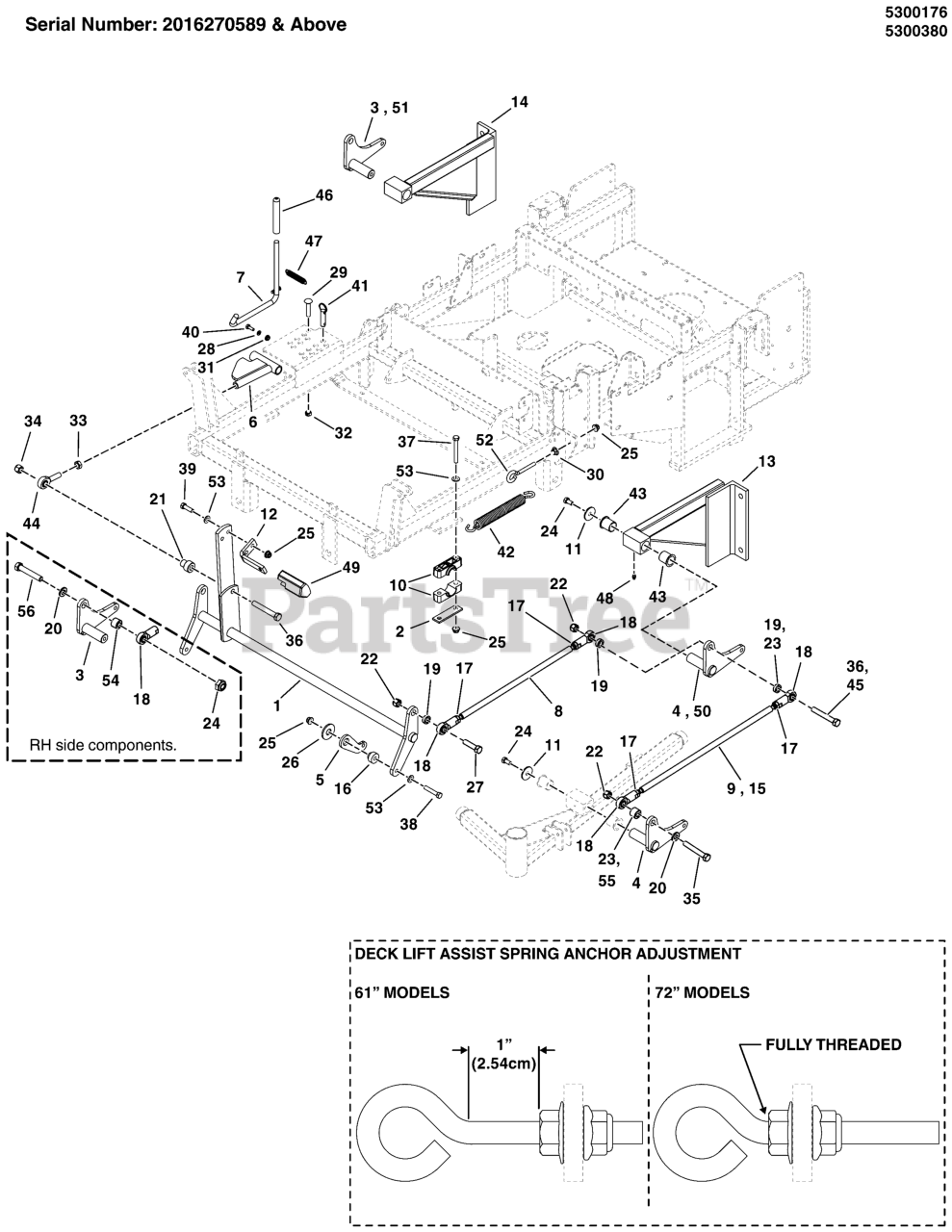

Deck Lift Group - S/N: 2016270589 & Above Parts Diagram

  • Title

1

Ferris 5410440B

WELD, DECK LIFT SHAFT IS3100Z - RED

$142.99

$

Usually ships in 2-12 days

0

2

Ferris 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5401672B

WELD,DECK LIFT LEVER,RH
(Superseded to 5401672A)

Note: (Qty: 1 - 72" Models)

$67.99

$

Usually ships in 2-12 days

0

4

Ferris 5401671B

WELD, DECK LIFT LEVER, LH
(Superseded to 5401671A)

Note: (Qty: 1 - 72" Models)

$61.99

$

Usually ships in 2-12 days

0

5

Ferris 5401655B

LINK, SPRING, IS3100Z - RED

$6.49

$

Usually ships in 2-12 days

0

6

Ferris 5400992B

WELD, DECK ADJUST LINK - RED

$67.99

$

Usually ships in 2-12 days

0

7

Ferris 5400982A

WELD, DECK LIFT CONTROL, IS3000 - BLK

$93.99

$

Usually ships in 2-12 days

0

8

Ferris 5103710

ROD, DECK LIFT, EXTERNAL THRD, 20.63
(Superseded to 84003298)

$27.99

$

Usually ships in 2-12 days

0

9

Ferris 5103711

ROD, DECK LIFT, EXTERNAL THRD, 23.38
(Superseded to 84002474)

Note: (61" Models Only)

$34.99

$

Usually ships in 2-12 days

0

10

Ferris 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

11

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

12

Ferris 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

13

Ferris 5061312B

WELD, LIFT FRAME, LH
(Superseded to 5061319B)

$222.99

$

Usually ships in 2-12 days

0

14

Ferris 5061311B

WELD, LIFT FRAME, RH
(Superseded to 5061318B)

$222.99

$

Usually ships in 2-12 days

0

15

Ferris 5103747

ROD, DECK LIFT, EXTERNAL THRD, 26.13

Note: (72" Models Only)

$39.99

$

Usually ships in 2-12 days

0

16

Ferris 5061227

BUSHING, DECK PIVOT
(Superseded to 5061227SM)

$13.99

$

Usually ships in 2-12 days

0

17

Ferris 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 18

0

18

Ferris 1702779

JOINT-BALL .500-20 THD .500ID, CLR ZINC
(Superseded to 1702779SM)

$28.99

$

In Stock, Qty 12

0

19

Ferris 5101928

SPACER, .56 X .90 X .31

Note: (Qty: 4 - 72" Models)

$6.49

$

Usually ships in 2-12 days

0

20

Ferris 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

21

Ferris 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

Note: (2 per tire)

$10.99

$

In Stock, Qty 20+

0

22

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

23

Ferris 5045178

SPACER, .52 X 1.00 X .75, CZ
(Superseded to 5045178SM)

Note: (72" Models Only)

$7.49

$

In Stock, Qty 6

0

24

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

26

Ferris 5025326

WASHER, .39 X 2.00 X X .14
(Superseded to 5025326SM)

$4.49

$

Usually ships in 2-12 days

0

27

Ferris 5025017X16

BOLT, 1/2-13 X 2" GD5 CZ
(Superseded to 5025017X16YP)

$4.49

$

In Stock, only 1 left!

0

28

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

29

Ferris 5025146X16

BOLT, 3/8-16 X 2, CARRIAGE
(Superseded to 5025146X16SM)

$4.49

$

Usually ships in 2-12 days

0

30

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

31

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

32

Ferris 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

33

Ferris 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 18

0

34

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

35

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

Note: (Qty: 1 - 61" Models)

$5.49

$

In Stock, Qty 8

0

36

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

Note: (Qty: 3 - 72" Models)

$5.99

$

In Stock, only 2 left!

0

37

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

38

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

39

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

40

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

41

Ferris 5023498

PIN, HITCH, 1/2 X 2.00 OAL, YP
(Superseded to 5023498SM)

$8.99

$

In Stock, only 2 left!

0

42

Ferris 5023355

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK
(Superseded to 5023355SM)

$49.99

$

Usually ships in 2-12 days

0

43

Ferris 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

44

Ferris 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

$42.99

$

In Stock, only 2 left!

0

45

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

Note: (61" Models Only)

$5.99

$

In Stock, only 2 left!

0

46

Ferris 5021880

GRIP, FOAM, .475 X 4.35 X .095
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

47

Ferris 5020639

SPRING-EXT, .500 OD X 3.50 LG X .058 WR
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

48

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

49

Ferris 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

Usually ships in 2-12 days

0

50

Ferris 5402812A

WELD, DECK LIFT LEVER, LH - BLK

Note: (72" Models Only)

$

$

Currently unavailable

51

Ferris 5402811A

WELD, DECK LIFT LEVER, RH - BLK

Note: (72" Models Only)

$

$

Currently unavailable

52

Ferris 5025441

EYE BOLT, 3/8-16 X 2-1/2
(Superseded to 5025441YP)

$11.99

$

Usually ships in 2-12 days

0

53

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

54

Ferris 5044673

SPACER, .52 X 1.0 X .875
(Superseded to 5044673SM)

Note: (61" Models Only)

$8.99

$

In Stock, only 1 left!

0

55

Ferris 5101161

SPACER, .52 X 1.0 X .625
(Superseded to 5101161YP)

Note: (61" Models Only)

$8.99

$

In Stock, only 1 left!

0

56

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

Note: (61" Models Only)

$5.99

$

In Stock, Qty 11

0
