IS 3000Z (5901060) - Ferris IS3000Z Series 61" Zero-Turn Mower, 27hp Kohler (SN: 3630 & Below) 61" Mower Deck - Rollers & Casters Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 27hp Kohler

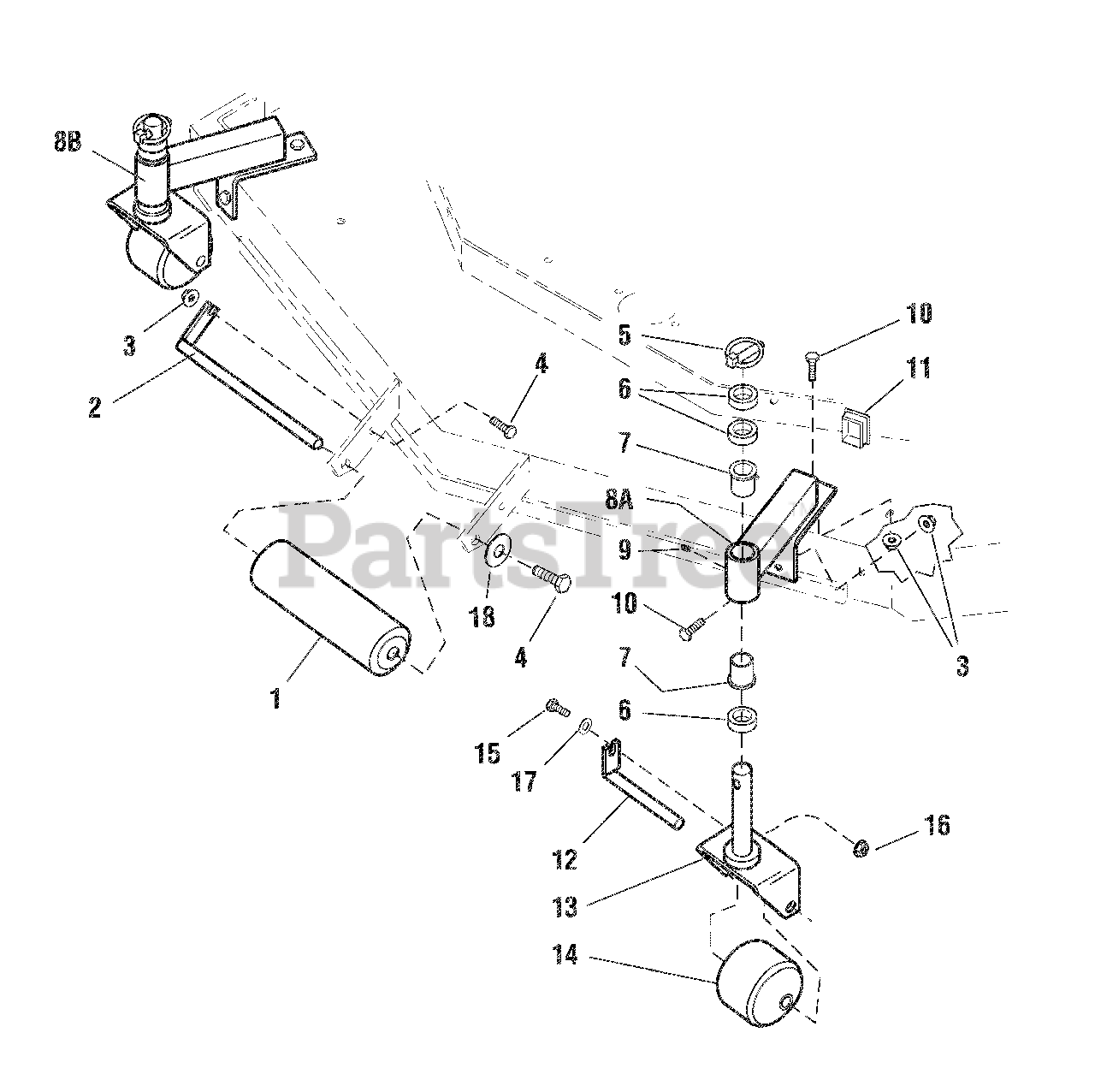

61" Mower Deck - Rollers & Casters Parts Diagram

  • Title
1

Ferris 5020785

ROLLER, DECK
(Superseded to 5020785SM)

$29.99

$

In Stock, Qty 20+

0

2

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

$46.99

$

In Stock, only 2 left!

0

3

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

4

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

5

Ferris 5020655

PIN, LYNCH, 7/16"
(Superseded to 5020655SM)

$10.99

$

In Stock, only 2 left!

0

6

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 4 left!

0

7

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

8A

Ferris 5600280

ASSM, ARM, DECK CASTER, LH

Note: (Includes bushing and grease fitting)

$117.99

$

Usually ships in 2-12 days

0

8B

Ferris 5600279

ASSM, ARM, DECK CASTER, RH

Note: (Includes bushings and grease fitting)

$117.99

$

Usually ships in 2-12 days

0

9

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

10

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5022098

CAP, 1-1/2" X 2" X 11GA, PLASTIC
(Superseded to 5022098SM)

$3.99

$

In Stock, Qty 5

0

12

Ferris 5045034B

WELD, CASTER ROLLER PIN - RED
(Superseded to 5045034BFS)

$31.99

$

Usually ships in 2-12 days

0

13

Ferris 5045188B

WELD, CASTER YOKE - RED
(Superseded to 5045188BFS)

$107.99

$

In Stock, only 2 left!

0

14

Ferris 5022060

ROLLER, Caster
(Superseded to 5022060SM)

$44.99

$

In Stock, Qty 11

0

15

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

16

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

17

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

18

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0
