IS 3000Z (5901059) - Ferris IS3000Z Series 61" Zero-Turn Mower, 26hp Kawasaki Wheels & Tires Group Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 26hp Kawasaki

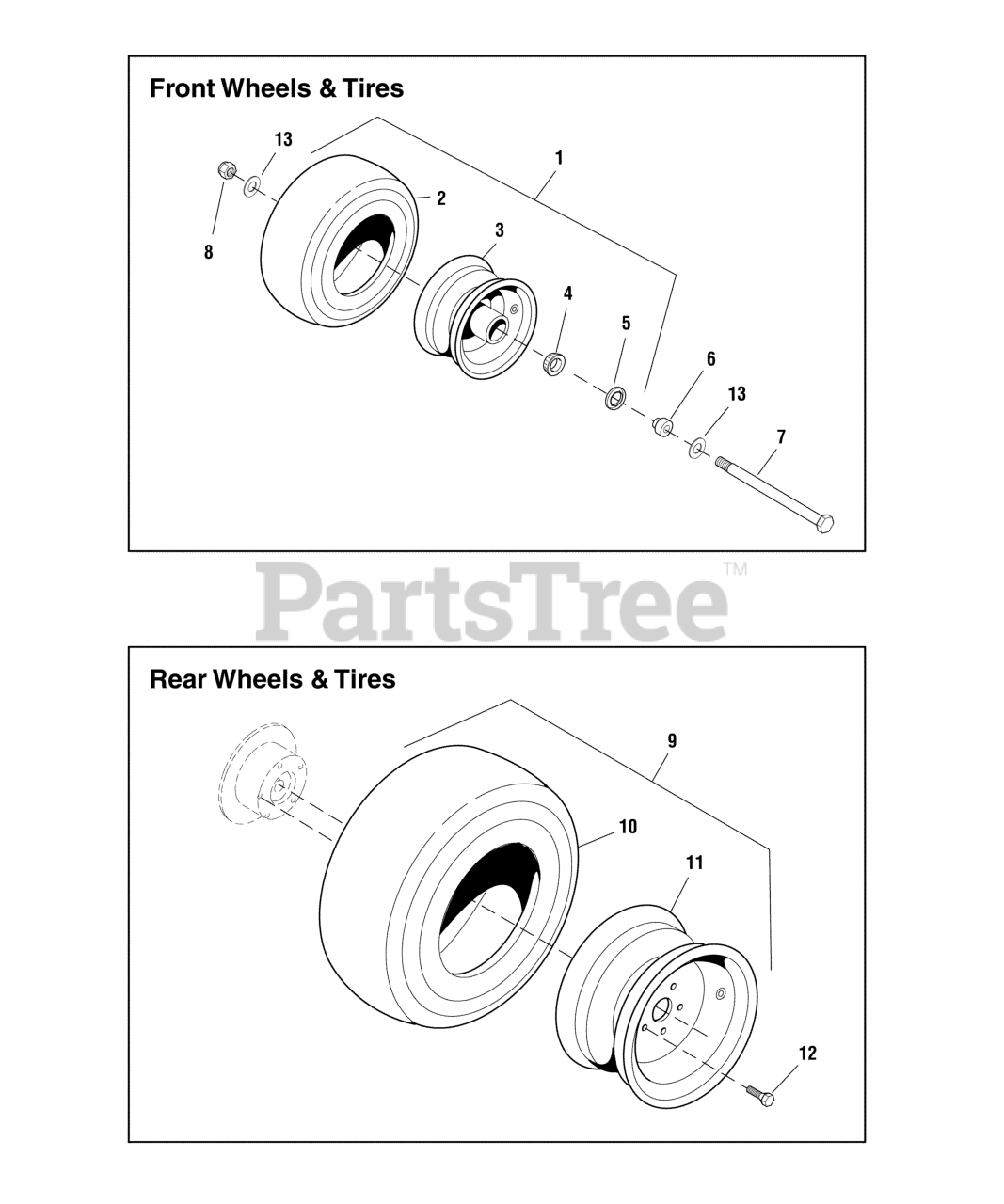

Wheels & Tires Group Parts Diagram

  • Title

1

Ferris 5023136

TIRE ASSM, 13 X 6.5 - 6, PNE / TB
(Superseded to 5023136YP)

Note: (Includes Ref No. 2 - 5)

$198.99

$

Usually ships in 2-12 days

0

2

Ferris 5022577

TIRE, RUBBER ONLY

$

$

Currently unavailable

3

Ferris 5023136X1

WHEEL ASSEMBLY, for 13 x 6.5 x 6 Tires, Complete
(Superseded to 5023136X1YP)

Note: (Includes Ref No. 4 & 5)

$195.99

$

In Stock, only 1 left!

0

4

Ferris 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (2 per tire)

$12.99

$

In Stock, Qty 20+

0

5

Ferris 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (2 per tire)

$9.99

$

In Stock, Qty 20+

0

6

Ferris 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

Note: (2 per tire)

$10.99

$

In Stock, Qty 20+

0

7

Ferris 5025017X72

BOLT, 1-2/13 x 9
(Superseded to 5025017X72YP)

$11.99

$

In Stock, Qty 19

0

8

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

9

Ferris 5023365

TIRE WHEEL ASM, 24X12.00-12, TURF MASTER
(Superseded to 5023365YP)

Note: (Includes Ref No. 10 & 11)

$462.99

$

Usually ships in 2-12 days

0

10

Ferris 5023240X1

TIRE, 24 X 12 X 12

$

$

Currently unavailable

11

Ferris 5023364

WHEEL, 12 X 8.5

$

$

Currently unavailable

12

Ferris 5022215

WHEEL LUG, 1/2 x 1-5/8
(Superseded to 5022215SM)

$9.99

$

Usually ships in 2-12 days

0
