IS 3000Z (5901059) - Ferris IS3000Z Series 61" Zero-Turn Mower, 26hp Kawasaki Motion Control Group - Upper (S/N: 4912 & below) Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 26hp Kawasaki

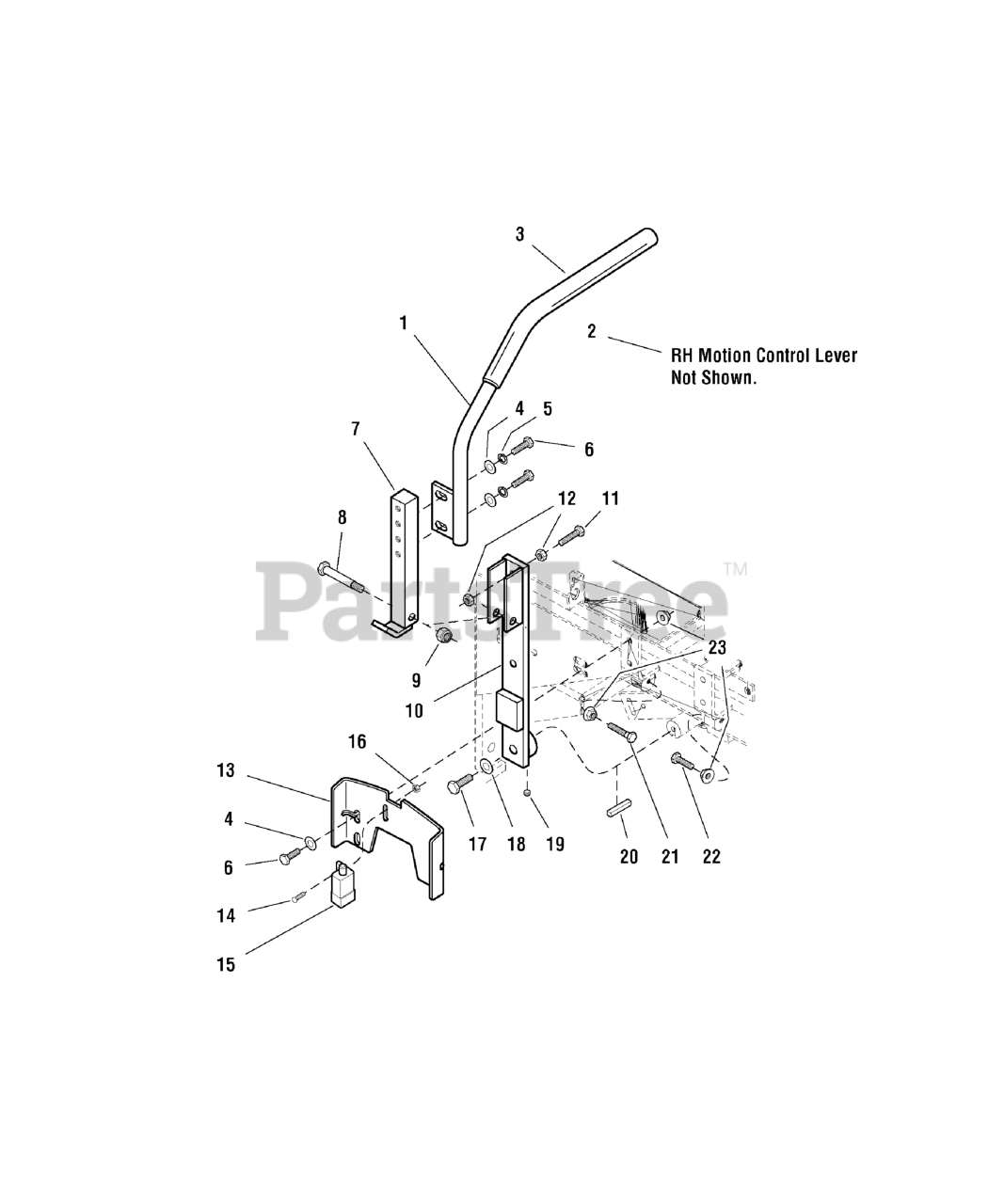

Motion Control Group - Upper (S/N: 4912 & below) Parts Diagram

  • Title

1

Ferris 5045913B

MOTION CONTROL LEVER-RH

$110.99

$

Usually ships in 2-12 days

0

2

Ferris 5045912B

MOTION CONTROL LEVER-LH

Note: (Not Shown)

$110.99

$

Usually ships in 2-12 days

0

3

Ferris 5022068

GRIP, Foam
(Superseded to 5022068SM)

$11.99

$

Usually ships in 2-12 days

0

4

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

7

Ferris 5049382B

WELD, CONTROL HANDLE BASE

$50.99

$

Usually ships in 2-12 days

0

8

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

10

Ferris 5414877B

WELD, CONTROL LEVER, 2" BLOCK

$

$

Currently unavailable

11

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

12

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5045902B

NEUTRAL LOCK PLATE

$30.99

$

Usually ships in 2-12 days

0

14

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

15

SWITCH (see electrical group)

$

$

Not available

16

Ferris 25029

NUT, #10-24 Hex

$

$

Currently unavailable

17

Ferris 5025323

BOLT, 3/8-16 x 1-1/4 w/ patch

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5025278X2

SET SCREW, 5/16-18 x 1/4 w/ patch
(Superseded to 5025531)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 2 left!

0

21

Ferris 5025011X14

BOLT, 5/16-18 x 1-3/4
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

22

Ferris 5025011X10

BOLT, 5/16-18 x 1-1/4
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 3 left!

0
