IS 3000Z (5901059) - Ferris IS3000Z Series 61" Zero-Turn Mower, 26hp Kawasaki Motion Control Group - Lower Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 26hp Kawasaki

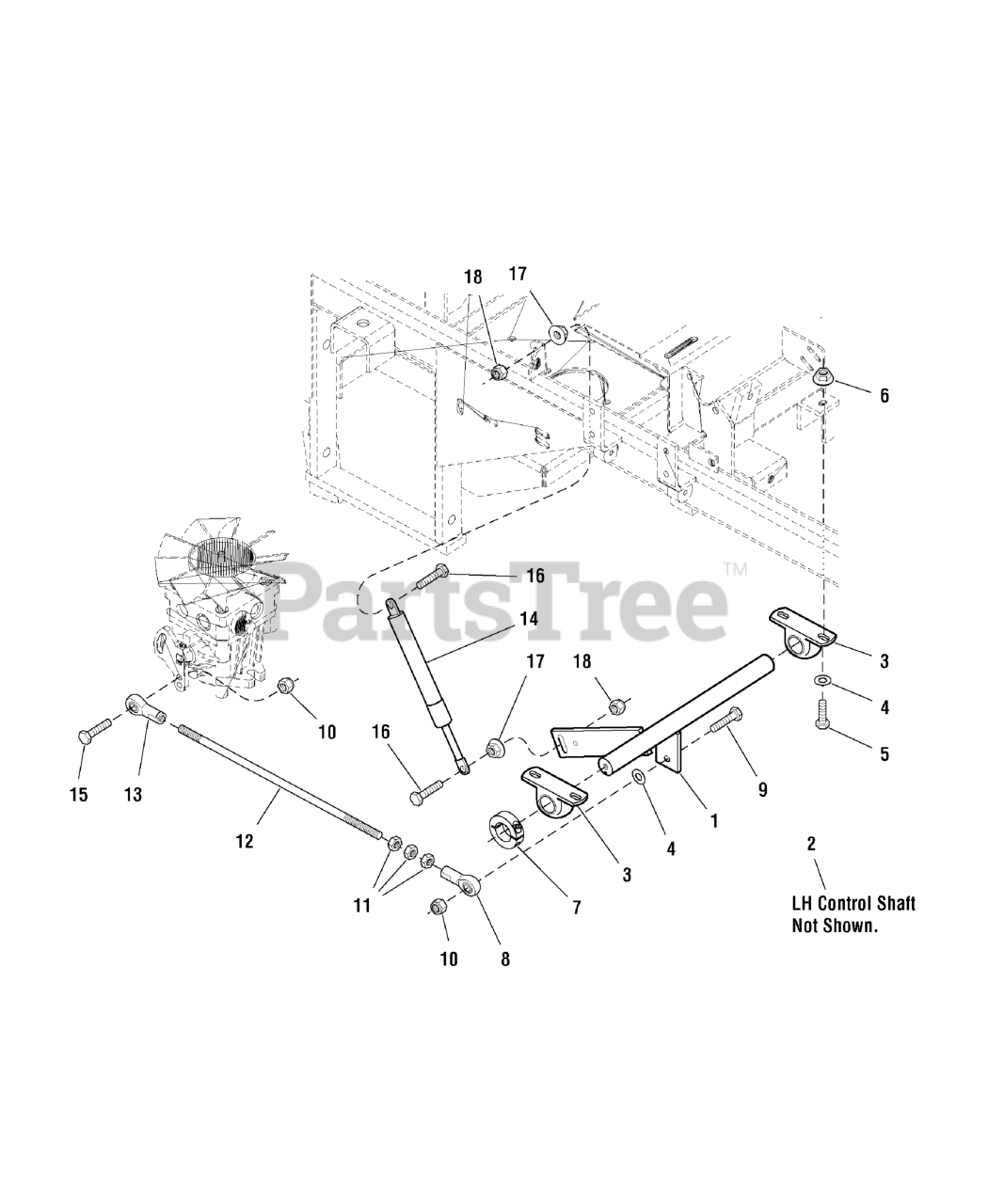

Motion Control Group - Lower Parts Diagram

  • Title
1

Ferris 5046405B

CONTROL SHAFT-RH

$36.99

$

Usually ships in 2-12 days

0

2

Ferris 5046404B

CONTROL SHAFT-LH

Note: (Not Shown)

$48.99

$

Usually ships in 2-12 days

0

3

Ferris 5022630

BEARING, Pillow Block
(Superseded to 5022630SM)

$23.99

$

Usually ships in 2-12 days

0

4

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

6

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

7

Ferris 5020602

COLLAR, 1" Split
(Superseded to 5020602SM)

$22.99

$

In Stock, only 1 left!

0

8

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

9

Ferris 5025011X10

BOLT, 5/16-18 x 1-1/4
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5025033

NUT, 5/16-24 Hex
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5046420

HYDRO LINKAGE ROD
(Superseded to 5046420SM)

$11.99

$

Usually ships in 2-12 days

0

13

Ferris 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

14

Ferris 5022978

DAMPENER
(Superseded to 5103511YP)

$62.99

$

In Stock, Qty 16

0

15

Ferris 5025011X9

BOLT, 5/16-18 x 1-1/8
(Superseded to 5025011X9SM)

$3.99

$

In Stock, only 1 left!

0

16

Ferris 5025335

BOLT, M8 x 35MM
(Superseded to 5025335SM)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5025355

NUT, M8-1.25 Hex Serrated Flange
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5025354

NUT, M8-1.25 Hex Nylon Lock
(Superseded to 5025354SM)

$3.49

$

Usually ships in 2-12 days

0
