IS 3000Z (5901059) - Ferris IS3000Z Series 61" Zero-Turn Mower, 26hp Kawasaki Electrical Schematic - Ignition Grounding Circuit/Operator Presence - Kawasaki LC Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 26hp Kawasaki

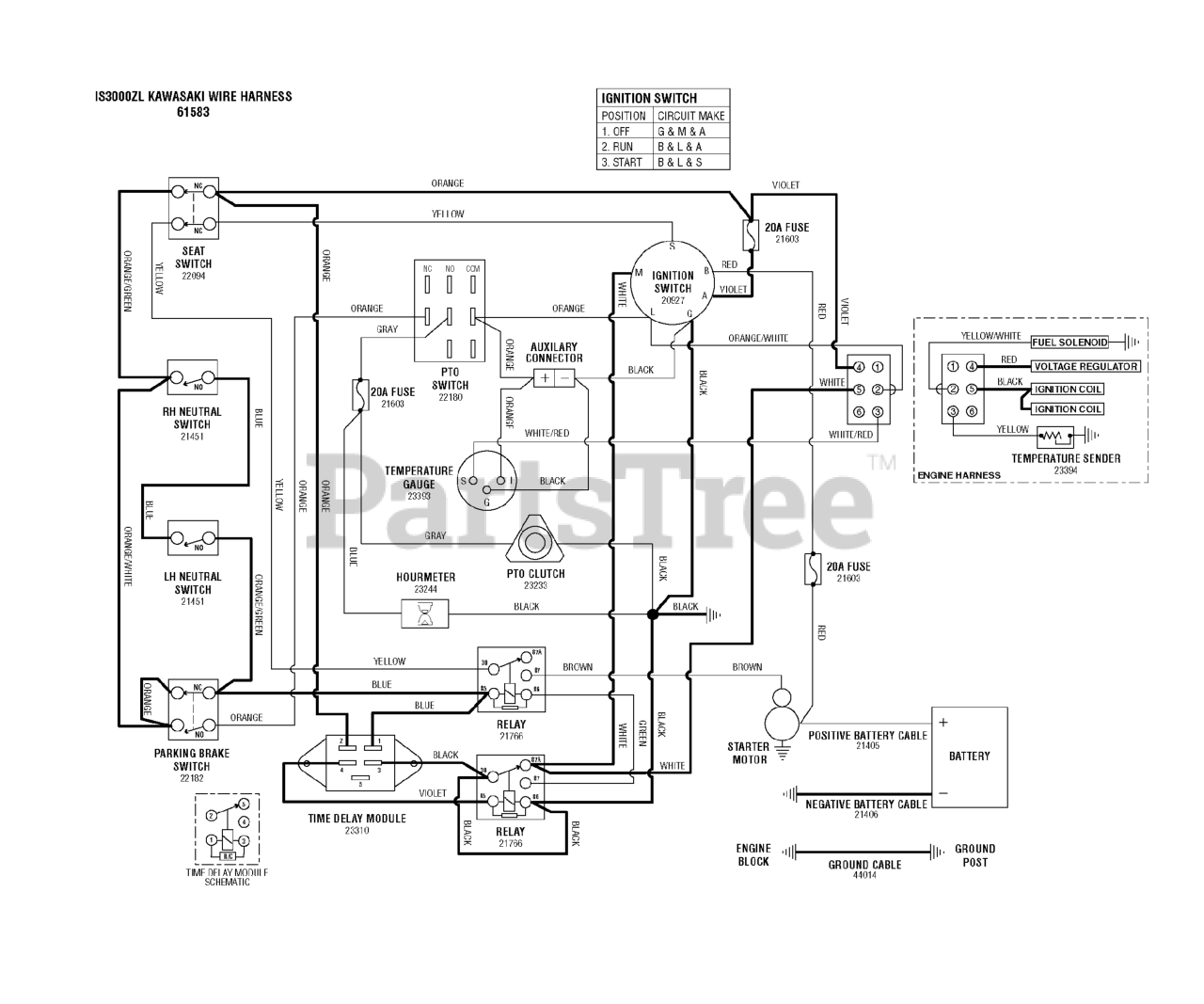

Electrical Schematic - Ignition Grounding Circuit/Operator Presence - Kawasaki LC Parts Diagram
