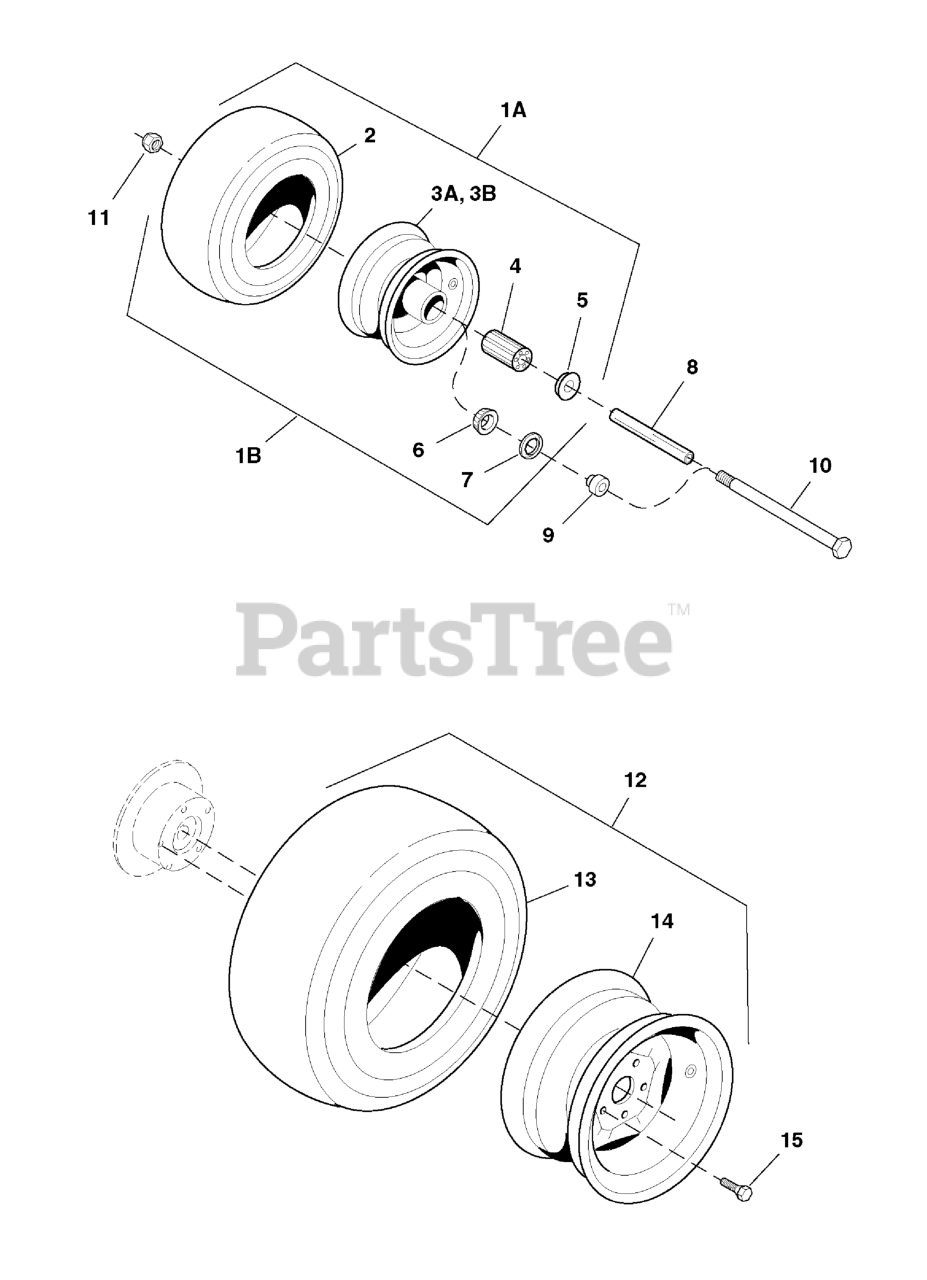

IS 3000Z (5901058) - Ferris IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki Wheels & Tires Group Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki

Wheels & Tires Group Parts Diagram

  • Title

1A

Ferris 5022029S

WHEEL & TIRE ASSEMBLY, 13 x 5.0 x 6, Complete

Note: (Includes Ref No. 2, 3A, 4 & 5, S/N: 101-250)

$

$

Not available

1B

Ferris 5022631S

WHEEL & TIRE ASSEMBLY, 13 x 5.0 x 6, Complete
(Superseded to 5022631SSM)

Note: (Includes Ref No. 2, 3B, 6 & 7, S/N: 251 & above)

$168.99

$

Usually ships in 2-12 days

0

2

Ferris 5022029X1

TIRE, Front, 13 x 5.0 x 6

$112.99

$

Usually ships in 2-12 days

0

3A

Ferris 5022029S

WHEEL ASSEMBLY, for 13 x 5.0 x 6 Tires, Complete

Note: (Includes Ref No. 4 & 5, S/N: 101-250)

$

$

Not available

3B

Ferris 5022631SX1

WHEEL ASSEMBLY, for 13 x 5.0 x 6 Tire, Complete
(Superseded to 5022631SX1SM)

Note: (Includes Ref No. 6 & 7, S/N: 251 & above)

$102.99

$

Usually ships in 2-12 days

0

4

Ferris 5021042

BEARING, Roller

Note: (2 per tire)

$

$

Currently unavailable

5

Ferris 5021043

RETAINER, Bearing

Note: (2 per tire)

$6.99

$

Usually ships in 2-12 days

0

6

Ferris 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (2 per tire)

$12.99

$

In Stock, Qty 20+

0

7

Ferris 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (2 per tire)

$9.99

$

In Stock, Qty 20+

0

8

Ferris 5022100

SHAFT, Caster Axle

Note: (S/N: 101 - 1219)

$14.99

$

Usually ships in 2-12 days

0

9

Ferris 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

Note: (2 per tire, S/N: 251 & above)

$10.99

$

In Stock, Qty 20+

0

10

Ferris 5025017X60

BOLT, 1/2-13 x 7-1/2
(Superseded to 5025488X60FS)

$13.99

$

Usually ships in 2-12 days

0

11

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

12

Ferris 5022396S

WHEEL & TIRE ASSEMBLY, 23 x 10.5 x 12, Complete

Note: (Includes Ref No. 10 & 11)

$

$

Currently unavailable

13

Ferris 5022396X1

TIRE, Rear, 23 x 10.5 x 12
(Superseded to 1722830SM)

$242.99

$

Usually ships in 2-12 days

0

14

Ferris 5022396SX2

WHEEL ASSEMBLY, for 23 x 10.5 x 12 Tires

$

$

Not available

15

Ferris 5022215

WHEEL LUG, 1/2 x 1-5/8
(Superseded to 5022215SM)

$9.99

$

Usually ships in 2-12 days

0
