IS 3000Z (5901058) - Ferris IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki Hydraulic Group Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki

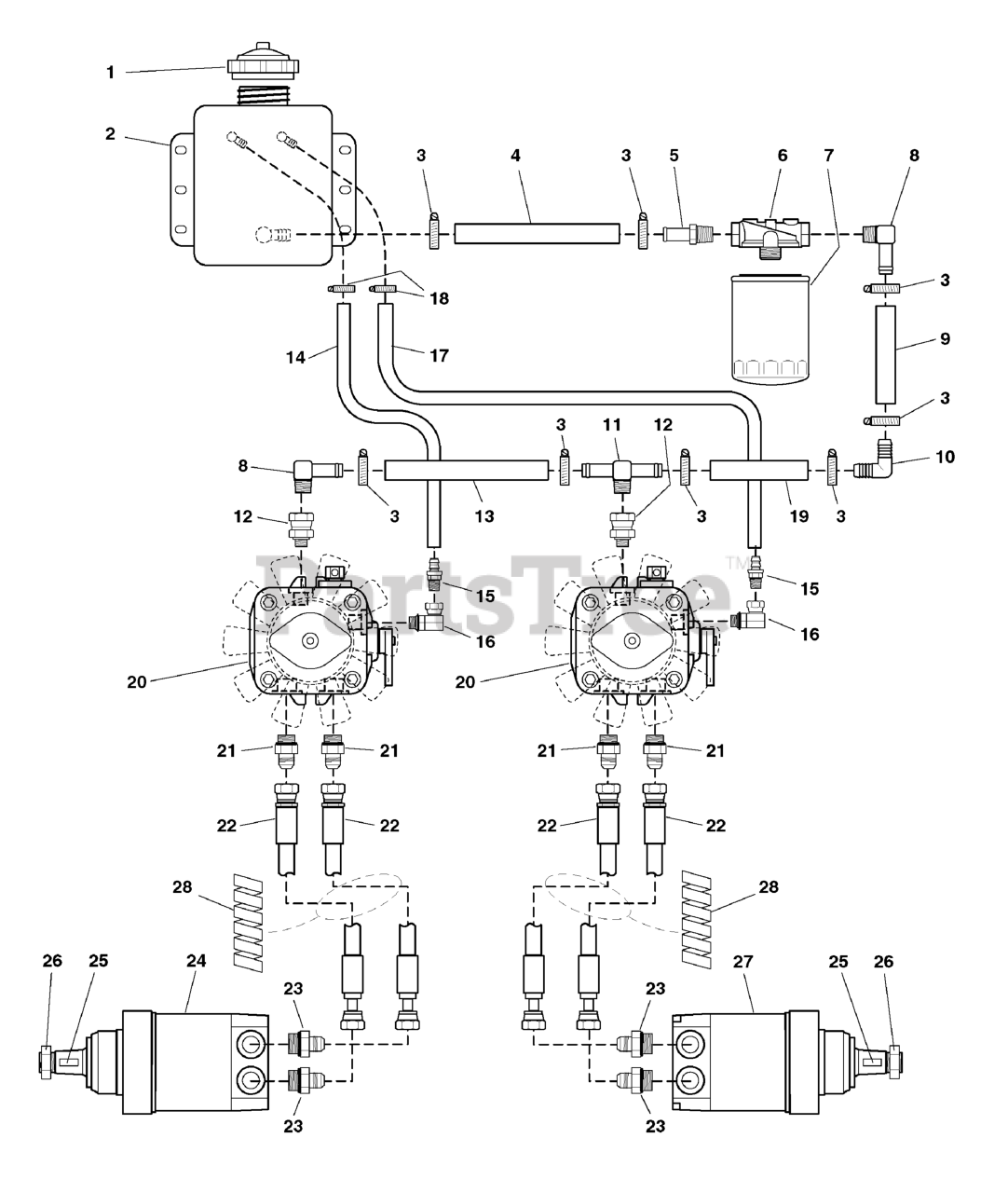

Hydraulic Group Parts Diagram

  • Title

1

Ferris 5021468

CAP, Fuel Tank

$

$

Not available

2

Ferris 5600478

KIT, TANK HYDRAULIC, 3QT W/ FITTINGS

$503.99

$

Usually ships in 2-12 days

0

3

Ferris 5021164

CLAMP, #10 Hose
(Superseded to 5021164SM)

$3.99

$

In Stock, only 3 left!

0

4

Ferris 5050933X11

HOSE, Hydraulic, 11"

$18.99

$

Usually ships in 2-12 days

0

5

Ferris 5022635

FITTING, 1/2" NPT, Straight

$

$

Not available

6

Ferris 5021356

FILTER HEAD
(Superseded to 5021356SM)

$61.99

$

Usually ships in 2-12 days

0

7

Ferris 5021357X1

FILTER, HYDRAULIC, SERVICE PART (PKG)

$31.99

$

Usually ships in 2-12 days

0

8

Ferris 5021233

FITTING, 1/2" NPT, 90 Deg.
(Superseded to 5021233SM)

$12.99

$

Usually ships in 2-12 days

0

9

Ferris 5050933X3P5

HOSE, Hydraulic, 3-1/2"

$

$

Not available

10

Ferris 5021395

FITTING, 5/8", 90 Deg.
(Superseded to 5021395SM)

$2.49

$

Usually ships in 2-12 days

0

11

Ferris 5022364

FITTING, 1/2" NPT, Tee

$

$

Currently unavailable

12

Ferris 5022365

FITTING, Straight Swivel

$16.99

$

Usually ships in 2-12 days

0

13

Ferris 5050933X12

HOSE, Hydraulic, 12"

$

$

Not available

14

Ferris 5050860X16

HOSE, Hydraulic, 16"
(Superseded to 5050860X16SM)

$15.99

$

In Stock, only 1 left!

0

15

Ferris 5022106

FITTING, 1/4" NPT, Straight
(Superseded to 5022106SM)

$11.99

$

Usually ships in 2-12 days

0

16

Ferris 5022052

FITTING, 9/16 O-RING - 1/4 NPT, 90 DEG

$16.99

$

Usually ships in 2-12 days

0

17

Ferris 5050860X24

HOSE, Hydraulic, 24"
(Superseded to 5050860X24SM)

$21.99

$

In Stock, only 1 left!

0

18

Ferris 5021392

CLAMP, #6 Hose
(Superseded to 5021392SM)

$4.99

$

Usually ships in 2-12 days

0

19

Ferris 5050933X3

HOSE, Hydraulic, 3"
(Superseded to 5050933X3YP)

$7.49

$

Usually ships in 2-12 days

0

20

Ferris 5022571

HYDRAULIC PUMP, 10CC, w/ FAN
(Superseded to 5022571SM)

$1341.99

$

Usually ships in 2-12 days

0

20

Ferris 5022571X1

HUB & FAN KIT
(Superseded to 5100161X1SM)

$67.99

$

Usually ships in 2-12 days

0

21

Ferris 5022633

FITTING, O-Ring Adapter
(Superseded to 5022633SM)

$12.99

$

In Stock, only 3 left!

0

22

Ferris 5102096

HOSE ASSEMBLY, (33)
(Superseded to 5102096YP)

$160.99

$

Usually ships in 2-12 days

0

23

Ferris 5022634

FITTING, O-Ring Adapter
(Superseded to 5022634SM)

$15.99

$

In Stock, Qty 8

0

24

Ferris 5022660L

HYDRAULIC WHEEL MOTOR-LEFT, Complete
(Superseded to 5103117)

Note: (Includes Ref No. 25 & 26)

$1433.99

$

Usually ships in 2-12 days

0

25

Ferris 5022042X2

KEY
(Superseded to 5022042X2SM)

$10.99

$

In Stock, only 1 left!

0

26

Ferris 5022042X3

NUT & COTTER PIN
(Superseded to 5022042X3SM)

$34.99

$

In Stock, only 1 left!

0

27

Ferris 5022660R

HYDRAULIC WHEEL MOTOR-RIGHT, Complete
(Superseded to 5103118)

Note: (Includes Ref No. 25 & 26)

$1372.99

$

Usually ships in 2-12 days

0

28

Ferris 5050837X12

PROTECTIVE COIL, 12"
(Superseded to 5050837X12SM)

$10.99

$

Usually ships in 2-12 days

0
