IS 3000Z (5901057) - Ferris IS3000Z Series 61" Zero-Turn Mower, 23hp Kawasaki Main Frame Group Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 23hp Kawasaki

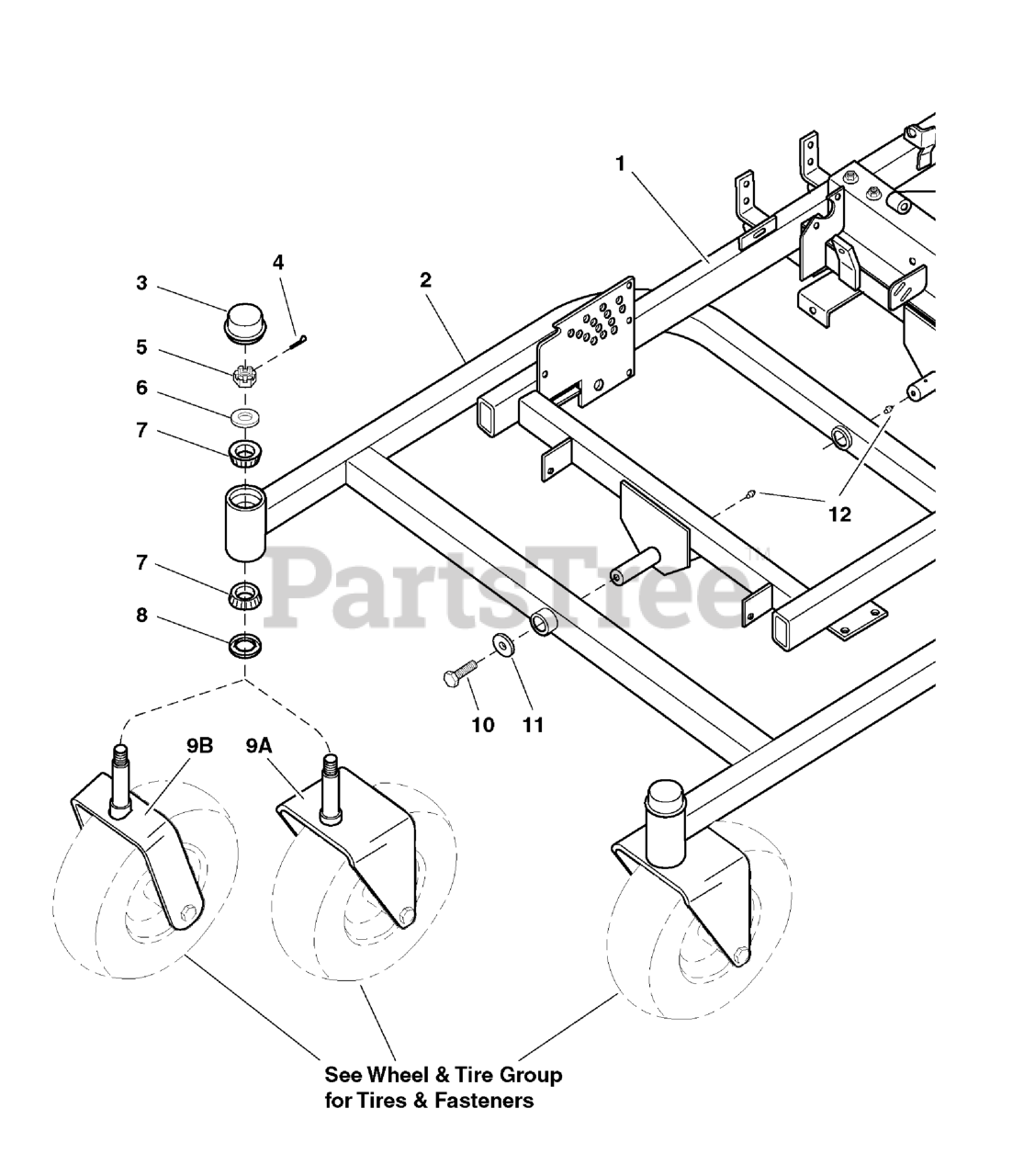

Main Frame Group Parts Diagram

  • Title

1

Ferris 5046373B

MAIN FRAME

$

$

Currently unavailable

2

Ferris 5044908B

FRAME, Front Pivot

$712.99

$

Usually ships in 2-12 days

0

3

Ferris 5021073

CAP
(Superseded to 5021073SM)

$7.49

$

In Stock, Qty 6

0

4

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

5

Ferris 5025104

NUT, 3/4-16 Hex Slotted
(Superseded to 5025104FS)

$5.49

$

In Stock, only 2 left!

0

6

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 7

0

7

Ferris 5020884

BEARING, Tapered Roller
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

8

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 5

0

9A

Ferris 5044914B

YOKE, Caster

Note: (S/N: 101 - 250)

$110.99

$

Usually ships in 2-12 days

0

9B

Ferris 5047049B

CASTER YOKE
(Superseded to 5600097)

Note: (S/N: 251 & above)

$124.99

$

Usually ships in 2-12 days

0

10

Ferris 5025018X10

BOLT, 1/2-20 X 1-1/4" GD5 CZ
(Superseded to 5025018X10SM)

$2.99

$

In Stock, Qty 20+

0

11

Ferris 5044913

WASHER, Frame Retaining
(Superseded to 5044913SM)

$6.99

$

In Stock, Qty 13

0

12

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0
