IS 3000Z (5901057) - Ferris IS3000Z Series 61" Zero-Turn Mower, 23hp Kawasaki Instrument & Control Panel Group Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 23hp Kawasaki

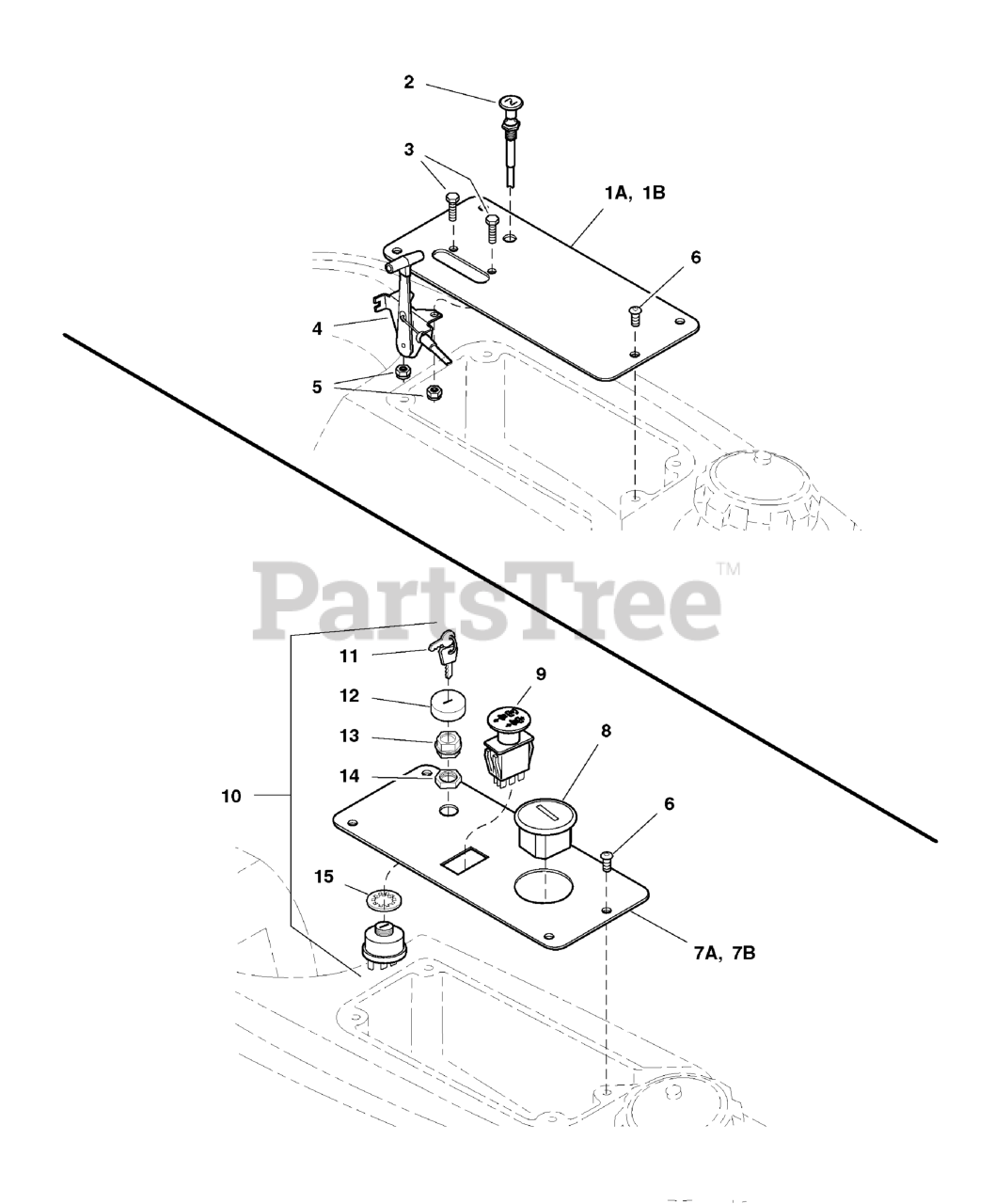

Instrument & Control Panel Group Parts Diagram

  • Title
1A

Ferris 5046464

PANEL, Control-RH

Note: (IS3000ZKAV23, S/N: 101-264)

$

$

Currently unavailable

1B

Ferris 5046493B

PANEL, Control-RH

Note: (IS3000ZKAV23, S/N: 265 & above / IS3000ZKAV25 - All)

$33.99

$

Usually ships in 2-12 days

0

2

Ferris 5046501

CABLE, Choke Control, 47"
(Superseded to 5046501SM)

$55.99

$

In Stock, only 1 left!

0

3

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

4

Ferris 5021887

CABLE, Throttle, 45"
(Superseded to 5021887SM)

$71.99

$

Usually ships in 2-12 days

0

5

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

6

Ferris 5025299X4

SCREW, Allen Head, 1/4-20 x 1/2
(Superseded to 5106469)

$2.49

$

In Stock, Qty 15

0

7A

Ferris 5046467

PANEL, Control-LH

Note: (IS3000ZKAV23, S/N: 101-264)

$

$

Currently unavailable

7B

Ferris 5046492B

PANEL, Control-LH

Note: (IS3000ZKAV23, S/N: 265 & above / IS3000ZKAV25 - All)

$33.99

$

Usually ships in 2-12 days

0

8

Ferris 5020060

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

9

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

10

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref No. 11 - 15)

$33.99

$

In Stock, only 3 left!

0

11

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

12

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

Note: (IS3000ZKAV23, S/N: 326 & above / IS3000ZKAV25, S/N: 176 & above)

$4.49

$

In Stock, only 1 left!

0

13

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

Note: (IS3000ZKAV23, S/N: 326 & above / IS3000ZKAV25, S/N: 176 & above)

$3.49

$

In Stock, only 1 left!

0

14

Ferris 5022792

STEEL NUT

Note: (IS3000ZKAV23, S/N: 101 - 325 / IS3000ZKAV25, S/N: 101 - 175)

$2.49

$

Usually ships in 2-12 days

0

15

Ferris 5022793

WASHER

Note: (IS3000ZKAV23, S/N: 101 - 325 / IS3000ZKAV25, S/N: 101 - 175)

$

$

Not available
