IS 3000Z (5901055) - Ferris IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki (SN: 3631 & Above) Parking Brake Group-Lower Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki

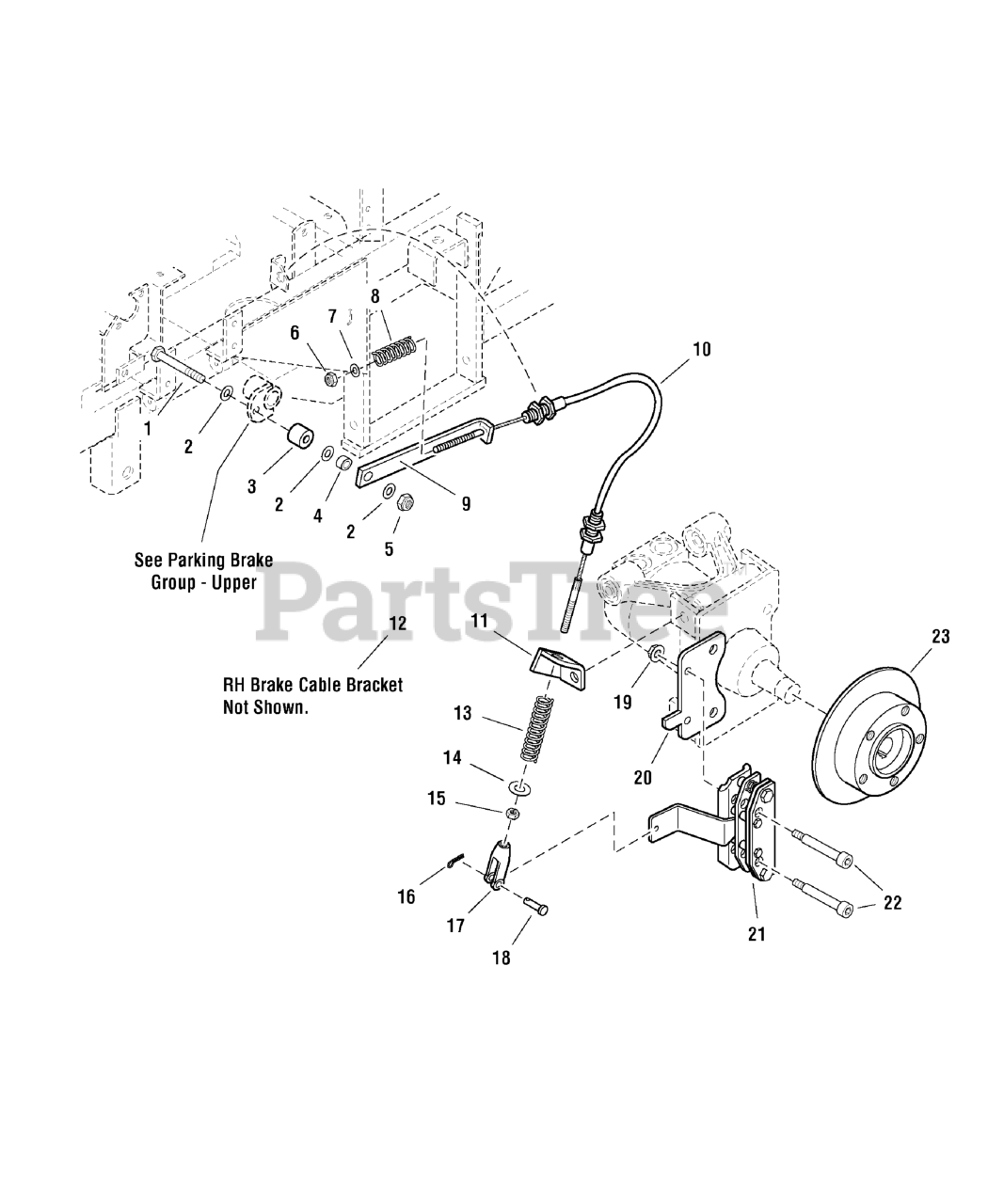

Parking Brake Group-Lower Parts Diagram

  • Title

1

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

Usually ships in 2-12 days

0

2

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5047125

SPACER, .39 x 1.00 x .88
(Superseded to 5047125SM)

$7.99

$

In Stock, only 2 left!

0

4

Ferris 5041930

SPACER, .38 x .50 x .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

5

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

6

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

7

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Ferris 5022361

SPRING, Compression
(Superseded to 5022361SM)

$9.99

$

Usually ships in 2-12 days

0

9

Ferris 5045633B

LINK, Brake Lock

$16.99

$

Usually ships in 2-12 days

0

10

Ferris 5023324

CABLE, Brake
(Superseded to 5023324SM)

$81.99

$

Usually ships in 2-12 days

0

11

Ferris 5061405B

BRACKET, Brake Cable -LH

$

$

Currently unavailable

12

Ferris 5061404B

BRACKET, Brake Cable -RH

Note: (Not Shown)

$

$

Currently unavailable

13

Ferris 5023320

SPRING, Compression
(Superseded to 5023320SM)

$8.49

$

In Stock, only 1 left!

0

14

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

15

Ferris 5025033

NUT, 5/16-24 Hex
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

17

Ferris 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

18

Ferris 5025213X8

CLEVIS PIN, 5/16 x 1
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

19

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

20

Ferris 5049391A

BRAKE CALIPER MOUNT
(Superseded to 5049391B)

$31.99

$

Usually ships in 2-12 days

0

21

Ferris 5023299

BRAKE CALIPER

$182.99

$

Usually ships in 2-12 days

0

22

Ferris 25400

SHOULDER BOLT, 1/2" x 2-3/4"

$

$

Currently unavailable

23

Ferris 5100775

WHEEL HUB, COMPACT CALIPER (86720)
(Superseded to 5100775YP)

$301.99

$

Usually ships in 2-12 days

0
