IS 3000Z (5901055) - Ferris IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki (SN: 3631 & Above) Fuel Tank, Mount & Bumper Group Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki

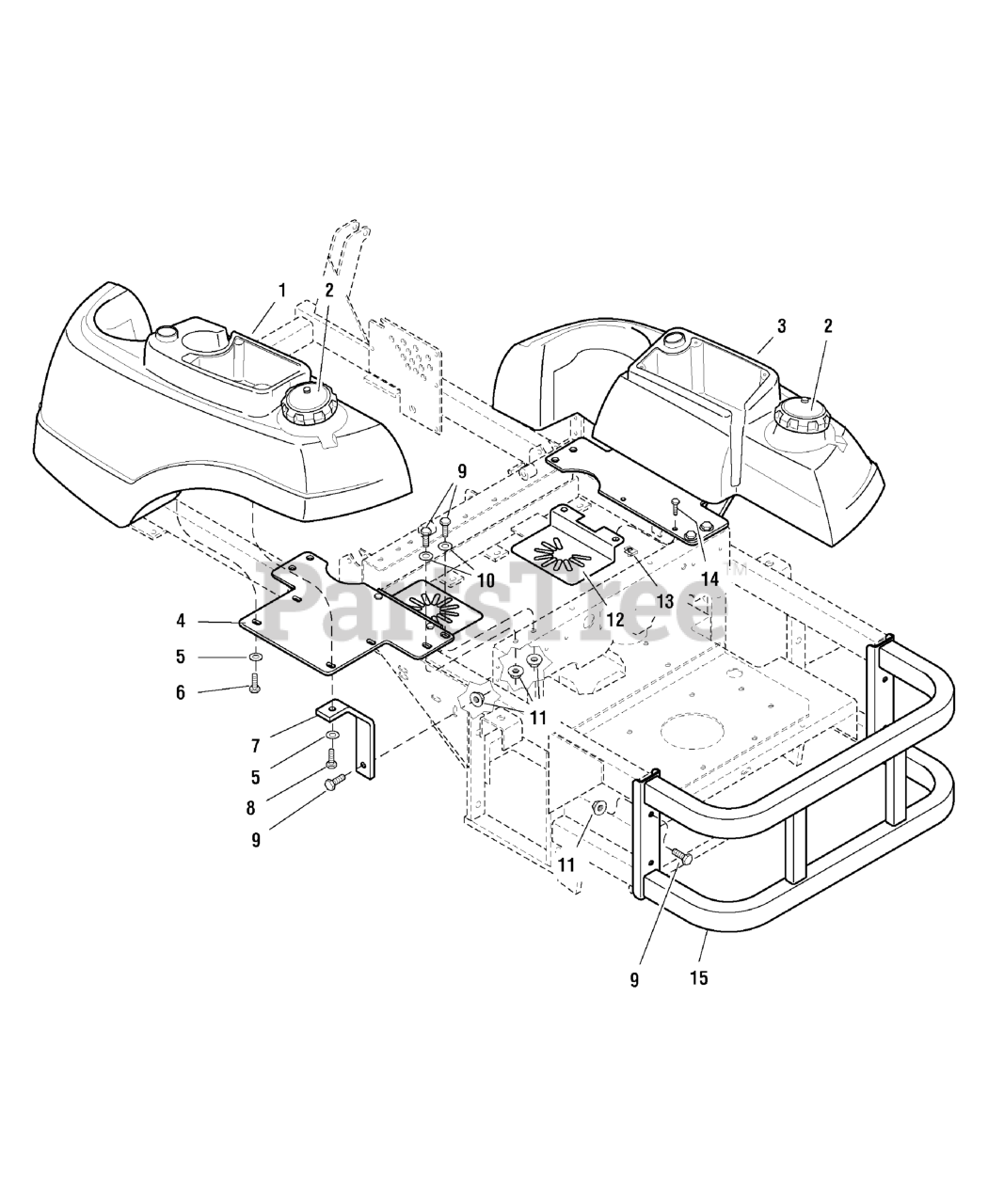

Fuel Tank, Mount & Bumper Group Parts Diagram

  • Title

1

Ferris 5049118

FUEL TANK, IS3000Z, LH

$404.99

$

Usually ships in 2-12 days

0

2

Ferris 5022158

CAP, FUEL TANK, 3-1/2 NECK

$33.99

$

Usually ships in 2-12 days

0

3

Ferris 5049119

FUEL TANK, IS3000Z, RH

$420.99

$

Usually ships in 2-12 days

0

4

Ferris 5046250B

FUEL TANK MOUNT

$87.99

$

Usually ships in 2-12 days

0

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

7

Ferris 5046436B

TANK MOUNT SUPPORT

$11.99

$

Usually ships in 2-12 days

0

8

Ferris 5025011X10

BOLT, 5/16-18 x 1-1/4
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

12

Ferris 5046472B

FAN SHIELD

$11.99

$

In Stock, only 1 left!

0

13

Ferris 5022665

BODY CLIP, 1/4-20
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

15

Ferris 5045384B

BUMPER

$

$

Currently unavailable
