IS 3000Z (5901055) - Ferris IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki (SN: 3631 & Above) Fuel Supply Hose & Tank Replacement Parts Group Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki

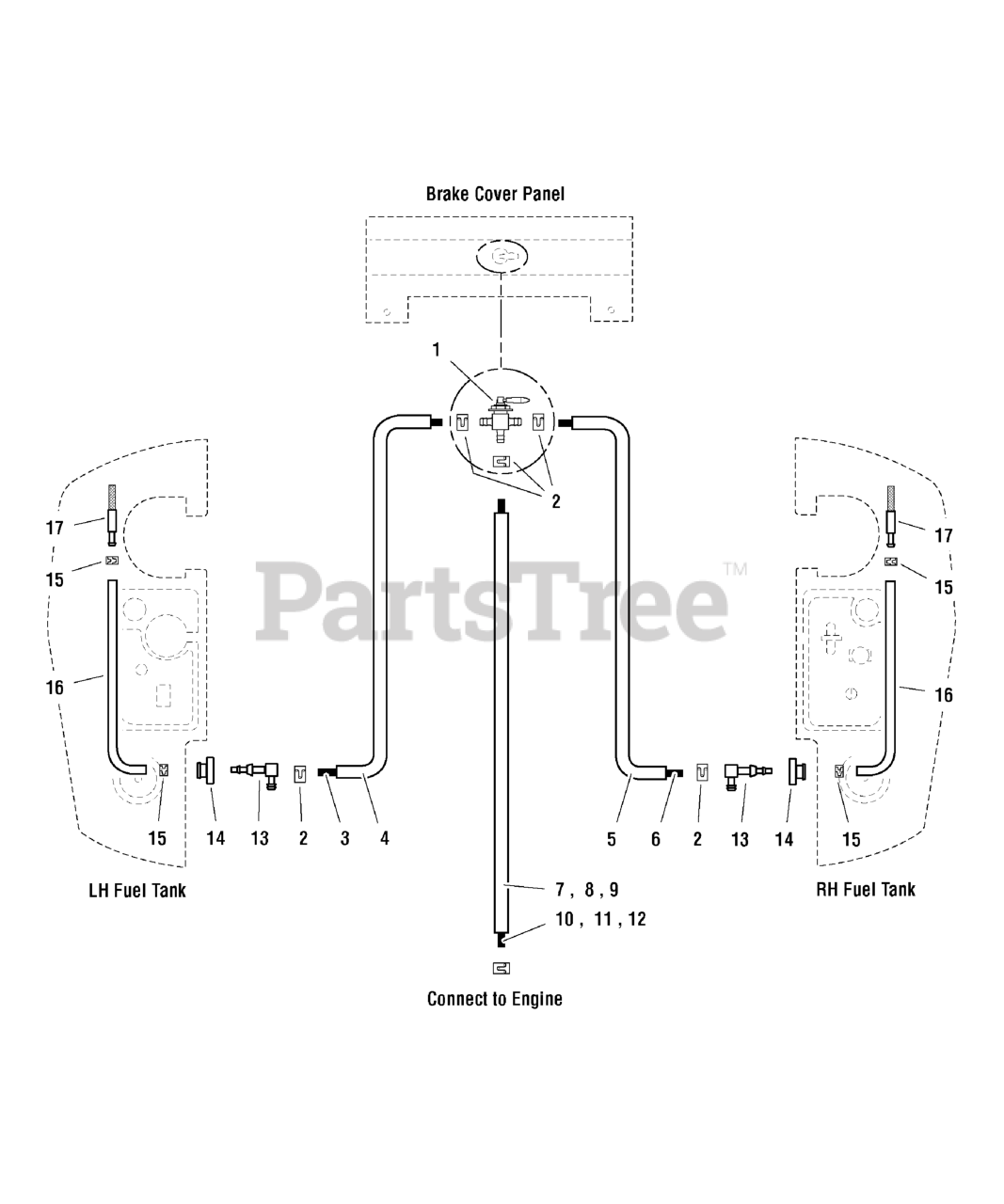

Fuel Supply Hose & Tank Replacement Parts Group Parts Diagram

  • Title

1

Ferris 5023358

VALVE, Fuel Shut Off
(Superseded to 5023358SM)

$48.99

$

In Stock, Qty 9

0

2

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

3

Ferris 5050831X51

1/4" Fuel Line, 51" Long

$26.99

$

Usually ships in 2-12 days

0

4

Ferris 5050833X48

WIRE LOOM, 48"

$

$

Currently unavailable

5

Ferris 5050833X39

WIRE LOOM, 39"

$

$

Currently unavailable

6

Ferris 5050831X41

1/4" Fuel Line, 41" Long
(Superseded to 5050831X41FS)

$17.99

$

Usually ships in 2-12 days

0

7

Ferris 5050833X34

WIRE LOOM, 34"

Note: (Kohler)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5050833X43

WIRE LOOM, 43"

Note: (Kawasaki)

$6.99

$

Usually ships in 2-12 days

0

9

Ferris 5050833X28

WIRE LOOM, 28"

Note: (Kawasaki Liquid Cooled)

$

$

Currently unavailable

10

Ferris 5050831X36

1/4" Fuel Line, 36" Long
(Superseded to 5050831X36SM)

Note: (Kohler)

$13.99

$

Usually ships in 2-12 days

0

11

Ferris 5050831X45

1/4" Fuel Line, 45" Long

Note: (Kawasaki)

$

$

Not available

12

Ferris 5050831X30

1/4" Fuel Line, 30" Long

Note: (Kawasaki Liquid Cooled)

$

$

Currently unavailable

13

Ferris 5023061

ELBOW FITTING
(Superseded to 5023061SM)

$10.99

$

In Stock, only 1 left!

0

14

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

15

SEE HOSE ASSEMBLY

$

$

Not available

16

Ferris 5101217

ASSM, FUEL HOSE, 20"

Note: (Includes clamp & filter)

$47.99

$

Usually ships in 2-12 days

0

17

SEE HOSE ASSEMBLY

$

$

Not available
