IS 3000Z (5901055) - Ferris IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki (SN: 3631 & Above) Engine & PTO Group - Kawasaki Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki

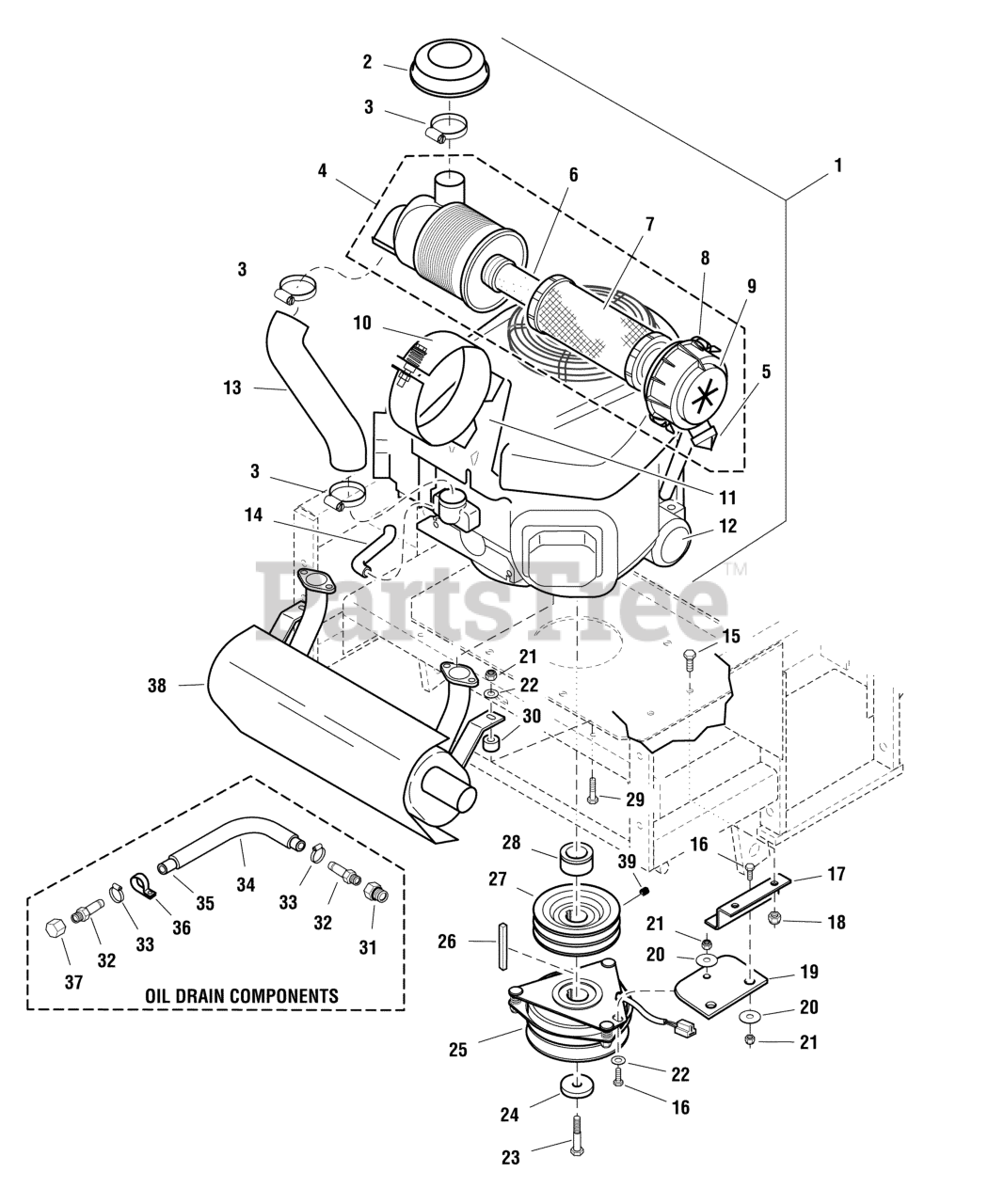

Engine & PTO Group - Kawasaki Parts Diagram

  • Title

1

ENGINE, Kawasaki (Model FH721V)

Note: (Includes Ref No. 2 - 14)

$

$

Not available

2

Ferris 5023143

RAIN CAP

$

$

Not available

3

Ferris 5023146

CLAMP

$11.99

$

Usually ships in 2-12 days

0

4

Ferris 5023139

AIR FILTER ASSEMBLY, Complete
(Superseded to 5023139SM)

Note: (Includes Ref No. 5 - 9)

$

$

Not available

5

Ferris 5023144

RUBBER, Dust Valve

$

$

Not available

6

Ferris 5023140

AIR FILTER, Secondary
(Superseded to 5023140SM)

$

$

Not available

7

Ferris 5023141

AIR FILTER, Primary
(Superseded to 5023141SM)

$

$

Not available

8

Ferris 5023147

CLAMP, Cap

$

$

Not available

9

Ferris 5023138

CAP, FIlter Case

$

$

Not available

10

Ferris 5023145

CASE BRACKET, Complete

$

$

Not available

11

Ferris 5023142

BRACKET PLATE

$

$

Not available

12

Ferris 5021334X1

OIL FILTER (49065-2078)
(Superseded to 5213341SM)

$

$

Not available

13

Ferris 5023149

AIR INLET TUBE

$

$

Not available

14

Ferris 5023148

BREATHER TUBE

$

$

Not available

15

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

16

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

17

Ferris 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

18

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

19

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

20

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

21

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Ferris 5045938

CRANKSHAFT BOLT, 7/16 x 2-1/4
(Superseded to 5102863FS)

$4.49

$

Usually ships in 2-12 days

0

24

Ferris 5045475

SPACER, .45 x 1.88 x .38
(Superseded to 5045475SM)

$14.99

$

In Stock, only 1 left!

0

25

Ferris 5023232

ELECTRIC CLUTCH
(Superseded to 5023232SM)

$744.99

$

Usually ships in 2-12 days

0

26

Ferris 5050407X2

KEY, 1/4 SQ. X 3
(Superseded to 5050407X24YP)

$6.49

$

Usually ships in 2-12 days

0

27

Ferris 5047075

CRANKSHAFT PULLEY

$128.99

$

Usually ships in 2-12 days

0

28

Ferris 5047033

SPACER, 1.13 x 1.75 x 1.03
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

29

Ferris 5025011X12

BOLT, 5/16-18 x 1-1/2
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

30

Ferris 5046446

SPACER, .39 x 1.00 x .80
(Superseded to 5046446SM)

$7.49

$

In Stock, only 1 left!

0

31

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

32

Ferris 5021372

FITTING, 3/8NPT-1/2" Hose, Straight
(Superseded to 5021372SM)

$15.99

$

Usually ships in 2-12 days

0

33

Ferris 5021392

CLAMP, #6 Hose
(Superseded to 5021392SM)

$4.99

$

Usually ships in 2-12 days

0

34

Ferris 5050862X12

WIRE LOOM, 12"
(Superseded to 5050862X12SM)

$4.49

$

Usually ships in 2-12 days

0

35

Ferris 5050857X14

HOSE, 14"
(Superseded to 5050857X14YP)

$9.99

$

Usually ships in 2-12 days

0

36

Ferris 5021500

CLAMP, Vinyl
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

37

Ferris 5021466

CAP, 3/8 NPT
(Superseded to 5021466SM)

$6.49

$

Usually ships in 2-12 days

0

38

Ferris 5100975

MUFFLER, 21HP-25HP KAWASAKI ENGINES

$

$

Currently unavailable

39

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

In Stock, Qty 12

0
