IS 3000Z (5901055) - Ferris IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki (SN: 3631 & Above) 61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki

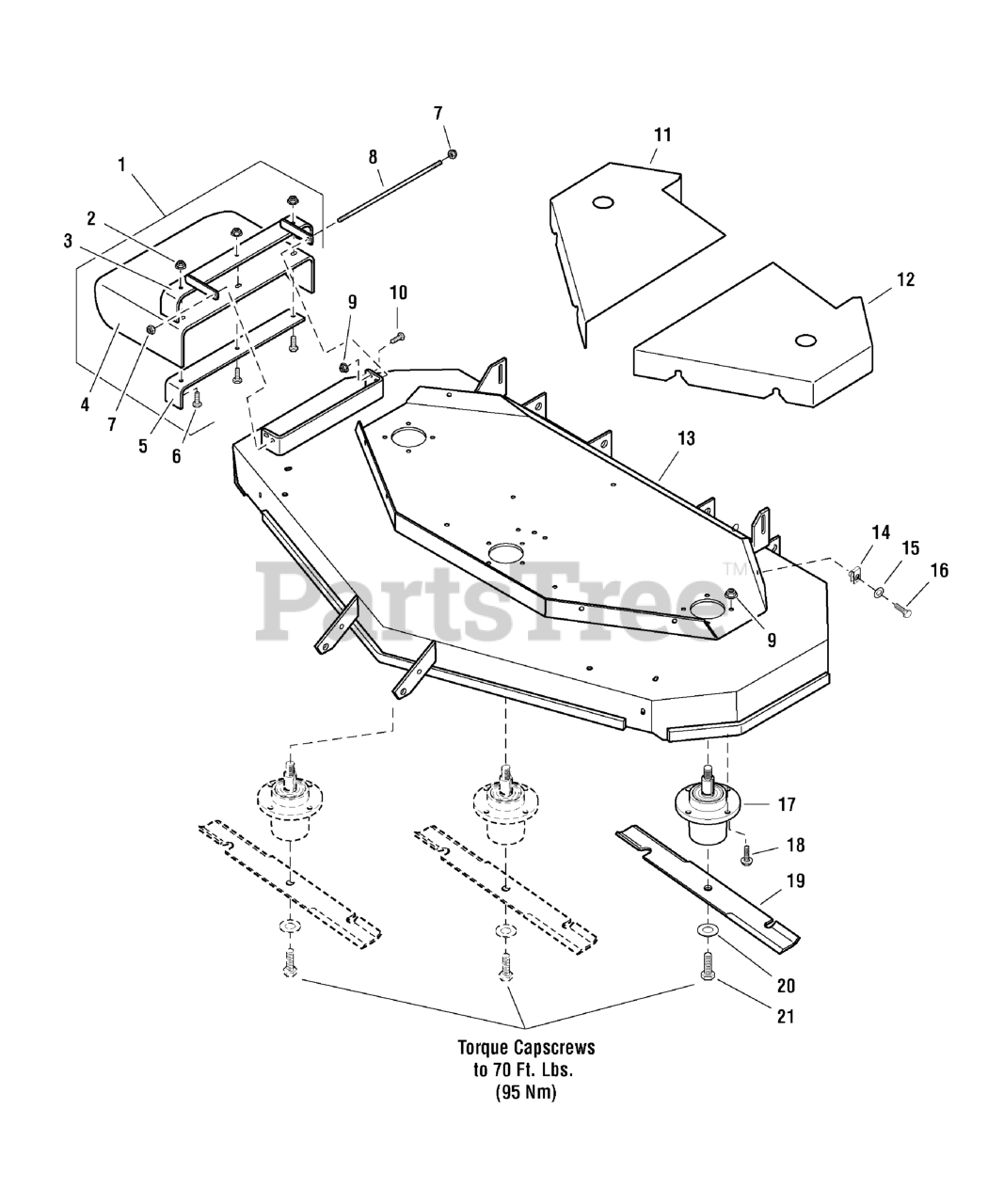

61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Ferris 5061288B

61" RUBBER CHUTE ASSEMBLY, Complete

Note: (Includes Ref No. 2 - 6)

$

$

Currently unavailable

2

Ferris 5025394

NUT, 3/8-16 Hex Nylock Flange
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

3

Ferris 5061293B

CHUTE FRAME

$34.99

$

Usually ships in 2-12 days

0

4

Ferris 5100525

RUBBER CHUTE
(Superseded to 5600087SM)

$

$

Not available

5

Ferris 5061290B

CHUTE SUPPORT

$16.99

$

Usually ships in 2-12 days

0

6

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

7

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

8

Ferris 5061300

CHUTE MOUNT ROD
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

9

Ferris 5025392

NUT, 5/16-18 Hex Nylock Flange
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

11

Ferris 5061450B

SPINDLE COVER - RH

$67.99

$

In Stock, only 1 left!

0

12

Ferris 5061451B

SPINDLE COVER - LH

$67.99

$

In Stock, only 1 left!

0

13

Ferris 5661333

DECK SHELL W/DECALS, 61"
(Superseded to 5661333B)

Note: (Includes safety decals)

$1937.99

$

Usually ships in 2-12 days

0

14

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

18

Ferris 5023156

BOLT, Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

19

Ferris 5020842

MOWER BLADE, 21"
(Superseded to 5020842ASM)

$28.99

$

In Stock, Qty 5

0

20

Ferris 5025477

WASHER, 5/8" GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

21

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0
