IS 3000Z (5901055) - Ferris IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki (SN: 3630 & Below) 61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki

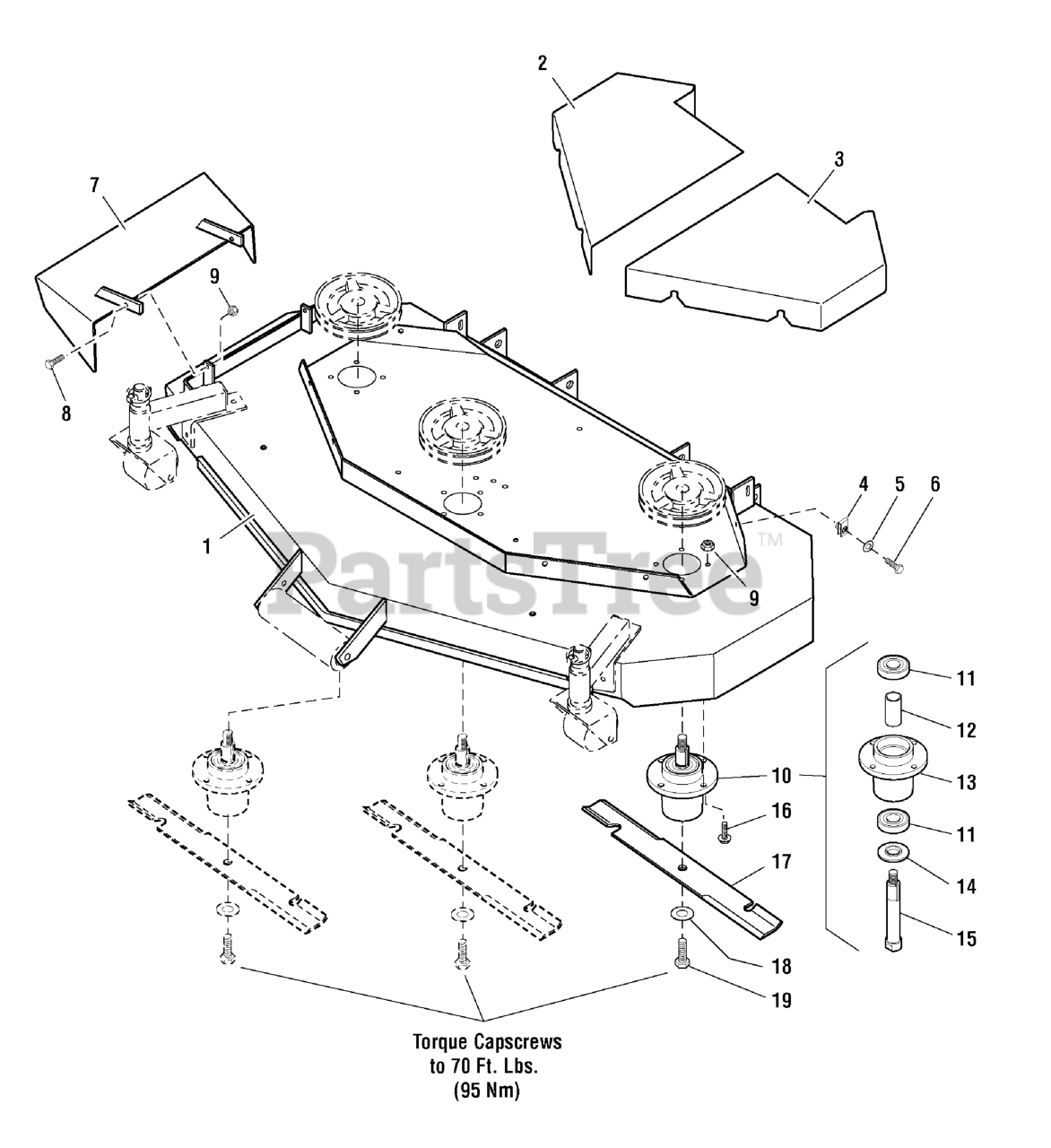

61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title
1

Ferris 5648293

DECK SHELL W/DECALS, 61"
(Superseded to 5648293B)

Note: (Includes safety decals.)

$1994.99

$

Usually ships in 2-12 days

0

2

Ferris 5047289B

SPINDLE COVER-RH

$136.99

$

Usually ships in 2-12 days

0

3

Ferris 5047290B

SPINDLE COVER-LH

$136.99

$

Usually ships in 2-12 days

0

4

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

7

Ferris 5047233B

DISCHARGE CHUTE
(Superseded to 5047233BFS)

$148.99

$

Usually ships in 2-12 days

0

8

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

9

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5046363

* SPINDLE ASSEMBLY, Complete
(Superseded to 5061095SM)

Note: (Includes Ref No. 11 - 15)

$222.99

$

In Stock, only 1 left!

0

11

Ferris 5046363X5

USE 61095
(Superseded to 5061095SM)

$222.99

$

In Stock, only 1 left!

0

12

Ferris 5046363X4

USE 61095
(Superseded to 5046363X4YP)

$11.99

$

Usually ships in 2-12 days

0

13

Ferris 5046363X1

USE 61095
(Superseded to 5061095SM)

$222.99

$

In Stock, only 1 left!

0

14

Ferris 5046363X3

USE 61095
(Superseded to 5061095SM)

$222.99

$

In Stock, only 1 left!

0

15

Ferris 5046363X2

USE 61095
(Superseded to 5061095SM)

$222.99

$

In Stock, only 1 left!

0

16

Ferris 5023156

BOLT, Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

17

Ferris 5020842

MOWER BLADE, 21"
(Superseded to 5020842ASM)

$28.99

$

In Stock, Qty 5

0

18

Ferris 5025477

WASHER, 5/8" GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

19

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0
