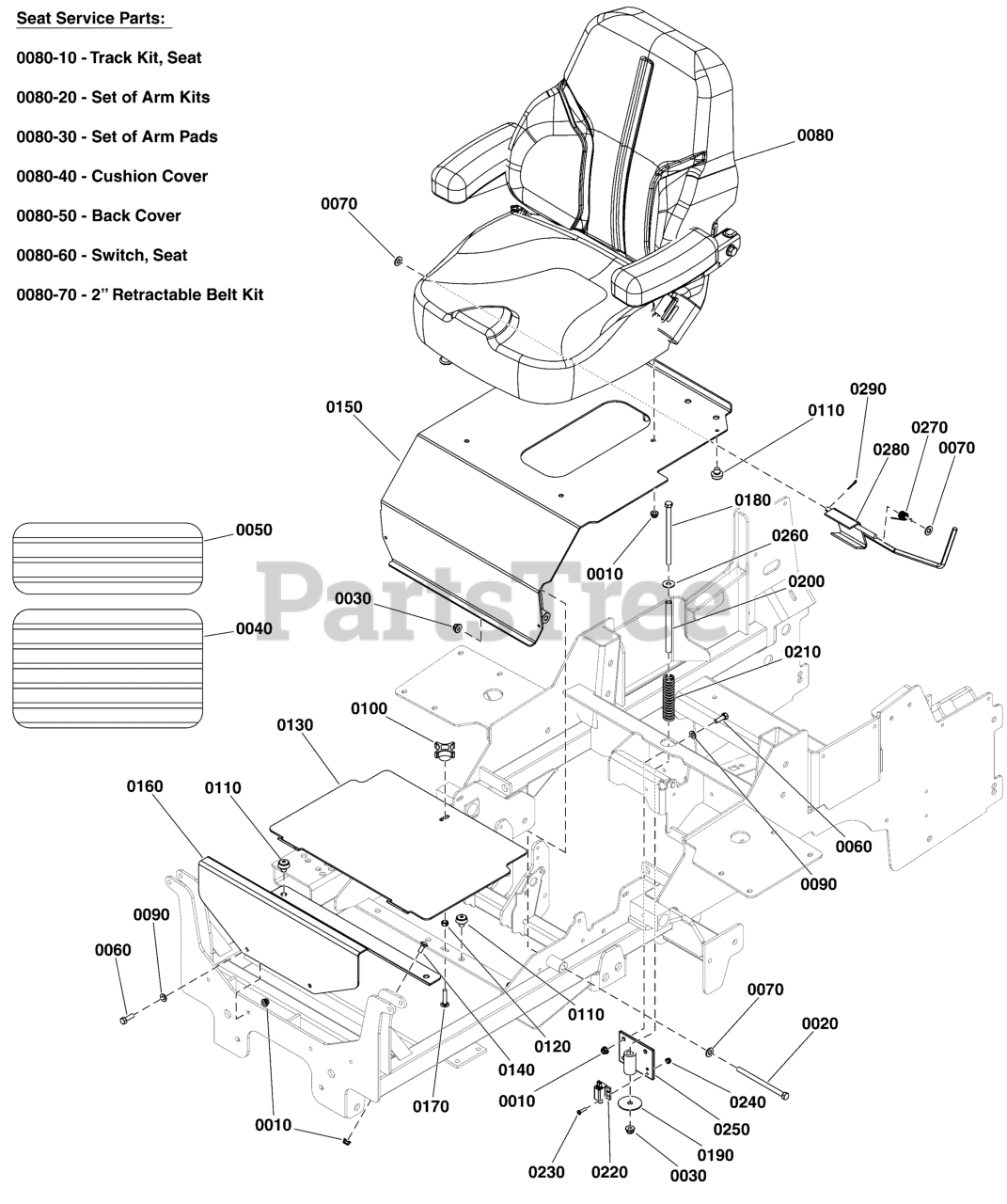

IS 2600Z (5901931) - Ferris IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar Seat Mount and Floor Group S/N: 4000874837 and Above Parts Diagram

IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar

Seat Mount and Floor Group S/N: 4000874837 and Above Parts Diagram

  • Title

0010

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0020

Ferris 5025013X44

BOLT, 3/8-16 X 5-1/2" GD5 CZ
(Superseded to 5025013X44SM)

$4.99

$

Usually ships in 2-12 days

0

0030

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0040

Ferris 5101333

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13
(Superseded to 5101333YP)

$37.99

$

Usually ships in 2-12 days

0

0050

Ferris 5101374

SAFETY WALK, FLOOR REST, 16.00 X 6.00
(Superseded to 5101374YP)

$18.99

$

In Stock, only 1 left!

0

0060

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0070

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0080

Ferris 5108195

SEAT, HIGH BACK, W/SWITCH & SEAT BELT
(Superseded to 84006078)

$1186.99

$

Usually ships in 2-12 days

0

0080-10

Ferris 5106318X1

4" SINGLE LOCKING TRACK KIT

Note: (SV)

$160.99

$

Usually ships in 2-12 days

0

0080-20

Ferris 5106325X2

SET OF ARM KITS

Note: (SV)

$284.99

$

Usually ships in 2-12 days

0

0080-30

Ferris 5106325X3

SET OF ARM PADS

Note: (SV)

$122.99

$

Usually ships in 2-12 days

0

0080-40

Ferris 5106318X4

CUSHION COVER FOR E-DELUXE

Note: (SV)

$281.99

$

Usually ships in 2-12 days

0

0080-50

Ferris 5108195X1

MID BACK COVER - E-DELUXE

Note: (SV)

$192.99

$

Usually ships in 2-12 days

0

0080-60

Ferris 7023354

SWITCH, SEAT
(Superseded to 7023354YP)

Note: (SV)

$12.99

$

In Stock, Qty 20+

0

0080-70

Ferris 5106318X2

2" RETRACTABLE SEAT BELT KIT

Note: (SV)

$142.99

$

Usually ships in 2-12 days

0

0090

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0100

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

In Stock, only 1 left!

0

0110

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

0120

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

0130

Ferris 5410296B

PLATE, FLOOR, REMOVABLE, IS700 - RED
(Superseded to 5410296BFS)

$84.99

$

Usually ships in 2-12 days

0

0140

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0150

Ferris 5601236

SEAT PLATE W/ DECALS, IS2600 USA

Note: (USA Models)

$355.99

$

Usually ships in 2-12 days

0

0150

Ferris 5601237

SEAT PLATE W/ DECALS, IS2600 EXPORT

Note: (Export Models)

$317.99

$

Usually ships in 2-12 days

0

0160

Ferris 5421477B

PLATE, FRONT FLOOR, IS2600Z - RED

$

$

Currently unavailable

0170

Ferris 80003669

BOLT,5/16-18X1.500,CARRIAGE,SQ,GR5,ZC/CL
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

0180

Ferris 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 20+

0

0190

Ferris 5025326

WASHER, .39 X 2.00 X X .14
(Superseded to 5025326SM)

$4.49

$

Usually ships in 2-12 days

0

0200

Ferris 5046586

SPACER, .38 X .50 X 5.06, CZ
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 20+

0

0210

Ferris 5100356

SPRING, .688 ID X .130 WIRE DIA 4.25
(Superseded to 5100356SM)

$16.99

$

Usually ships in 2-12 days

0

0220

Ferris 5021769

SWITCH, PLUNGER, N.C.
(Superseded to 5021769SM)

$14.99

$

In Stock, only 1 left!

0

0230

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

0240

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

0250

Ferris 5410583AYP

WELD, SEAT SWITCH

$21.99

$

Usually ships in 2-12 days

0

0260

Ferris 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

0270

Ferris 5106644

SPRING, TORSION, LH, .0625OD
(Superseded to 84003202)

$2.49

$

Usually ships in 2-12 days

0

0280

Ferris 5419072A

WELD, HANDLE, SEAT LATCH - BLK

$

$

Currently unavailable

0290

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0
