IS 2600Z (5901741) - Ferris IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge Motion Control Group - Control System Parts Diagram

IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

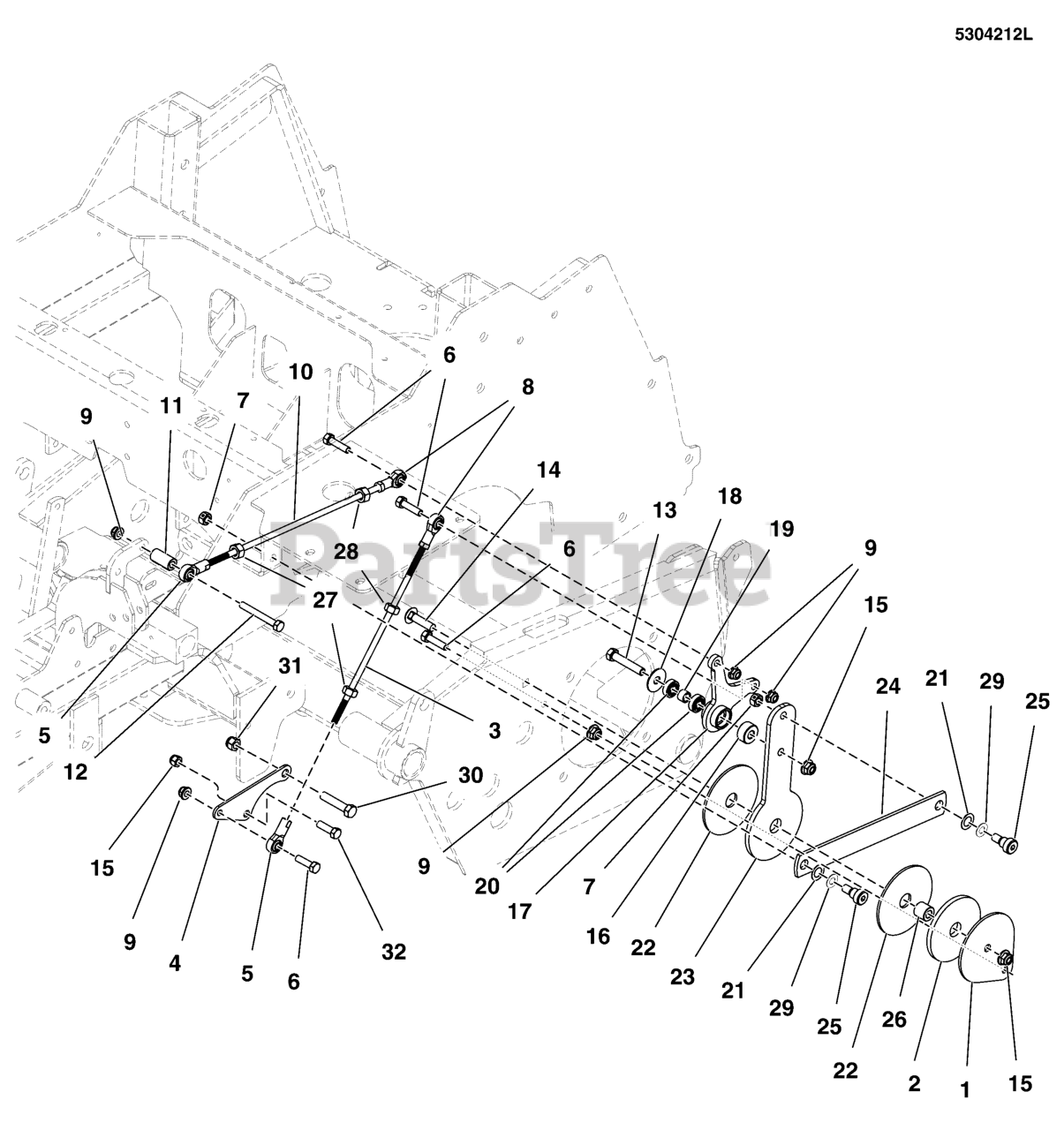

Motion Control Group - Control System Parts Diagram

  • Title

1

Ferris 5410271A

PLATE, CONTROL SYSTEM LOCK - BLK

$7.99

$

Usually ships in 2-12 days

0

2

Ferris 5103704

PAD, .77 X 3.50 X .25, POLYURETHANE
(Superseded to 5103704YP)

$50.99

$

Usually ships in 2-12 days

0

3

Ferris 5104053

ROD, 5/16-24 RH & LH, 8.75" CZ
(Superseded to 5104053YP)

$13.99

$

Usually ships in 2-12 days

0

4

Ferris 5411301A

PLATE, CONTROL MOUNT - BLK
(Superseded to 5411301AYP)

$5.99

$

Usually ships in 2-12 days

0

5

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

6

Ferris 5025055X10

BOLT, 5/16-18 X 1-1/4 GD5 TFL, CZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025100

NUT, Hex, Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

8

Ferris 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

9

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5104703

ROD, HYDR LINKAGE, 18.00
(Superseded to 5104703FS)

$5.99

$

Usually ships in 2-12 days

0

11

Ferris 5102599

SPACER, .38 X .75 X 1.25, PM, CZ
(Superseded to 5102599YP)

$12.99

$

In Stock, only 1 left!

0

12

Ferris 5025011X20

BOLT, 5/16-18 X 2-1/2" GD5 YZ
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

14

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

16

Ferris 5046860

SPACER, .39 X 1.00 X .50, PM, CZ
(Superseded to 5046860SM)

$6.49

$

In Stock, only 1 left!

0

17

Ferris 5103718

PIVOT, CONTROL SYSTEM, S125XT
(Superseded to 5103718YP)

$23.99

$

Usually ships in 2-12 days

0

18

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

19

Ferris 5103676

SPACER, .39 X .55 X .38, PM, CZ
(Superseded to 5103676YP)

$6.49

$

Usually ships in 2-12 days

0

20

Ferris 5102003

BEARING, .375" ID X .875" OD X .341" THK
(Superseded to 5102003YP)

$9.49

$

Usually ships in 2-12 days

0

21

Ferris 5103784

WAVE WASHER, 1/2"ID X 087"OD X .01 THK.
(Superseded to 5103784YP)

$11.99

$

Usually ships in 2-12 days

0

22

Ferris 5103672

PAD, CONTROL SYSTEM
(Superseded to 5103672YP)

$6.49

$

Usually ships in 2-12 days

0

23

Ferris 5410268

PLATE, CONTROL SYSTEM ARM - HT
(Superseded to 5410268YP)

$25.99

$

Usually ships in 2-12 days

0

24

Ferris 5411375A

LINK, CONTROL SYSTEM ARM, IS2100 - BLK
(Superseded to 5411375AYP)

$10.99

$

Usually ships in 2-12 days

0

25

Ferris 5025356

BOLT, 3/8-16 X 3/8", 1/2" SHOULDER
(Superseded to 5025356SM)

$6.99

$

In Stock, Qty 6

0

26

Ferris 5103705

SPACER, .39 X .75 X .69, PM, CZ
(Superseded to 5103705YP)

$7.49

$

Usually ships in 2-12 days

0

27

Ferris 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

In Stock, only 2 left!

0

29

Ferris 5025440

WASHER, 1/2" GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

30

Ferris 5025015X6

BOLT, 7/16-14 X 3/4, GD 5 YZ
(Superseded to 5025015X6SM)

$3.99

$

Usually ships in 2-12 days

0

31

Ferris 5025044

NUT, 7/16-14 HEX TOP LOCK
(Superseded to 5025044SM)

$4.49

$

Usually ships in 2-12 days

0

32

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0
