IS 2600Z (5901722) - Ferris IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge Rear Bumper & ROPS Group Parts Diagram

IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

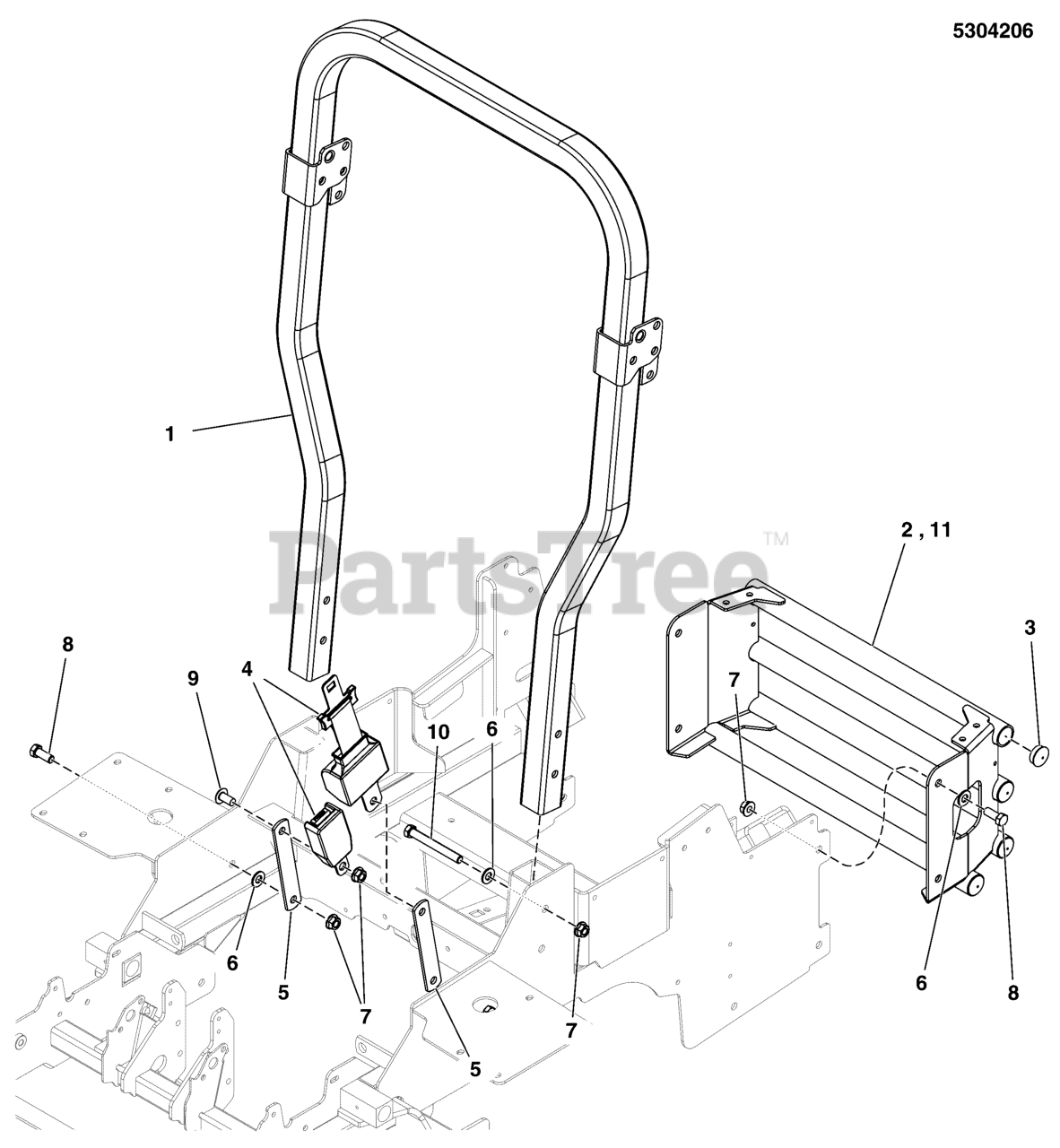

Rear Bumper & ROPS Group Parts Diagram

  • Title

1

ROPS, IS2600

Note: (Refer to Note: *)

$

$

Not available

2

Ferris 5413801B

WELD, BUMPER, IS2600 - RED

Note: (S/N: 2017528586 & Below)

$85.99

$

Usually ships in 2-12 days

0

3

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0

4

Ferris 5100139

SEAT BELT, RETRACTING - ASSM
(Superseded to 5100139SM)

Note: (S/N: 4000051453 and below)

$103.99

$

Usually ships in 2-12 days

0

5

Ferris 5410295A

BAR, MOUNT, SEAT BELT, IS700Z - BLK
(Superseded to 5410295AYP)

Note: (S/N: 4000051453 and below)

$7.49

$

Usually ships in 2-12 days

0

6

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

Note: (Qty: 10 - S/N: 4000051453 and below)

$3.99

$

In Stock, Qty 12

0

7

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

Note: (Qty: 12 - S/N: 4000051453 and below)

$3.49

$

In Stock, Qty 20+

0

8

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

Note: (Qty: 6 - S/N: 4000051453 and below)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5100267

SCREW, 1/2-13 X 1.00, SHCS
(Superseded to 5100267SM)

Note: (S/N: 4000051453 and below)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 3 left!

0

11

Ferris 5416416B

WELD, BUMPER, IS2600 - RED
(Superseded to 5416416BFS)

Note: (S/N: 2017528587 & Above)

$231.99

$

Usually ships in 2-12 days

0
