IS 2600Z (5901722) - Ferris IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge Motion Control Group - Handles & Dampeners Parts Diagram

IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

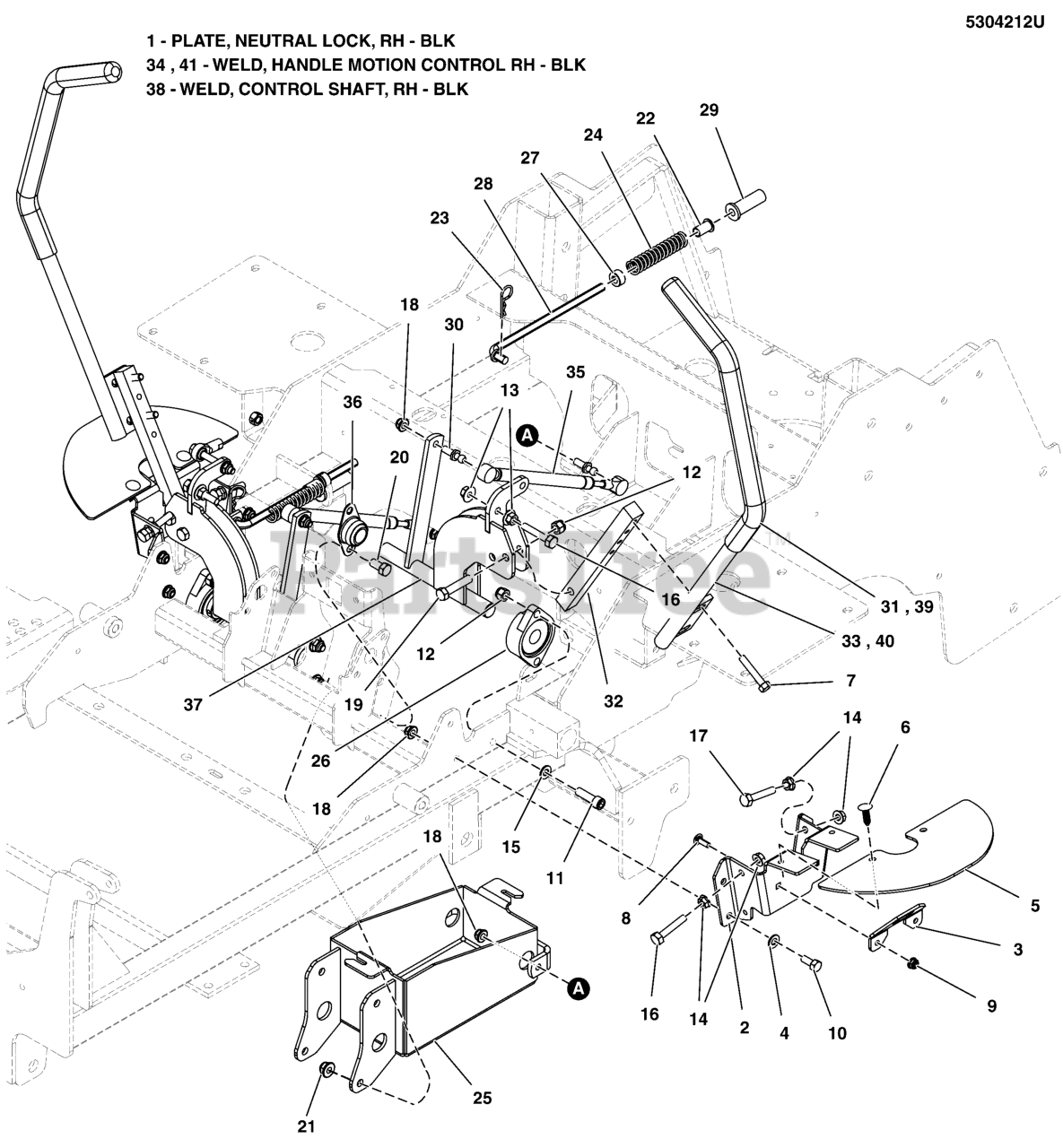

Motion Control Group - Handles & Dampeners Parts Diagram

  • Title

1

Ferris 5411451A

PLATE, NEUTRAL LOCK, RH - BLK

$26.99

$

Usually ships in 2-12 days

0

2

Ferris 5411452A

PLATE, NEUTRAL LOCK, LH - BLK

$40.99

$

Usually ships in 2-12 days

0

3

Ferris 5409984A

BRACKET, SWITCH MOUNT - BLK
(Superseded to 5409984AYP)

Note: (S/N: 2017954955 & Below)

$7.99

$

Usually ships in 2-12 days

0

4

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Ferris 5401248

GUARD, RUBBER MOTION CONTROLS
(Superseded to 5401248SM)

$8.49

$

Usually ships in 2-12 days

0

6

Ferris 5025431

PUSH RIVET (TREE TYPE), BLACK
(Superseded to 5025431SM)

$4.49

$

Usually ships in 2-12 days

0

7

Ferris 80003531

SCREW, 5/16-18x0.750, GR5, WHIZ-LOCK, ZC
(Superseded to 9357MA)

$5.49

$

In Stock, Qty 14

0

8

Ferris 80003579

BOLT,1/4-20X.75,GR5,RH SH SQ NK,ZNC/CLR
(Superseded to 703101)

Note: (S/N: 2017954955 & Below)

$3.99

$

In Stock, only 3 left!

0

9

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

Note: (S/N: 2017954955 & Below)

$3.99

$

In Stock, Qty 20+

0

10

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

11

Ferris 5025327

BOLT, Allen Head, 3/8-16 x 1-1/4
(Superseded to 5025327SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

13

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

14

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

15

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025055X10

BOLT, 5/16-18 X 1-1/4 GD5 TFL, CZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5025055X14

BOLT, 5/16-18 X 1-3/4 TFL, GD5 YZ
(Superseded to 5025055X14SM)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

20

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

21

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

22

Ferris 5023260

BUSHING, FLANGE 3/8ID X 7/8 LONG
(Superseded to 5023260SM)

$6.49

$

In Stock, only 2 left!

0

23

Ferris 5025210

3/32 X 1-5/8 HAIR PIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

24

Ferris 5022645

SPRING, REVERSE RETURN
(Superseded to 5022645SM)

$9.49

$

In Stock, only 1 left!

0

25

Ferris 5414116B

WELD, BATTERY BOX - RED
(Superseded to 5414116BFS)

$254.99

$

Usually ships in 2-12 days

0

26

Ferris 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

27

Ferris 5010546

COLLAR, 3/8" Set
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

28

Ferris 5100947

ROD, NEUTRAL RETURN, CZ
(Superseded to 5100947SM)

$7.99

$

Usually ships in 2-12 days

0

29

Ferris 5104375

FLANGED BUSHING, 3/8IDX.63ODX.8125FL
(Superseded to 5104375YP)

$5.99

$

Usually ships in 2-12 days

0

30

Ferris 5101307

10MM BALL STUD, 5/16-18 X 3/4 THDS
(Superseded to 5101307SM)

$5.49

$

Usually ships in 2-12 days

0

31

Ferris 5022068

GRIP, FOAM, 3/4" ID, 16"" LONG
(Superseded to 5022068SM)

Note: (S/N: 2017501539 & Below)

$11.99

$

Usually ships in 2-12 days

0

32

Ferris 5047004A

MOUNT, CONTROL ARM - BLK

$

$

Currently unavailable

33

Ferris 5400636A

WELD, HANDLE MOTION CONTROL LH - BLK
(Superseded to 5400636AYP)

Note: (S/N: 2017501539 & Below)

$50.99

$

Usually ships in 2-12 days

0

34

Ferris 5400637A

WELD, HANDLE MOTION CONTROL RH - BLK

Note: (S/N: 2017501539 & Below)

$

$

Currently unavailable

35

Ferris 5100940

DAMPENER, CONTROL,#(P6709/P3610)
(Superseded to 5100940SM)

$55.99

$

In Stock, only 2 left!

0

36

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

37

Ferris 5411446A

WELD, CONTROL SHAFT, LH - BLK

Note: (S/N: 2017954955 & Below)

$79.99

$

Usually ships in 2-12 days

0

37

Ferris 5416663A

WELD, CONTROL SHAFT, LOCKOUT, LH - BLK
(Superseded to 5416663AYP)

Note: (S/N: 2017954956 & Above)

$64.99

$

Usually ships in 2-12 days

0

38

Ferris 5411445A

WELD, CONTROL SHAFT, RH - BLK

Note: (S/N: 2017954955 & Below)

$

$

Not available

38

Ferris 5416664A

WELD, CONTROL SHAFT, LOCKOUT, RH - BLK
(Superseded to 5416664AYP)

Note: (S/N: 2017954956 & Above)

$62.99

$

Usually ships in 2-12 days

0

39

Ferris 5104722

GRIP, FOAM, 1" ID, 16" LONG
(Superseded to 5104722FS)

Note: (S/N: 2017501540 & Above)

$10.99

$

Usually ships in 2-12 days

0

40

Ferris 5414431A

WELD, HANDLE MOTION CNTRL, 19.0, 1.0, LH - BLK
(Superseded to 5414431AA)

Note: (S/N: 2017501540 & Above)

$54.99

$

Usually ships in 2-12 days

0

41

Ferris 5414432A

WELD, HANDLE MOTION CNTRL, 19.0, 1.0, RH - BLK
(Superseded to 5108431AA)

Note: (S/N: 2017501540 & Above)

$49.99

$

In Stock, only 1 left!

0
