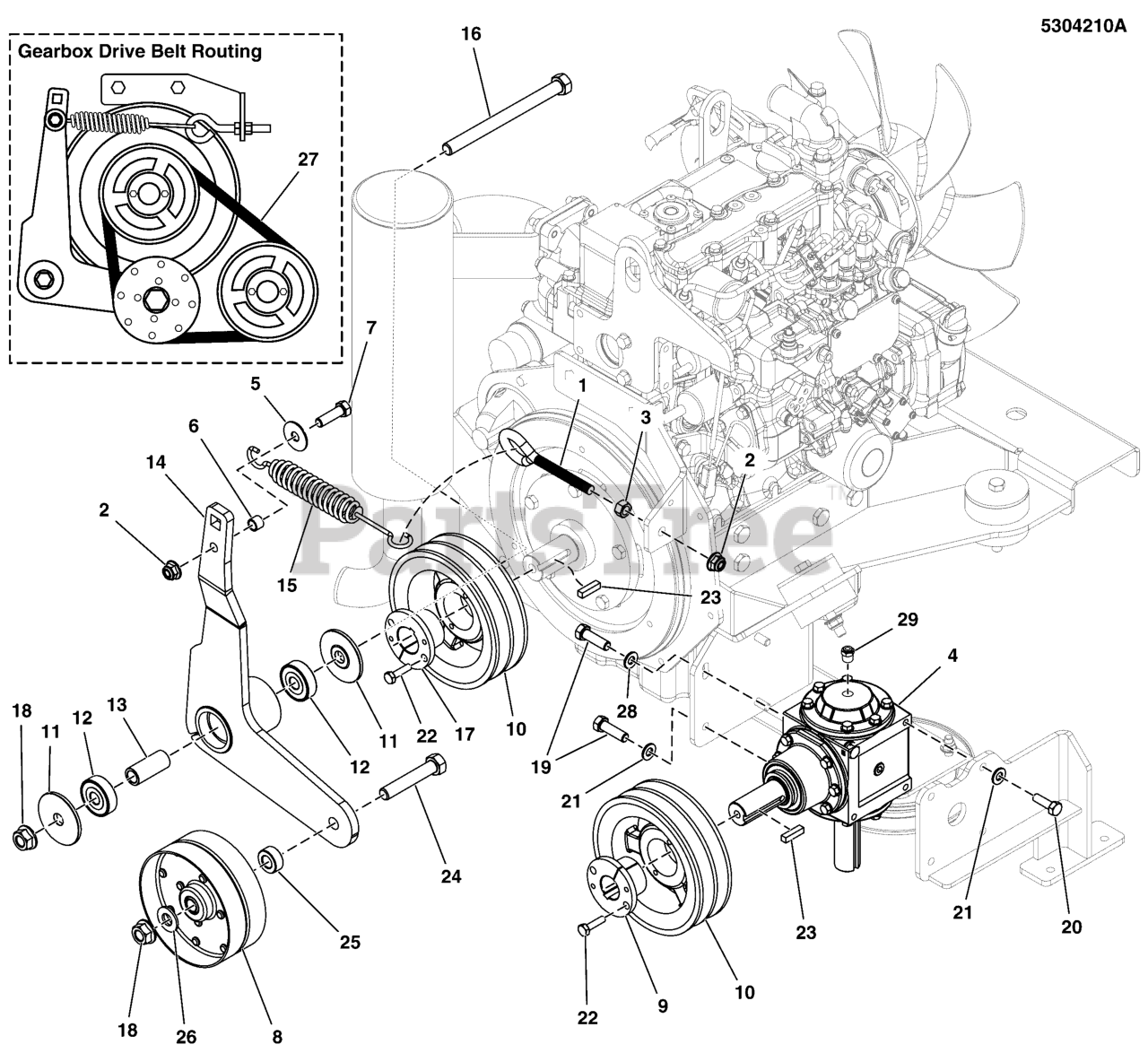

IS 2600Z (5901722) - Ferris IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge Gearbox Drive Group - S/N: 2017528586 & Below Parts Diagram

IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

Gearbox Drive Group - S/N: 2017528586 & Below Parts Diagram

  • Title

1

Ferris 5025441

EYE BOLT,3/8-16X4.13,2.33THRD,.75EYE,CZ
(Superseded to 5025441YP)

$11.99

$

Usually ships in 2-12 days

0

2

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

3

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

4

Ferris 5104533

GEARBOX RIGHT ANGLE
(Superseded to 5105400)

Note: (Refer to Note: *)

$1750.99

$

Usually ships in 2-12 days

0

5

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

6

Ferris 5101448

SPACER, .38 X .50 X .38, CZ
(Superseded to 5101448YP)

$7.49

$

Usually ships in 2-12 days

0

7

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

8

Ferris 5104625

PULLEY, FLAT IDLER, 5"OD X 2" W X .5 ID
(Superseded to 5104625FS)

$118.99

$

Usually ships in 2-12 days

0

9

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, only 4 left!

0

10

Ferris 5102067

PULLEY, DOUBLE, DH4600, 5.95 OD TAPERED
(Superseded to 5102067FS)

$111.99

$

Usually ships in 2-12 days

0

11

Ferris 5104379

SPACER, IDLER ARM, 1/2 X 2.25
(Superseded to 5104379YP)

$8.99

$

In Stock, only 2 left!

0

12

Ferris 5104383

BEARING, 6203-1/2", SEALED
(Superseded to 5104383YP)

$9.99

$

In Stock, only 3 left!

0

13

Ferris 5104381

SPACER, .510 X .750 X 1.749, CZ
(Superseded to 5104381YP)

$11.99

$

Usually ships in 2-12 days

0

14

Ferris 5414009AAFS

ARM, Idler

$130.99

$

Usually ships in 2-12 days

0

15

Ferris 5022847

SPRING-EXT, 1.04 ODX6.935LGX.148WR, BLK
(Superseded to 5022847SM)

$34.99

$

In Stock, Qty 7

0

16

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2" GD5 YZ
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 2 left!

0

17

Ferris 5101646

TAPER LOCK BUSHING, HQ-1-1/8"
(Superseded to 5101646YP)

$25.99

$

Usually ships in 2-12 days

0

18

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

19

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

20

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

21

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

22

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

23

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

24

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

25

Ferris 5045023

SPACER, .52 X 1.00 X .44, CZ
(Superseded to 5045023SM)

$6.49

$

In Stock, only 1 left!

0

26

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

27

Ferris 5104574

BELT, B-SEC, DOUBLE, BANDED, 41" EL

$103.99

$

Usually ships in 2-12 days

0

28

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

29

Ferris 5104533X1

PRESSURE RELIEF VALVE, #410696
(Superseded to 5104533X1FS)

Note: (SV)

$26.99

$

Usually ships in 2-12 days

0
