IS 2600Z (5901721) - Ferris IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge Hood & Shields Group Parts Diagram

IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

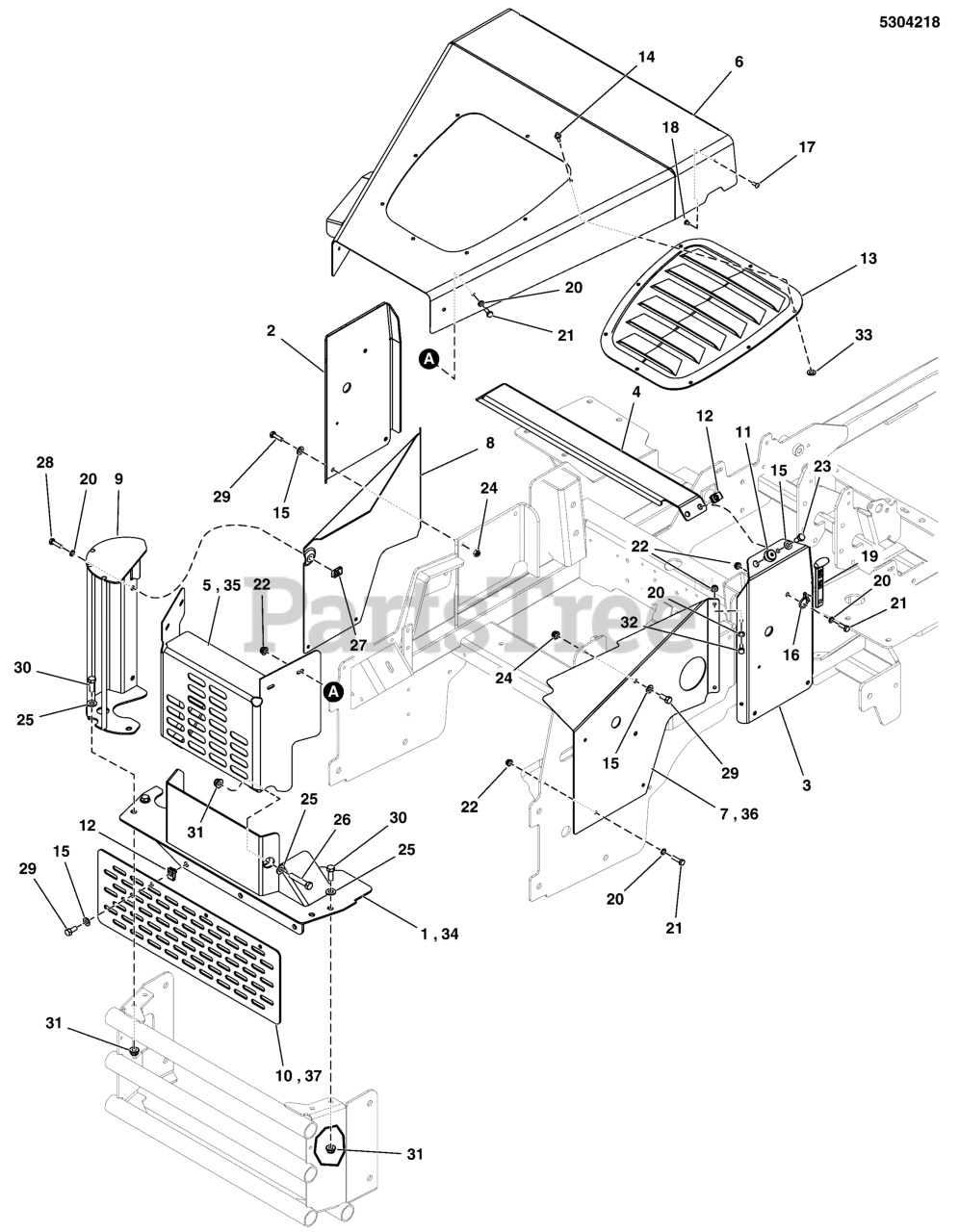

Hood & Shields Group Parts Diagram

  • Title

1

Ferris 5414153B

WELD, HINGE MOUNT - RED

Note: (S/N: 2017528586 & Below)

$153.99

$

Usually ships in 2-12 days

0

2

Ferris 5413907B

PLATE, LH HOOD SUPPORT, IS2600 - RED
(Superseded to 5413907BFS)

$60.99

$

Usually ships in 2-12 days

0

3

Ferris 5413908B

PLATE, RH HOOD SUPPORT, IS2600 - RED
(Superseded to 5413908BFS)

$60.99

$

Usually ships in 2-12 days

0

4

Ferris 5413906B

PLATE, CENTER HOOD SUPPORT, IS2600 - RED
(Superseded to 5413906BFS)

$46.99

$

Usually ships in 2-12 days

0

5

Ferris 5413958B

WELD, ENGINE COVER, REAR - RED

Note: (S/N: 2017528586 & Below)

$142.99

$

Usually ships in 2-12 days

0

6

Ferris 5413939B

WELD, HOOD, IS2600Z - RED
(Superseded to 5413939BFS)

$272.99

$

Usually ships in 2-12 days

0

7

Ferris 5414018B

COVER, ENGINE SIDE, RH - RED

Note: (S/N: 2017528586 & Below)

$49.99

$

Usually ships in 2-12 days

0

8

Ferris 5414017B

COVER, ENGINE SIDE, LH - RED
(Superseded to 5414017BFS)

$68.99

$

Usually ships in 2-12 days

0

9

Ferris 5414476B

WELD, MUFFLER GUARD, IS2600Z
(Superseded to 5414476BFS)

$106.99

$

Usually ships in 2-12 days

0

10

Ferris 5414463B

GUARD, REAR BELT

Note: (S/N: 2017528586 & Below)

$27.99

$

Usually ships in 2-12 days

0

11

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

12

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

13

Ferris 5101768

SCOOP, HOOD, OUTFRONT MOWER
(Superseded to 5101768YP)

$142.99

$

Usually ships in 2-12 days

0

14

Ferris 5025622

POP RIVET, 3/16" X .575"(.251-.375GP)BLK
(Superseded to 5025622YP)

$2.49

$

Usually ships in 2-12 days

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 1723168

HOOK-.125DIA WIRE GR CAT STRAP YELLOW
(Superseded to 1723168SM)

$9.99

$

Usually ships in 2-12 days

0

17

Ferris 1726044

BINDING POST #8-32X.500 INT THR BLK
(Superseded to 1726044SM)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 2860707

SCREW-HEX SERR FLNG LK # 8-32X0.375 YEL
(Superseded to 2860707SM)

$3.49

$

In Stock, only 2 left!

0

19

Ferris 2171600

STRAP, HOOD, BLACK RUBBER
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

20

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

21

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

22

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

23

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

24

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

26

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

27

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

29

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

30

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

31

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

32

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

33

Ferris 5023499

WASHER, #10 SAE
(Superseded to 5023499SM)

$3.49

$

Usually ships in 2-12 days

0

34

Ferris 5416408B

WELD, HINGE MOUNT - RED
(Superseded to 5416408BFS)

Note: (S/N: 2017528587 & Above)

$124.99

$

Usually ships in 2-12 days

0

35

Ferris 5416434B

WELD, ENGINECOVER, REAR - RED
(Superseded to 5416434BFS)

Note: (S/N: 2017528587 & Above)

$145.99

$

Usually ships in 2-12 days

0

36

Ferris 5416422B

COVER, ENGINE SIDE, RH - RED
(Superseded to 5416422BFS)

Note: (S/N: 2017528587 & Above)

$46.99

$

Usually ships in 2-12 days

0

37

Ferris 5416438B

PLATE, GUARD, BUMPER - IS2600Z - RED
(Superseded to 5416438BFS)

Note: (S/N: 2017528587 & Above)

$45.99

$

Usually ships in 2-12 days

0
