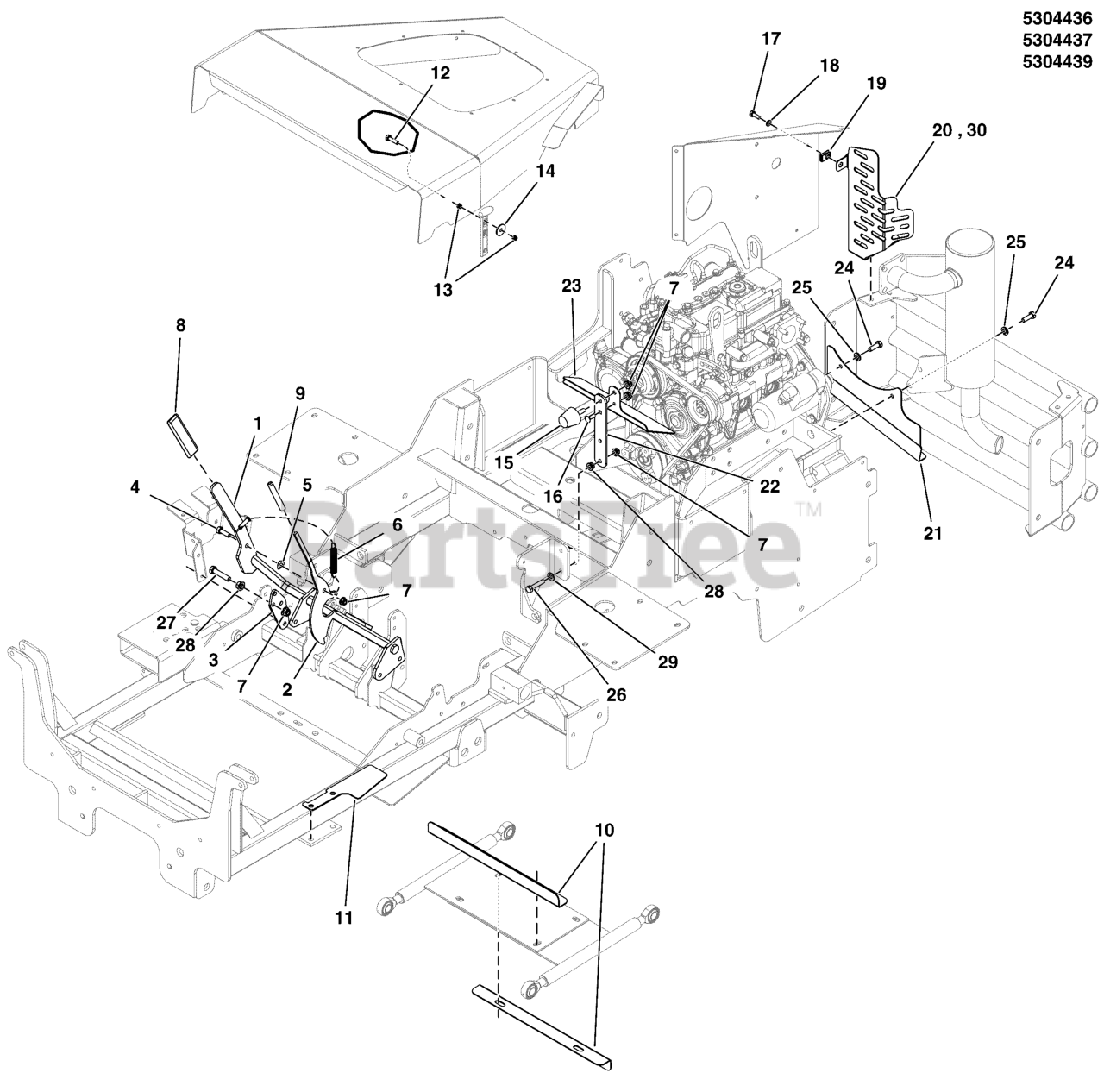

IS 2600Z (5901477) - Ferris IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Rear-Discharge CE Guarding - Engine Compartment & Parking Brake S/N: 4000471742 and below Parts Diagram

IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Rear-Discharge

CE Guarding - Engine Compartment & Parking Brake S/N: 4000471742 and below Parts Diagram

  • Title

1

Ferris 5414530A

WELD, HANDLE, BRAKE, IS2600 EU - BLK

Note: (S/N: 2017954955 & Below)

$118.99

$

Usually ships in 2-12 days

0

1

Ferris 5416324A

WELD, HANDLE, BRAKE, IS2600 CE - BLK

Note: (S/N: 2017954956 & Above)

$

$

Currently unavailable

2

Ferris 5414527A

LEVER, BRAKE, IS2600 EU - BLK

$11.99

$

Usually ships in 2-12 days

0

3

Ferris 5414526B

PLATE, PIVOT MOUNT, BRAKE,IS2600 EU, RED
(Superseded to 5414526BFS)

$7.99

$

Usually ships in 2-12 days

0

4

Ferris 1960086

SCREW, TRUSS HD TORX DR5/16-18X0.875 BLK
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

5

Ferris 5023202

WASHER,WAVE,M10
(Superseded to 5023202SM)

$5.49

$

Usually ships in 2-12 days

0

6

Ferris 5020639

SPRING-EXT, .500 OD X 3.50 LG X .058 WR
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

7

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0

9

Ferris 5023198

COVER, VINYL HANDLE
(Superseded to 5023198SM)

$4.49

$

In Stock, only 2 left!

0

10

Ferris 5414467A

PLATE, GUARD, PULLER BAR,IS2600Z EU, BLK

$9.49

$

Usually ships in 2-12 days

0

11

Ferris 5413453B

PLATE, DECK SHIELD, FRAME - LH - RED
(Superseded to 5413453BFS)

$7.49

$

Usually ships in 2-12 days

0

12

Ferris 5025629

SCREW, 8-32 X 3/4, HEX SERR FLG. GR5, CZ
(Superseded to 5025629FS)

$2.99

$

Usually ships in 2-12 days

0

13

Ferris 5025339

NUT, #8-32 Hex Nylon Lock
(Superseded to 5025339YP)

$2.99

$

Usually ships in 2-12 days

0

14

Ferris 5025628

WASHER, FENDER, #10 X 1-1/4"OD, SS
(Superseded to 5025628FS)

$2.49

$

Usually ships in 2-12 days

0

15

Ferris 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

16

Ferris 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 1 left!

0

17

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

18

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

19

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5414464B

PLATE, GUARD, FLY WHEEL, IS2600Z EU, RED

Note: (S/N: 2017528586 & Below)

$29.99

$

Usually ships in 2-12 days

0

21

Ferris 5414944B

PLATE, POWER HEAD BELT GUARD - RED
(Superseded to 5414944BFS)

$34.99

$

Usually ships in 2-12 days

0

22

Ferris 5414525B

PLATE, BRACKET, SEAT LOCK,IS2600 EU, RED

$8.99

$

Usually ships in 2-12 days

0

23

Ferris 5414889B

PLATE, REAR SEAT GUARD, IS2600Z CE - RED

$15.99

$

Usually ships in 2-12 days

0

24

Ferris 5025237X25

BOLT, M8-1.25 X 25MM GR 8.8
(Superseded to 5025237X25YP)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

26

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2" GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

27

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

28

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

29

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

30

Ferris 5416411B

PLATE, GUARD, FLY WHEEL, IS2600Z EU, RED
(Superseded to 5416411BFS)

Note: (S/N: 2017528587 & Above)

$27.99

$

Usually ships in 2-12 days

0
