IS 2500Z (5901332) - Ferris IS2500Z Series 52" Zero-Turn Mower, 24hp Yanmar, Rear-Discharge 52" Mower Deck - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

IS2500Z Series 52" Zero-Turn Mower, 24hp Yanmar, Rear-Discharge

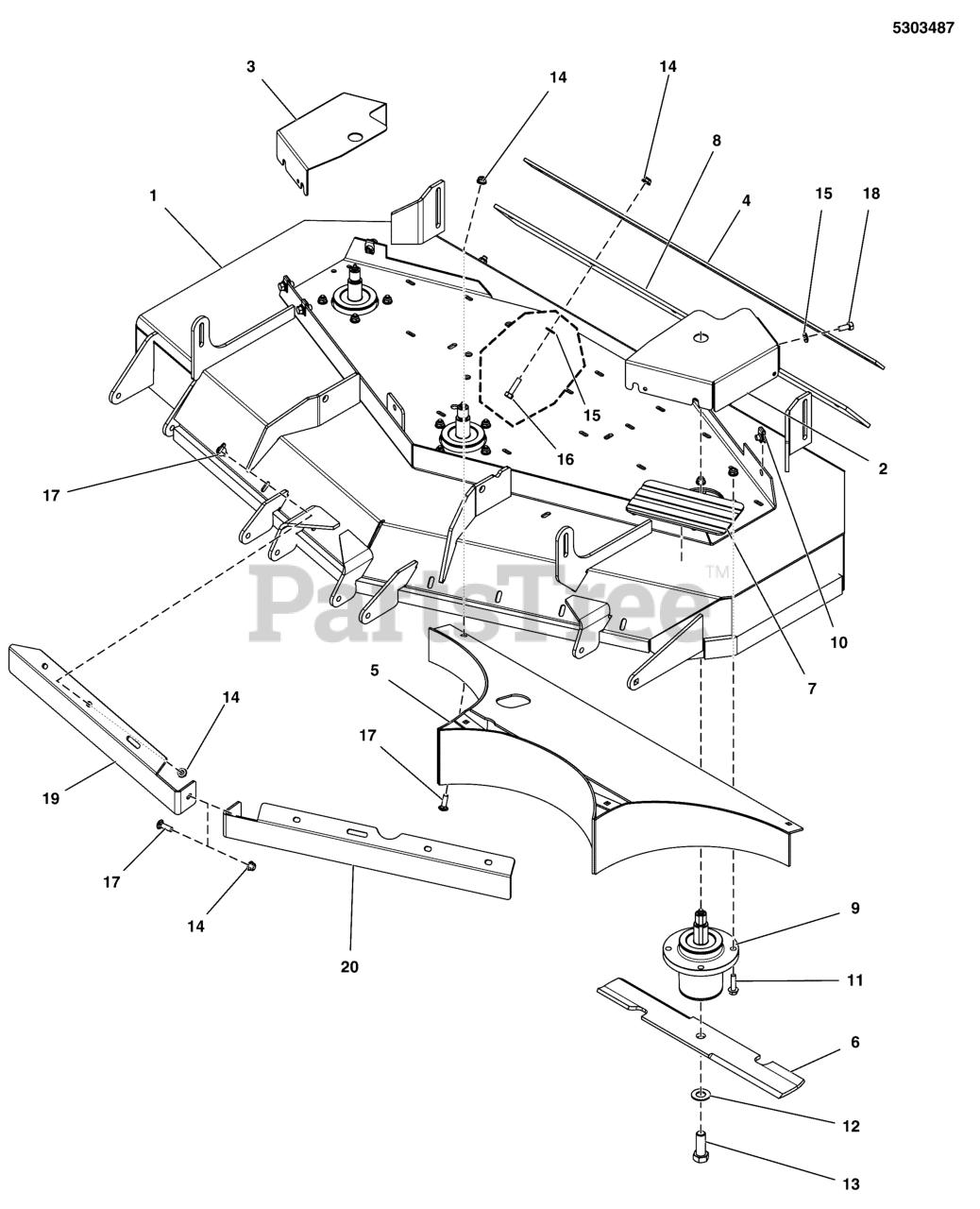

52" Mower Deck - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

  • Title

1

Ferris 5600855

DECK SHELL W/DECALS, 2500-52RDCE

Note: (CE & ANSI-EXP Models Only)(5413225B)(S/N: 2016903714 & Above)

$2308.99

$

Usually ships in 2-12 days

0

1

Ferris 5600705

DECK SHELL W/ DECALS, 52RDCE, IS2500Z

Note: (CE Models Only)(5411815B)(S/N: 2016903713 & Below)

$

$

Currently unavailable

1

Ferris 5600771

DECK SHELL W/ DECALS, 52RDANSI EXP, IS2500Z

Note: (ANSI-EXP Models Only)(5412383B)(S/N: 2016903713 & Below

$

$

Currently unavailable

2

Ferris 5401605B

GUARD, 52" DECK, IS2000 - LH - RED
(Superseded to 5401605BFS)

$27.99

$

In Stock, only 1 left!

0

3

Ferris 5401606B

GUARD, 52" DECK, IS2000 - RH - RED

$22.99

$

Usually ships in 2-12 days

0

4

Ferris 5402475A

PLATE, FLAP RETAINER, 2000 RD - BLK

$25.99

$

Usually ships in 2-12 days

0

5

Ferris 5404729A

WELD, REAR BAFFLE, 52 RD - BLK

$228.99

$

Usually ships in 2-12 days

0

6

Ferris 5101756S

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF 3)

$

$

Currently unavailable

7

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

8

Ferris 5402474

FLAP, 2000 REAR DISCHARGE
(Superseded to 5402474FS)

$85.99

$

Usually ships in 2-12 days

0

9

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

$231.99

$

Usually ships in 2-12 days

0

10

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

11

Ferris 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

12

Ferris 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

13

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (Qty: 27 - CE Models Only)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5025145X8

CARRIAGE BOLT 5/16-18 X 3/4
(Superseded to 5025145X8SM)

Note: (CE Models Only)

$3.99

$

In Stock, Qty 9

0

18

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

19

Ferris 5406204B

BAFFLE, FRONT DISCHARGE, LH, S150XCE - RED

Note: (CE Models Only)

$33.99

$

Usually ships in 2-12 days

0

20

Ferris 5406205B

BAFFLE, FRONT DISCHARGE, RH, S150X - RED

Note: (CE Models Only)

$39.99

$

Usually ships in 2-12 days

0
