IS 2500Z (5901331) - Ferris IS2500Z Series 52" Zero-Turn Mower, 24hp Yanmar, Side-Discharge 52" Mower Deck - Pulleys, Belt & Idler Arm (S/N: 2016903714 & Above) Parts Diagram

IS2500Z Series 52" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

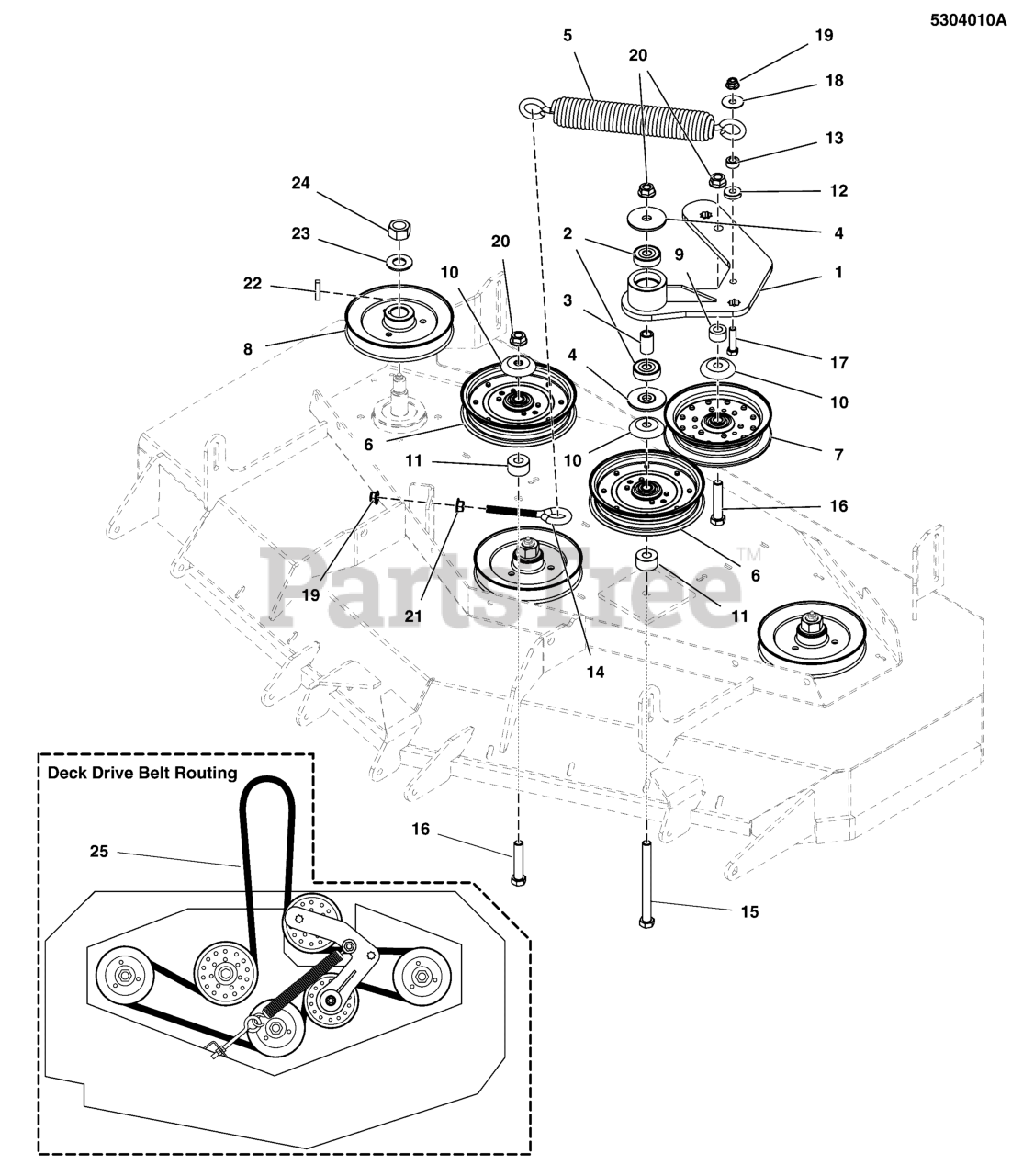

52" Mower Deck - Pulleys, Belt & Idler Arm (S/N: 2016903714 & Above) Parts Diagram

  • Title

1

Ferris 5413019A

WELD, IDLER ARM,CUTTER DECKS - BLK
(Superseded to 5413019AFS)

$130.99

$

Usually ships in 2-12 days

0

2

Ferris 5104383

BEARING, 6203-1/2", SEALED
(Superseded to 5104383YP)

$9.99

$

In Stock, only 3 left!

0

3

Ferris 5104456

SPACER, .51 X .75 X 1.22, PM CZ
(Superseded to 5104456YP)

$4.49

$

In Stock, only 2 left!

0

4

Ferris 5104379

SPACER, IDLER ARM, 1/2 X 2.25
(Superseded to 5104379YP)

$8.99

$

In Stock, only 2 left!

0

5

Ferris 5104166

SPRING, EXT, 1.5ODX12.25X.234WIRE BLK
(Superseded to 5104166YP)

$74.99

$

In Stock, Qty 5

0

6

Replace with: Pulley #5104717 & Debris Shield #5105145

$

$

Not available

7

USE 5104716 PULLEY + 5105145 SHIELD

$

$

Not available

8

Ferris 5101351

PULLEY, 5.926 OVER BALL
(Superseded to 5101351YP)

$69.99

$

In Stock, Qty 9

0

9

Ferris 5101162

SPACER, .52 X 1.00 X .56, PM, CZ
(Superseded to 5101162YP)

$7.49

$

In Stock, Qty 8

0

10

Ferris 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

11

Ferris 5047142

SPACER, .52 X 1.25 X .70, PM, CZ
(Superseded to 5047142SM)

$8.99

$

In Stock, Qty 11

0

12

Ferris 5044960

SPACER, .39 X 1.00 X .25, PM, CZ
(Superseded to 5044960SM)

$5.49

$

In Stock, Qty 7

0

13

Ferris 5044933

SPACER, .39 X .75 X .38, PM, CZ
(Superseded to 5044933SM)

$4.99

$

In Stock, only 2 left!

0

14

Ferris 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

15

Ferris 5025017X44

BOLT, 1/2-13 X 5-1/2 GD5 CZ
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 3 left!

0

16

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, Qty 9

0

17

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

19

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

20

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

21

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

22

Ferris 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

23

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

24

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

25

Ferris 5104063

BELT, 5V, 182.00"EL, LRG ARAMID, WRP, RC
(Superseded to 5104063FS)

$142.99

$

Usually ships in 2-12 days

0
