IS 2500Z (5901331) - Ferris IS2500Z Series 52" Zero-Turn Mower, 24hp Yanmar, Side-Discharge 52" Mower Deck - Puller Bars Parts Diagram

IS2500Z Series 52" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

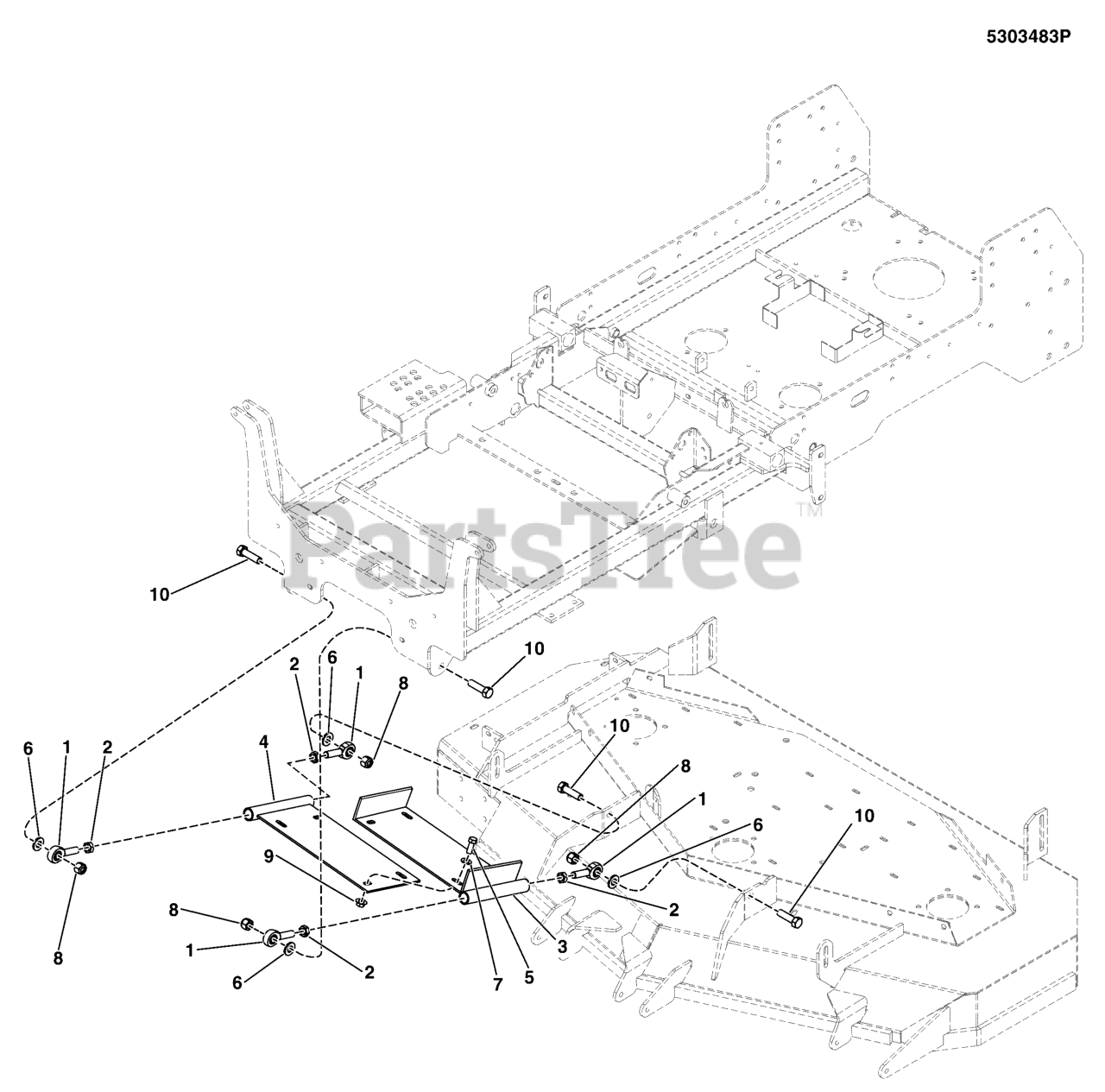

52" Mower Deck - Puller Bars Parts Diagram

  • Title
1

Ferris 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

$42.99

$

In Stock, only 2 left!

0

2

Ferris 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 19

0

3

Ferris 5411758A

WELD, DECK STABILIZER, LH, IS2500 - BLK

$64.99

$

Usually ships in 2-12 days

0

4

Ferris 5411760A

WELD, DECK STABILIZER, RH, IS2500 - BLK

$69.99

$

Usually ships in 2-12 days

0

5

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

6

Ferris 5025440

WASHER, 1/2" GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

7

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

9

Ferris 5025128

NUT, 3/8-16 HEX LG. SERR FLG
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

10

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0
