IS 2500Z (5901298) - Ferris IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge Seat Plate & Floor Group Parts Diagram

IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

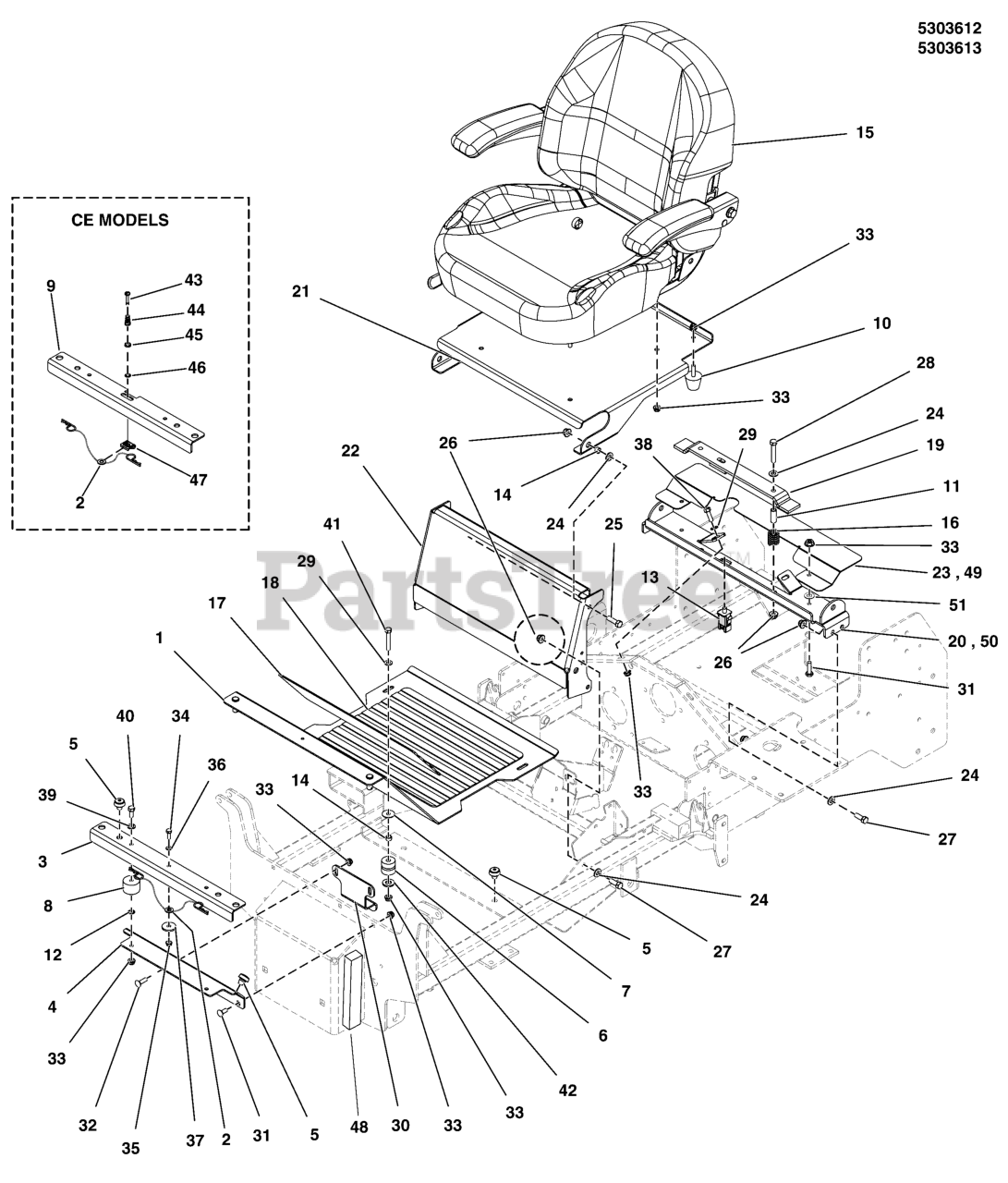

Seat Plate & Floor Group Parts Diagram

  • Title

1

Ferris 5409273B

WELD, FLOOR PLATE, IS2500, CE - RED
(Superseded to 5409273BFS)

$207.99

$

Usually ships in 2-12 days

0

2

Ferris 5103107

HAIRPIN COTTER LANYARD ASM, 8"

$

$

Currently unavailable

3

Ferris 5411884B

PLATE, FLOOR MOUNTING, TOP, DOM - RED

$

$

Currently unavailable

4

Ferris 5411885B

PLATE, FLOOR MOUNTING, BOTTOM - RED

$

$

Currently unavailable

5

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

6

Ferris 5023131

MOUNT, ISO,BOT,RAD 5000Z-DIESEL
(Superseded to 84003075)

$27.99

$

In Stock, only 1 left!

0

7

Ferris 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

8

Ferris 5023130

MOUNT,ISO,TOP,RAD 5000Z-DIESEL
(Superseded to 5023130FS)

$32.99

$

Usually ships in 2-12 days

0

9

Ferris 5411886B

PLATE, FLOOR MOUNTING, TOP, CE - RED

Note: (CE MODELS)

$

$

Currently unavailable

10

Ferris 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

11

Ferris 5041931

SPACER, .38 X .50 X 1.25, CZ
(Superseded to 5041931SM)

$5.99

$

Usually ships in 2-12 days

0

12

Ferris 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

13

Ferris 5022198

SWITCH, PLUNGER, NO/NO SNAP-IN
(Superseded to 5022198SM)

$15.99

$

In Stock, Qty 7

0

14

Ferris 5041930

SPACER, .38 X .50 X .27, CZ
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

15

Ferris 5103354

SEAT, 2012
(Superseded to 5104681YP)

$731.99

$

Usually ships in 2-12 days

0

16

Ferris 5103070

SPRING COMP .76IDX1.3LGX.105WIRE BLACK
(Superseded to 5103070YP)

$9.99

$

Usually ships in 2-12 days

0

17

Ferris 5101007

SAFETY WALK, FLOOR REST, 17.13 X 6.00
(Superseded to 5101007SM)

$32.99

$

Usually ships in 2-12 days

0

18

Ferris 5101013

SAFETY WALK, 11.50 X 15.00
(Superseded to 5101013SM)

$30.99

$

Usually ships in 2-12 days

0

19

Ferris 5404894B

WELD, SEAT SWITCH, IS2500Z -RED
(Superseded to 5404894BFS)

$35.99

$

Usually ships in 2-12 days

0

20

Ferris 5405031B

WELD, SEAT SUPPORT - RED

Note: (S/N: 2016811910 & Below)

$83.99

$

Usually ships in 2-12 days

0

21

Ferris 5407295B

PLATE, SEAT SUPPORT IS2500Z - RED

$

$

Currently unavailable

22

Ferris 5407296B

SEAT SUPPORT - RED
(Superseded to 5407296BFS)

$118.99

$

Usually ships in 2-12 days

0

23

Ferris 5404943B

GUARD, HYDRO BELT, IS2500 - RED

Note: (S/N: 2016811910 & Below)

$29.99

$

Usually ships in 2-12 days

0

24

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 1960032

SCREW HEX HD 3/8-16X1.250 .141TH HD G5
(Superseded to 1960032SM)

$5.49

$

In Stock, only 1 left!

0

26

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

27

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

28

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

29

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

30

Ferris 5409265B

RETAINER, BATTERY - RED

$

$

Currently unavailable

31

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

32

Ferris 5025145X8

CARRIAGE BOLT 5/16-18 X 1"
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

33

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

34

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

35

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

36

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

37

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

38

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

39

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

40

Ferris 5025011X5

BOLT, 5/16-18 X 5/8 GD5 YZ
(Superseded to 5025011X5YP)

$3.49

$

Usually ships in 2-12 days

0

41

Ferris 5025011X16

BOLT, 5/16-18 X 2, GD5
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

42

Ferris 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

43

Ferris 5025572

DZUS, 1/4 TURN FASTENER, D8Z29MM

Note: (CE MODELS)

$8.49

$

Usually ships in 2-12 days

0

44

Ferris 5025573

DZUS, EJECTOR SPRING
(Superseded to 5025573FS)

Note: (CE MODELS)

$2.99

$

Usually ships in 2-12 days

0

45

Ferris 5025574

DZUS, CUPPED WASHER
(Superseded to 5025574FS)

Note: (CE MODELS)

$3.99

$

Usually ships in 2-12 days

0

46

Ferris 5025576

DZUS, RECEPTACLE, CLIP-ON, D8
(Superseded to 5025576FS)

Note: (CE MODELS)

$6.99

$

Usually ships in 2-12 days

0

47

Ferris 5025577

DZUS, RETAINER PUSH-ON, SS
(Superseded to 5025577FS)

Note: (CE MODELS)

$2.99

$

Usually ships in 2-12 days

0

48

Ferris 5102753X8P5

FOAM, 1/2 X 1 X 8.50 LONG
(Superseded to 5102753X8P5YP)

Note: (S/N: 2015714694 & Below)

$5.99

$

Usually ships in 2-12 days

0

48

Ferris 5100810

PAD, RUBBER MOUNT
(Superseded to 5100810YP)

Note: (S/N: 2015714695 & Above)

$8.99

$

Usually ships in 2-12 days

0

49

Ferris 5412732B

GUARD, HYDRO BELT - RED

Note: (S/N: 2016811911 & Above)

$

$

Currently unavailable

50

Ferris 5412889B

SUPPORT, SEAT - RED

Note: (S/N: 2016811911 & Above)

$

$

Currently unavailable

51

Ferris 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0
