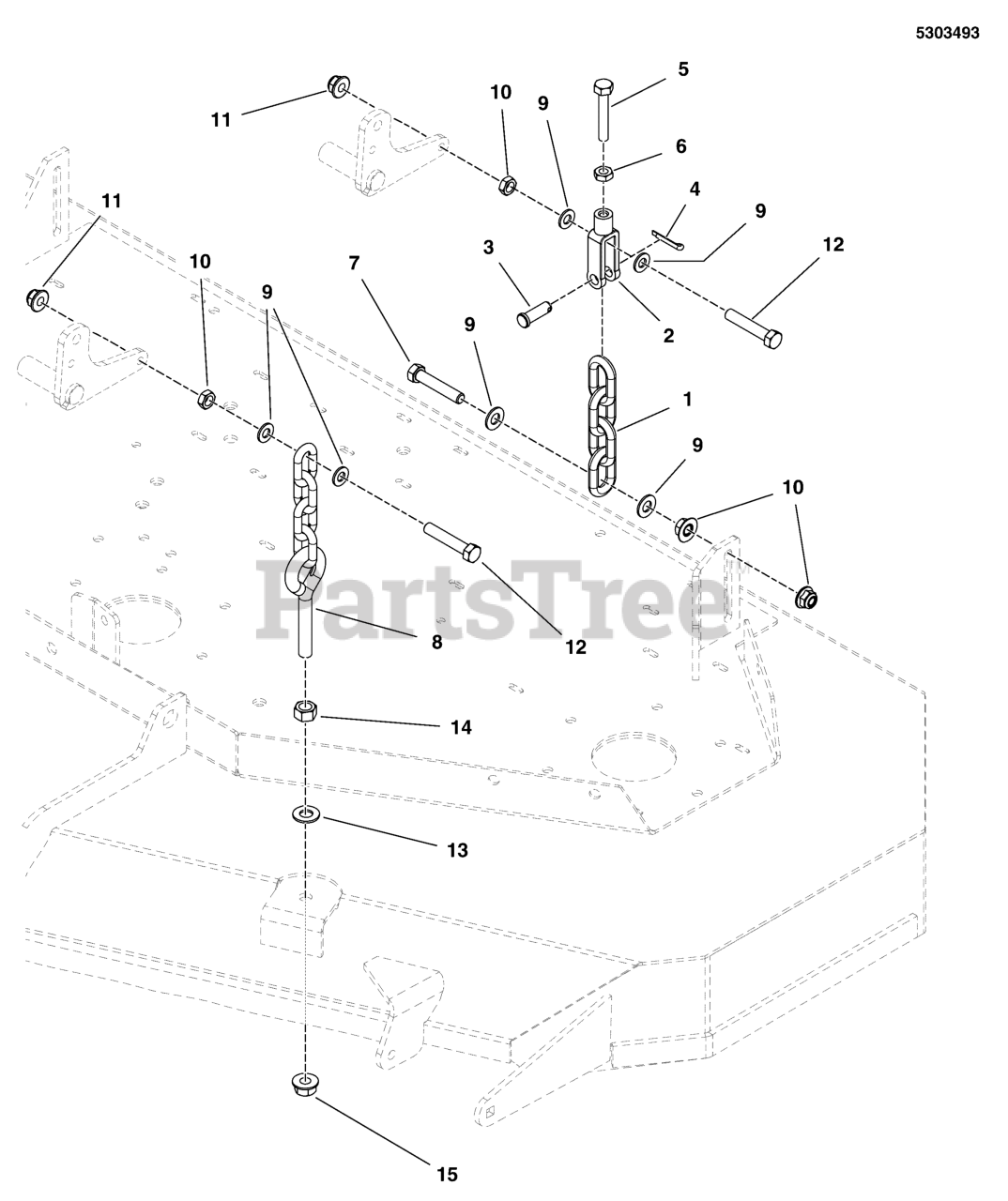

IS 2500Z (5901298) - Ferris IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge 61" Mower Deck - Hanger Chains Parts Diagram

IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

61" Mower Deck - Hanger Chains Parts Diagram

  • Title

1

Ferris 5050878X4

CHAIN, 5/16" GD30, 4 LINKS
(Superseded to 5050878X4YP)

$9.99

$

Usually ships in 2-12 days

0

2

Ferris 5100375

CLEVIS, 5/16-18, 3/8 PIN HOLE, CLR ZINC
(Superseded to 5100375YP)

$20.99

$

In Stock, only 1 left!

0

3

Ferris 5025214X9

PIN, CLEVIS, 3/8 X 1-1/8, PLATED
(Superseded to 5025214X9SM)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5025203X6

PIN, COTTER, 1/8 X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 2 left!

0

5

Ferris 5025055X16

BOLT, 5/16-18 X 2 GD5 TFL
(Superseded to 5025055X16SM)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025388

NUT, 5/16-18 HEX JAM
(Superseded to 5025388YP)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

8

Ferris 5104303

HANGER, FRONT DECK - 4 LINK, 5.5" EB
(Superseded to 5104303YP)

$53.99

$

Usually ships in 2-12 days

0

9

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

11

Ferris 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

12

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

13

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

14

Ferris 5025038

NUT, 1/2-13 HEX, YZ
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

15

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0
